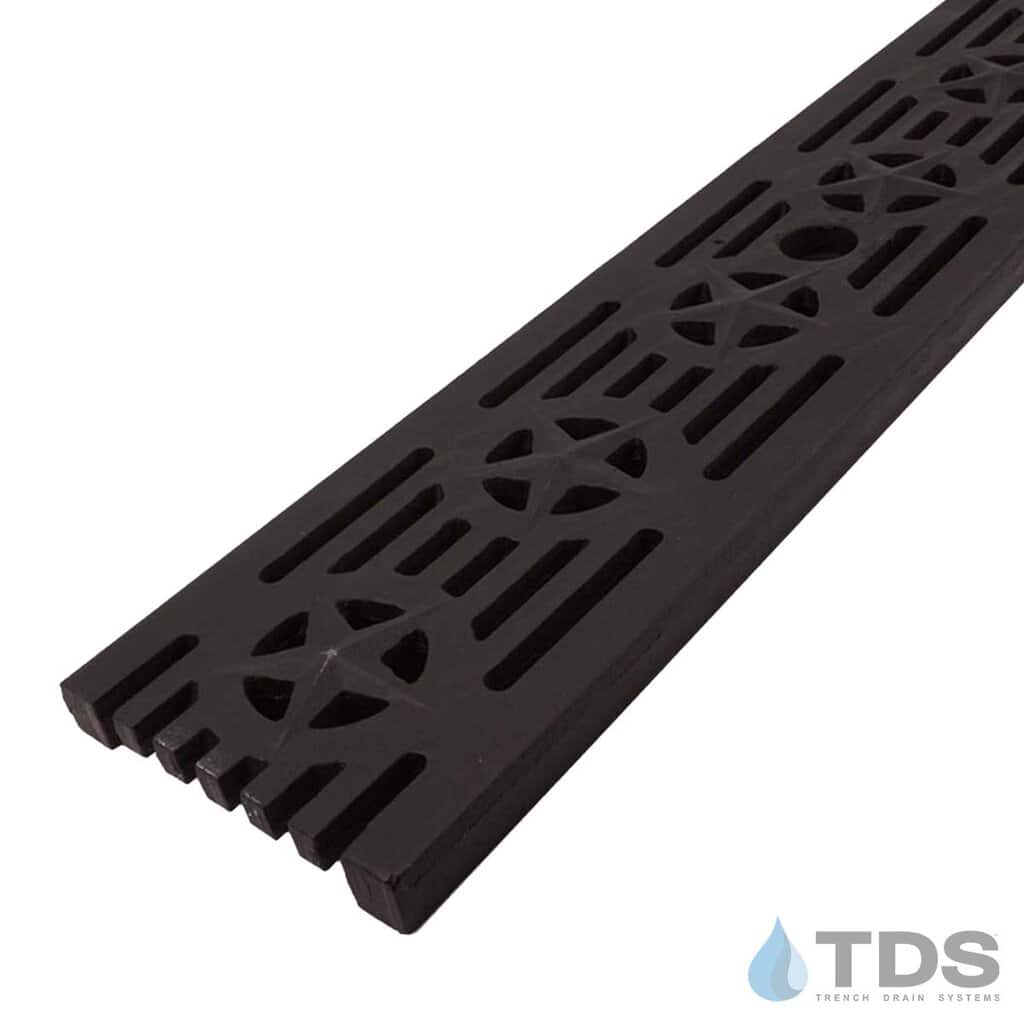

5.1″ x 24″ Patriot Grate Ductile Iron DG0692 for Polycast

$47.09 $42.38

Americana touch for your drainage project.

Description

Made in USAThe stars and stripes pattern of the Patriot grate gives a patriotic flair to your trench drain system.  Patriot is a ductile cast iron grate for the polymer concrete Polycast 500, 600, and 700 Series trench drain systems by Hubbell and the SS600 stainless steel drainage system by Trench Drain Systems. Part # DG0692. Now produced by Trench Drain Systems, the Patriot grate is ADA Compliant and Made in USA!

Load Class C.  Painted black.

  • Fire Houses
  • Government buildings
  • Veterans Memorials
  • City Courtyard / Streetscape
  • Americana restaurant patio

Includes hole for DA0642B hold-down device (not included).

(There may be slight dimension variances on cast iron products)

WIDTH 5-3/16″
LENGTH 23-3/4″
HEIGHT 3/4″
MATERIAL Ductile Iron
OPEN AREA 13 sq.in./Lin ft.
INFLOW CAPACITY ~
ANSI RATING ~
LOAD RATING CLASS C
H-20 No
FAA No
ADA Comp. Yes
Heel Proof No

Polycast600 SS edging DG0692 Patriot grate trench drainage

Looking for a complete Polycast 600 Series Drainage System? We will be happy to get you a quote including shipping cost. Send us a note through our contact page or give us a call – 610-638-1221.

SHIPPING
On larger orders, the store may be unable to calculate an accurate shipping price. We will be happy to get you a shipping cost. Just send us a note through our contact page or give us a call – 610-638-1221.

Patriot Grate , DG0692, polycast grate

Additional information

Weight 18 lbs
Dimensions 23.75 x 5.2 x .75 in
