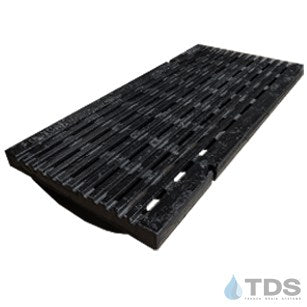

POLYCAST® DG0685HD Transverse Slotted Ductile Iron Catch Basin Grate | Load Class E
POLYCAST® DG0685HD Transverse Slotted Ductile Iron Catch Basin Grate | Load Class E
Additional Information
- Grate Width: 12" x 24" for Hubbell Polycast
- Grate Height: 1.125"
- Weight: 50.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Channel Material: Polymer Concrete - Polyester
- Application: Residential, General Purpose Drainage - External, Transportation
Description
Large project? Request a Quote
This heavy-duty transverse slotted ductile iron grate is ADA compliant and has two (2) bolt-down holes (bolts not included).
For use with POLYCAST®651/751 Catch Basins
Actual Dimensions: 10-3/4″ x 22-3/4″ x 1-1/8″ (not including the reinforcement fins on the bottom of the grate)
Open Area: 85 sq. in./linear foot. ASTM A536, Class 65-45-12, Slot Size: 0.32″ wide
Meets Load Class E rating requirements, ideal for any high-traffic, heavy load applications such as:
Made in the USA
