TDS DG0669H Class D Stainless Steel Bar 5.25" x 24" Grate for POLYCAST®
TDS DG0669H Class D Stainless Steel Bar 5.25" x 24" Grate for POLYCAST®
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 9.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Actual Dimensions: 0.75″ [19mm] x 5.06″ [129mm] x 23.81″ [605mm]
Large project? Request a Quote

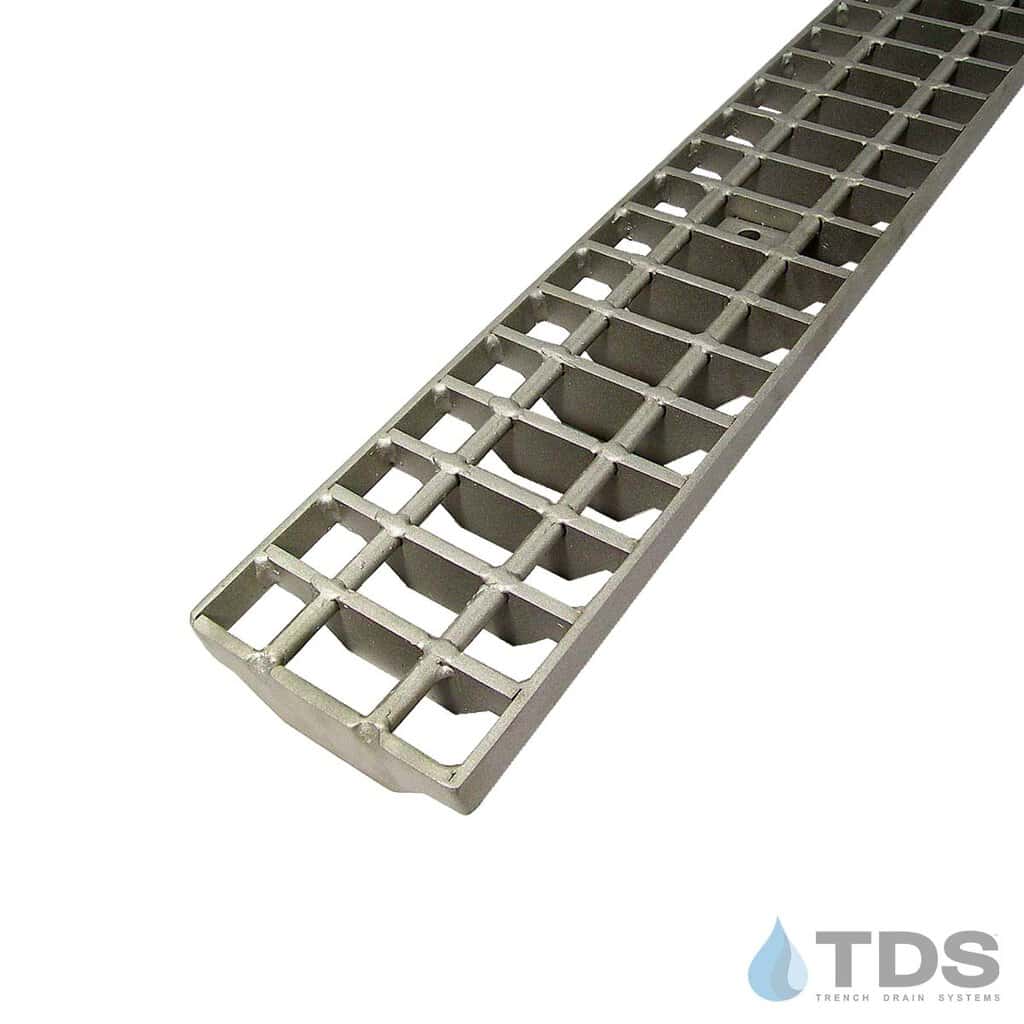

Stainless steel bar grate designed to handle fork truck traffic. Heavy Duty welded 1/4" 304 stainless steel bar stock with 1-1/8" openings. Ideal for chemical plants, breweries, wineries, and food warehouses. Fits TDS SS600, POLYCAST 500 (with frame), 600 and 700 series polymer concrete trench drain and others.
Individually rated at Load Class D, with appropriate frame rated at Class E or Class F.
Locking device not included - see part number DA0642BS
