6903M2 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
6903M2 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
Additional Information
- Grate Width: 12.00"
- Grate Height: 2.00"
- Weight: 80.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Channel Material: Cast in Place / EPS Foam, Form Your Own OR Site Built
- Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
- Application: Residential, General Purpose Drainage - External, Transportation
Description
Heavy Duty Grate
Class 35B

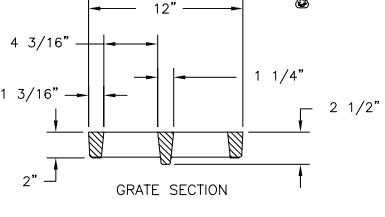

Cast iron heavy-duty grate. Grate openings are 1-3/16" wide. Bottom "leveling feet" can be ground for proper height adjustment. Each individual grate weighs 50 lbs each.
Measures: 12″ x 24″ x 2"
Class 35B
Made in the USA
Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
