Bronze Age TARDIS 3" Wide Grate for NDS Mini Channel
Bronze Age TARDIS 3" Wide Grate for NDS Mini Channel
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 1.42 lb
- Grate Material / Color / Finish: Bronze - Brushed, Aluminum, Bronze - Natural, Ductile/Cast Iron - Baked on Oil Finish, Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Sand, Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

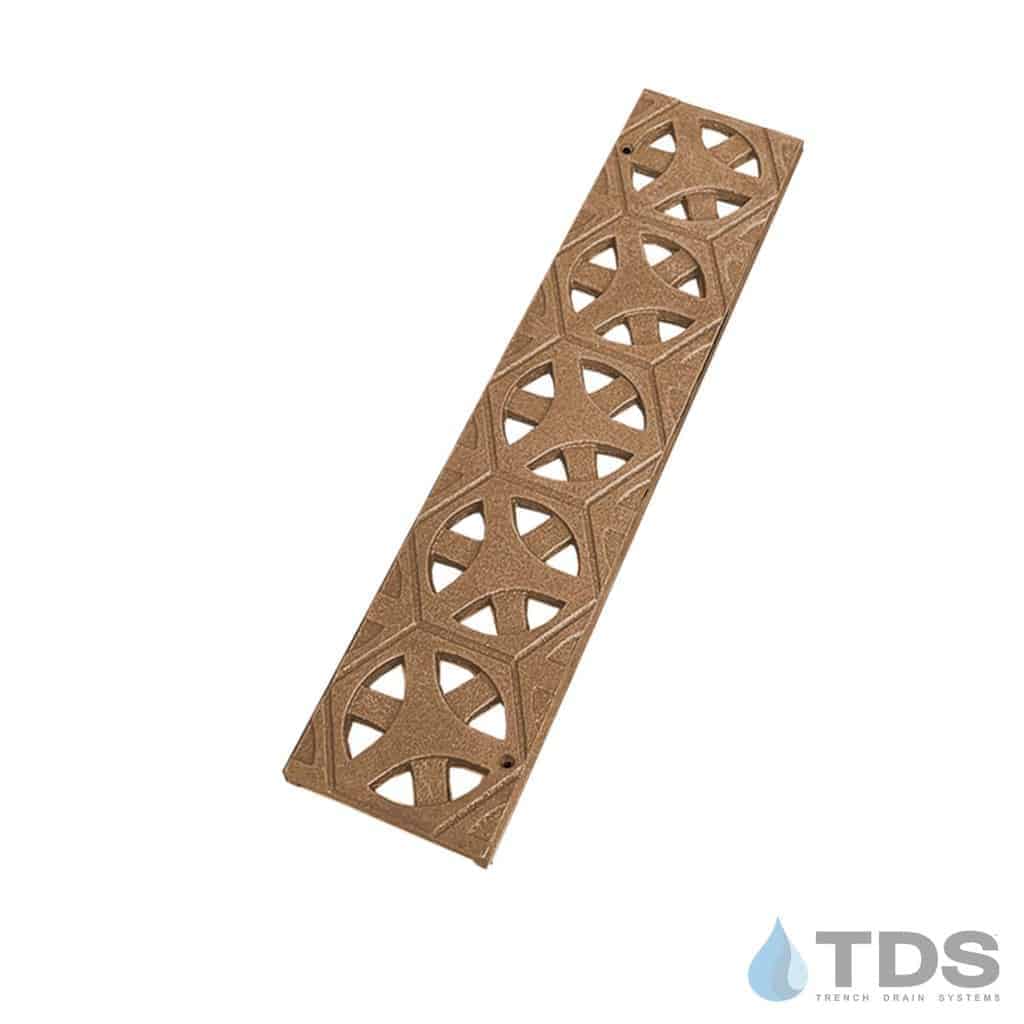

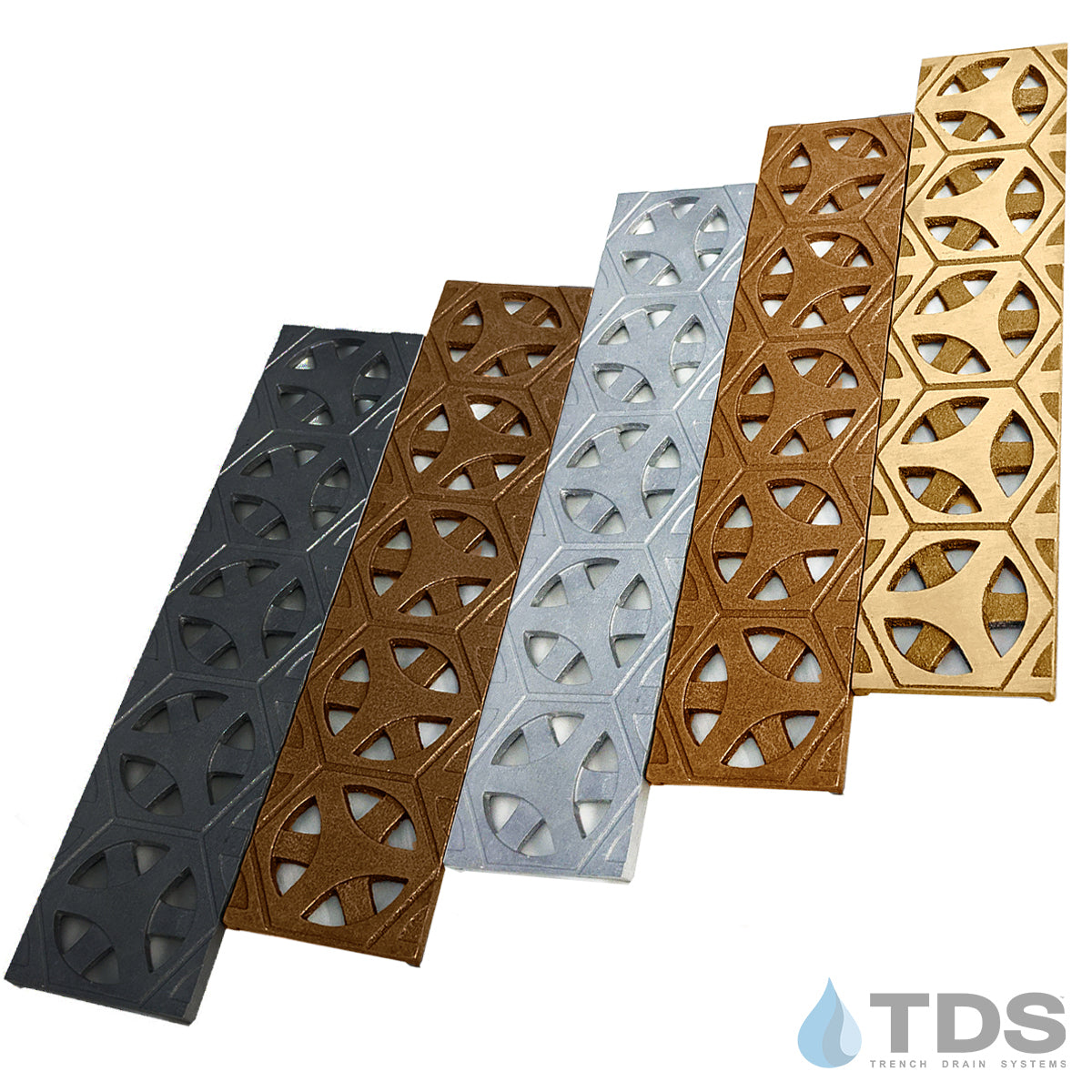

Decorative Bronze Age™ grates in the Tardis pattern are made to fit your NDS® 3″ Mini-Channel trench drain. A Trench Drain Systems exclusive product, these unique grates are available in bronze (natural or brushed), aluminum, raw-ductile iron, or with a baked-on oil finish. The
Tardis grate features a futuristic design with a woven hexagonal pattern. The inspiration behind this look is based on the interior of the T.A.R.D.I.S. used by the 13th Doctor in BBC’s long-running series, Dr. Who.
This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.
Each grate includes 2 holes for securing to the channel using NDS-529B fasteners (sold separately).

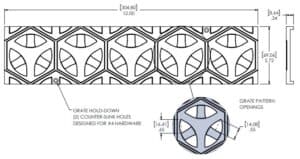

Tardis Grate Specification Sheet | Class A or B
