Bronze Age DG0620 CATHEDRAL - Galvanized 5.25" Wide Grate
Bronze Age DG0620 CATHEDRAL - Galvanized 5.25" Wide Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 7.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: TDS (Trench Drain Systems)
- System: POLYCAST 500, POLYCAST 600
- Grate Load Class: Class A
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, Decorative
Description
Exclusive TDS Pattern
Made in the USA
Fits POLYCAST 500 and POLYCAST 600 systems
Large project? Request a Quote

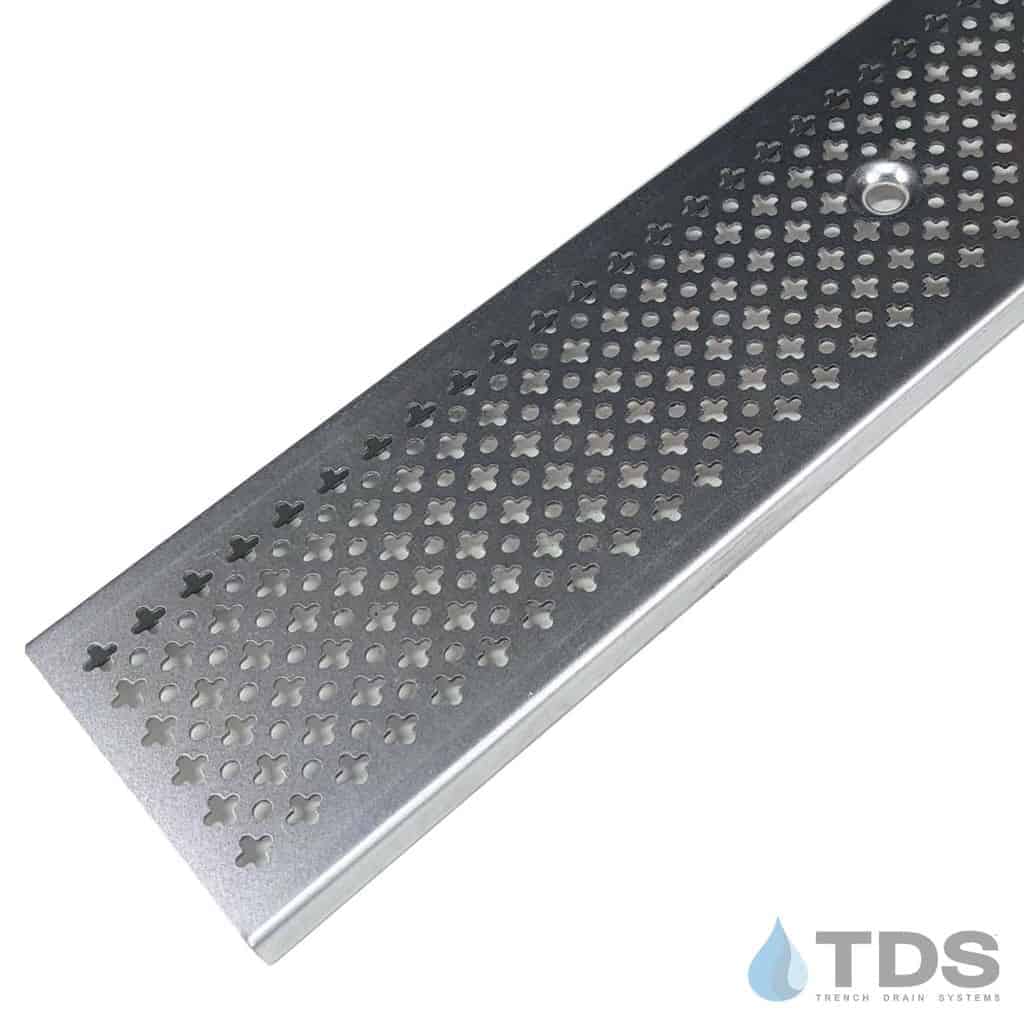

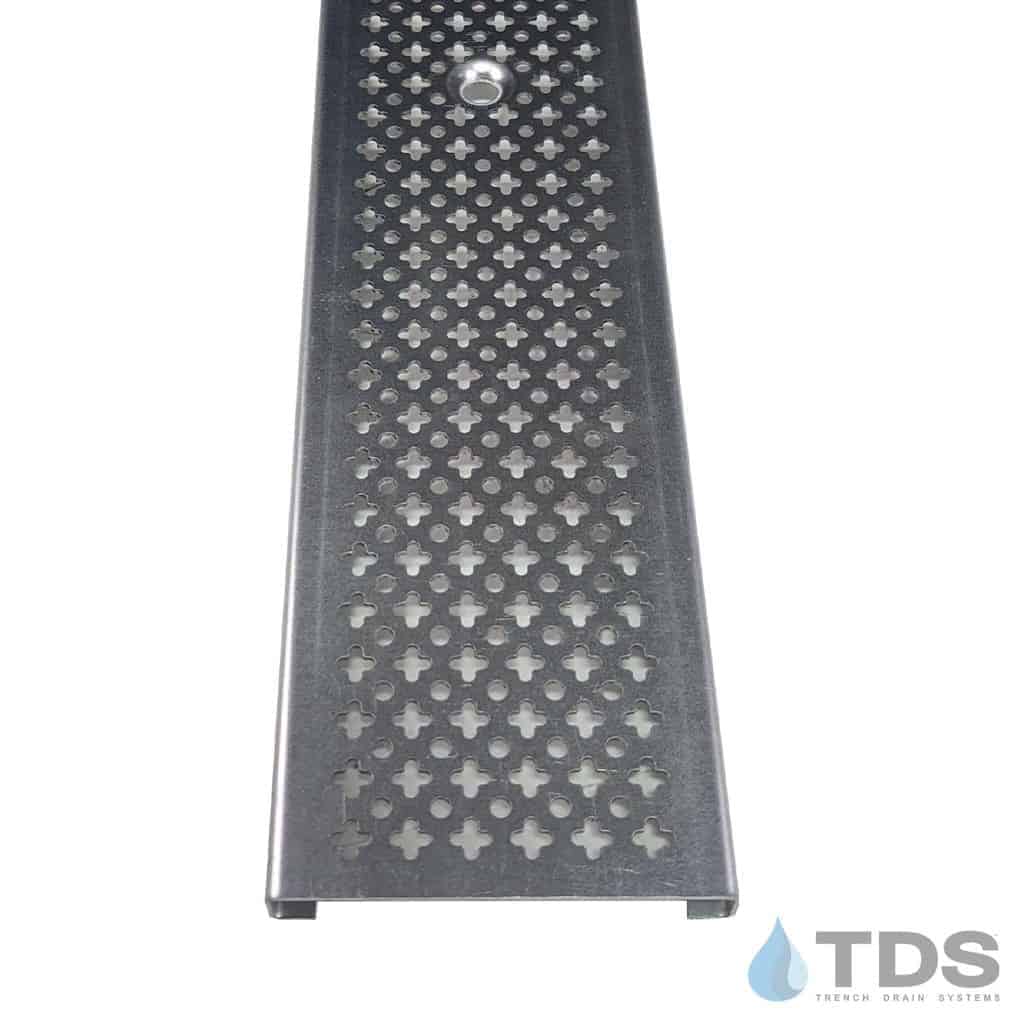

The galvanized steel decorative DG0620 Cathedral perforated light-duty grate is made in the USA and designed to fit the POLYCAST 500 and POLYCAST 600 drainage systems.
ADA-compliant and heel-friendly pattern.
Grate measures 5.19"W x 0.75"H, with length options of 24" and 48". The Cathedral perforated grate features an attractive and exclusive TDS pattern and is rated as load class A for light loads. These grates are perfect for any low-traffic applications such as pedestrians, bicycles, and golf carts.
Specification Sheet for DG0620
Locking devices not included:
- For POLYCAST® 500 locking device DA0542, click here
- For POLYCAST® 600 locking device DA0642, click here
