Bronze Age DG0631 SLOT 304L Stainless Steel 5.25" x 48" (Nominal) Grate | Class A
Bronze Age DG0631 SLOT 304L Stainless Steel 5.25" x 48" (Nominal) Grate | Class A
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 7.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: TDS (Trench Drain Systems)
- System: POLYCAST 500, POLYCAST 600, SS0600
- Grate Load Class: Class A
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, Decorative
Description
Exclusive TDS Pattern
Made in the USA
ADA-compliant and heel-friendly
Fits POLYCAST 500, POLYCAST 600 and SS600 systems
Large project? Request a Quote

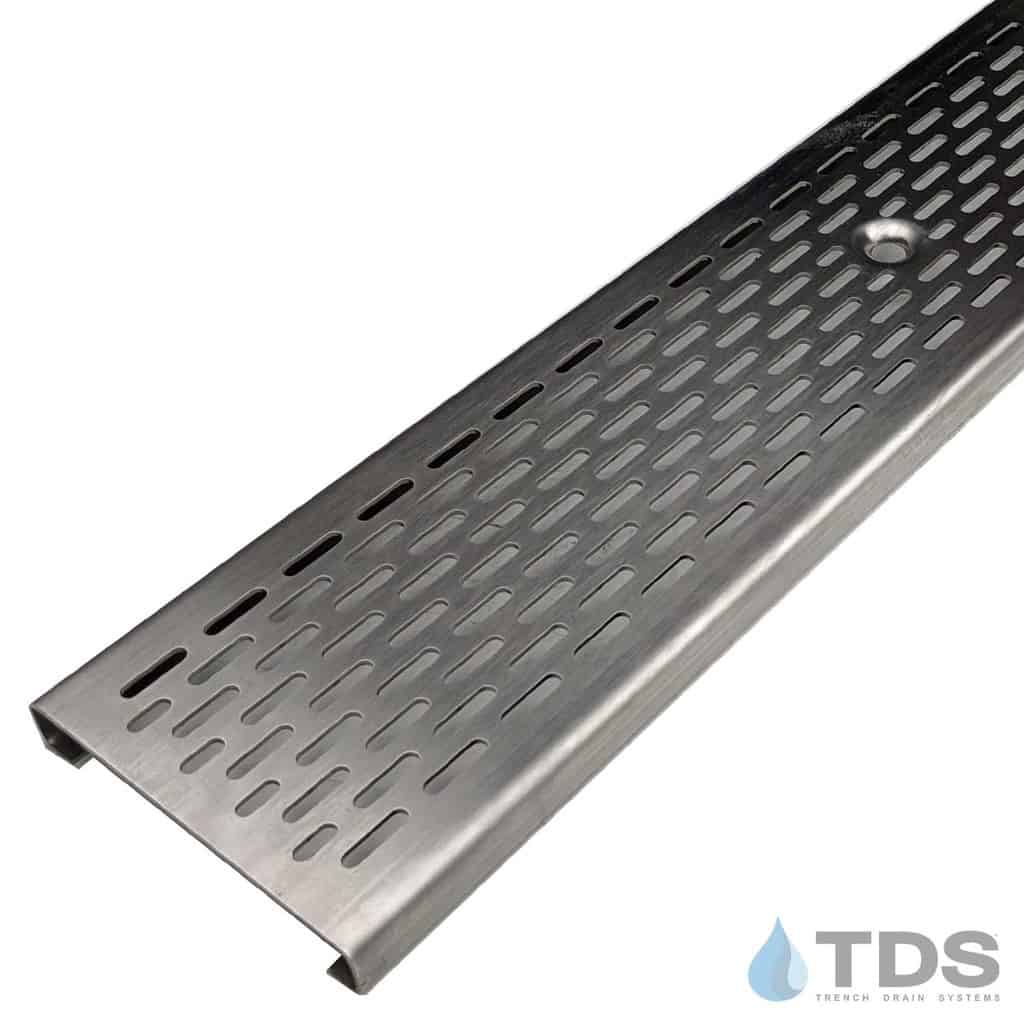

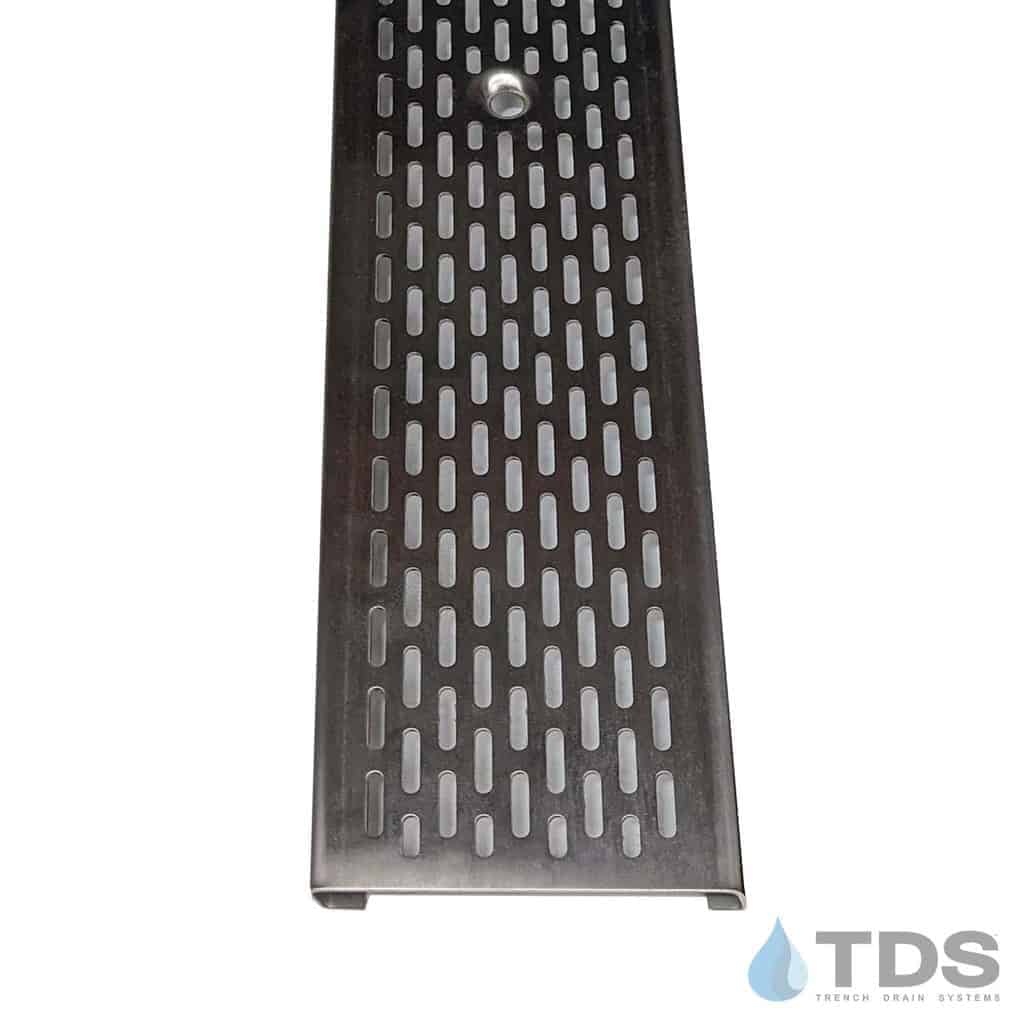

The decorative DG0631 slotted light-duty grate is made in the USA and designed to fit the POLYCAST 500, POLYCAST 600 and TDS SS600 drainage systems. The marine grade 304L stainless steel is ideal for coastal regions, marine applications, saltwater pools or oceanfront sidewalks and patios.
ADA-compliant and heel-friendly pattern.
Grate measures 5.19"W x 0.75"H, with length options of 24" and 48". The slotted grate features an attractive and exclusive TDS transverse slotted pattern and is rated as load class A for light loads. These grates are perfect for any low-traffic applications such as pedestrians, bicycles and golf carts.
Specification Sheet for DG0631
Locking devices not included:
- For POLYCAST® 500 locking device DA0542S, click here
- For POLYCAST® 600 locking device DA0642S, click here
- For TDS SS600 locking device SS0642S, click here
