Bronze Age FOAM - 4" Wide Grate for NDS Spee-D
Bronze Age FOAM - 4" Wide Grate for NDS Spee-D
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.13" for NDS Spee-D
- Grate Height: 0.75"
- Weight: 5.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: TDS (Trench Drain Systems)
- System: Spee-D
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

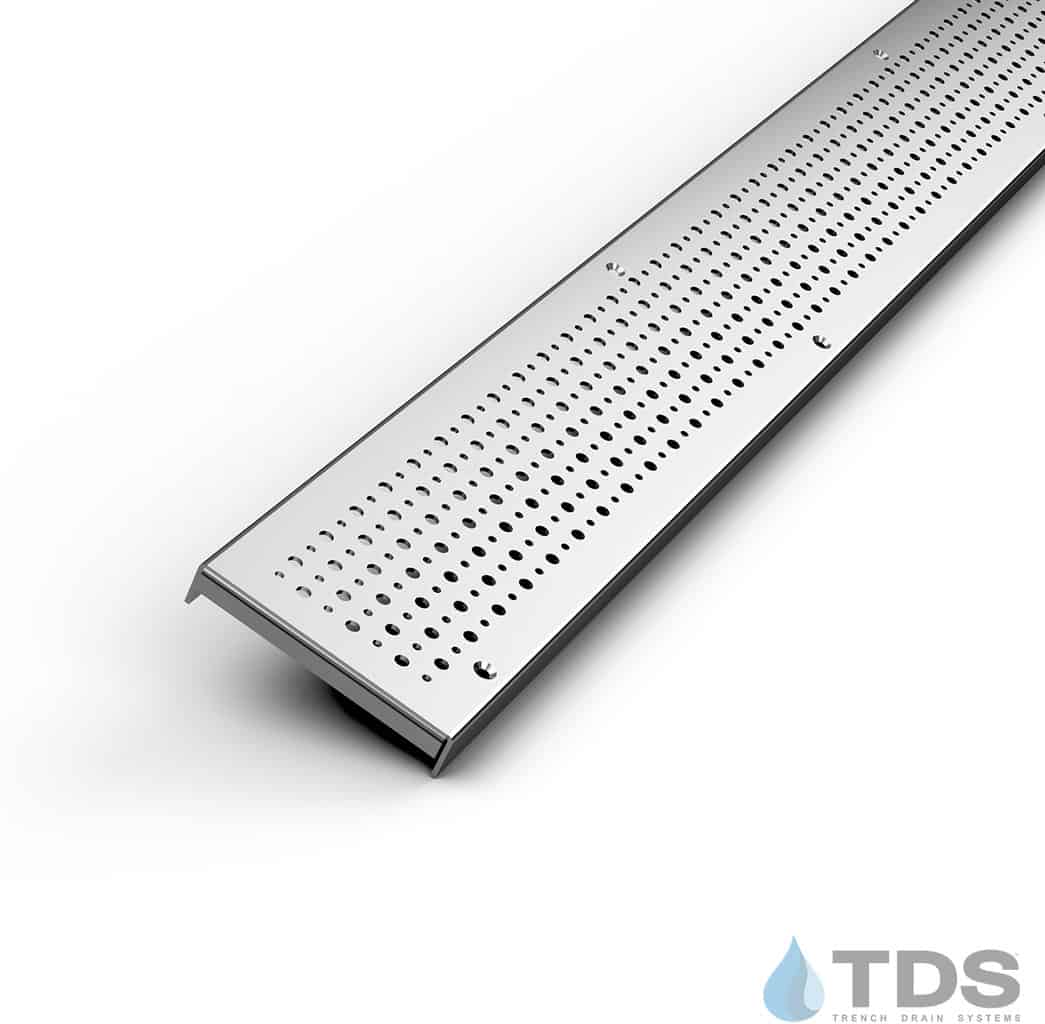

The decorative TDS-FOAM-0448-S Foam grate is designed to fit the NDS Spee-D® Channel trench drain system. This 4.09" wide grate offers a very clean look with lasting beauty. The Foam grate features an attractive and exclusive TDS pattern and is rated as Load Class A for lighter loads. These grates are perfect for pedestrians, bicycles, and golf carts. Made in the USA.
The grate measures 4.09"W x 0.75"H, with length options of 24" and 48". It is ADA-compliant and heel-friendly.
Designed to fit: NDS Spee-D® Channel
Specification Sheet for TDS-FOAM-0448-S
Requires (4) per 24" or (8) per 48" Locking devices (Sold Separately): NDS229
- 8-32 x 1″ stainless steel
Caution: Avoid using 304 stainless steel near saltwater pools, coastal, or marine areas due to increased susceptibility to corrosion.
Marine-grade 316L is available. Request a quote now.
Large project? Request a Quote
