Bronze Age SQ DECO - 316L Stainless 3" Wide Grate for NDS Mini Channel & TDS Max-Mini
Bronze Age SQ DECO - 316L Stainless 3" Wide Grate for NDS Mini Channel & TDS Max-Mini
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 1.6 lb
- Grate Material / Color / Finish: Stainless Steel 316L
- Manufacturer: TDS (Trench Drain Systems)
- System: MAX Mini, Mini Channel
- Grate Load Class: Class A, Class B
- Grate Pattern: Square Deco
- Channel Material: Plastic - (PP, HDPE, PE) - Sand, Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational
Description
Salt Water Grade

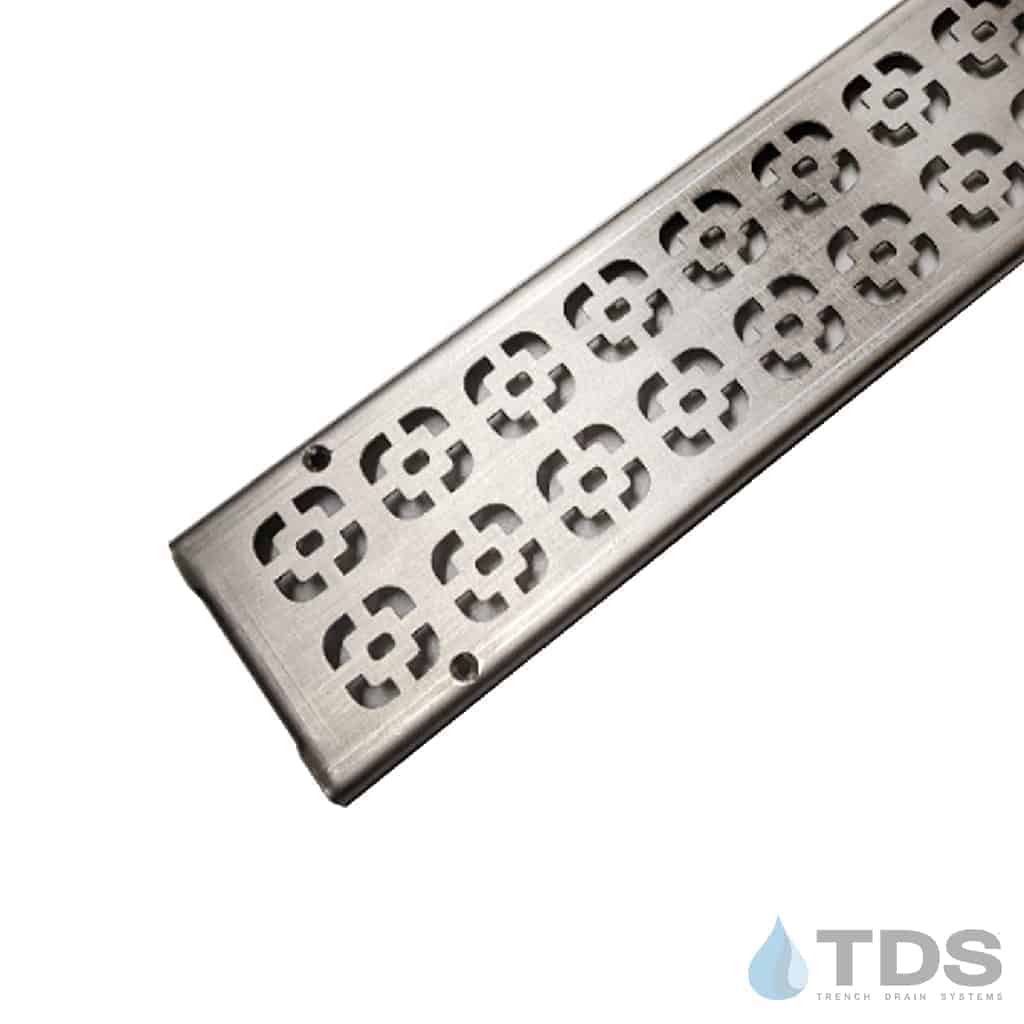

As part of the Bronze Age grate collection, this 316 stainless steel cathedral grate pattern is an exclusive product of TDS. The marine grade 316L stainless steel material withstands corrosive environments and saltwater applications, such as saltwater pools, oceanfront sidewalks and patios.
Compatible with NDS Mini Channels or consider Trench Drain Systems' MAX mini drainage system with decorative stainless steel grates. They are a low-maintenance option that provides a high-end look to pool and patio areas.
It is also ideal for light pneumatic tires traffic, pedestrian applications, sidewalks, and residential parking.
Grates can be secured in place with 8 fasteners, NDS529 (not included).
This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.

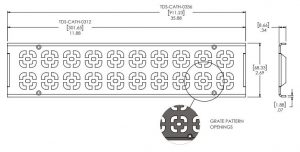

Deco Grate Specification Sheet | Class A or B
Actual Dimensions: 35.88" x 2.69" x 0.34"
