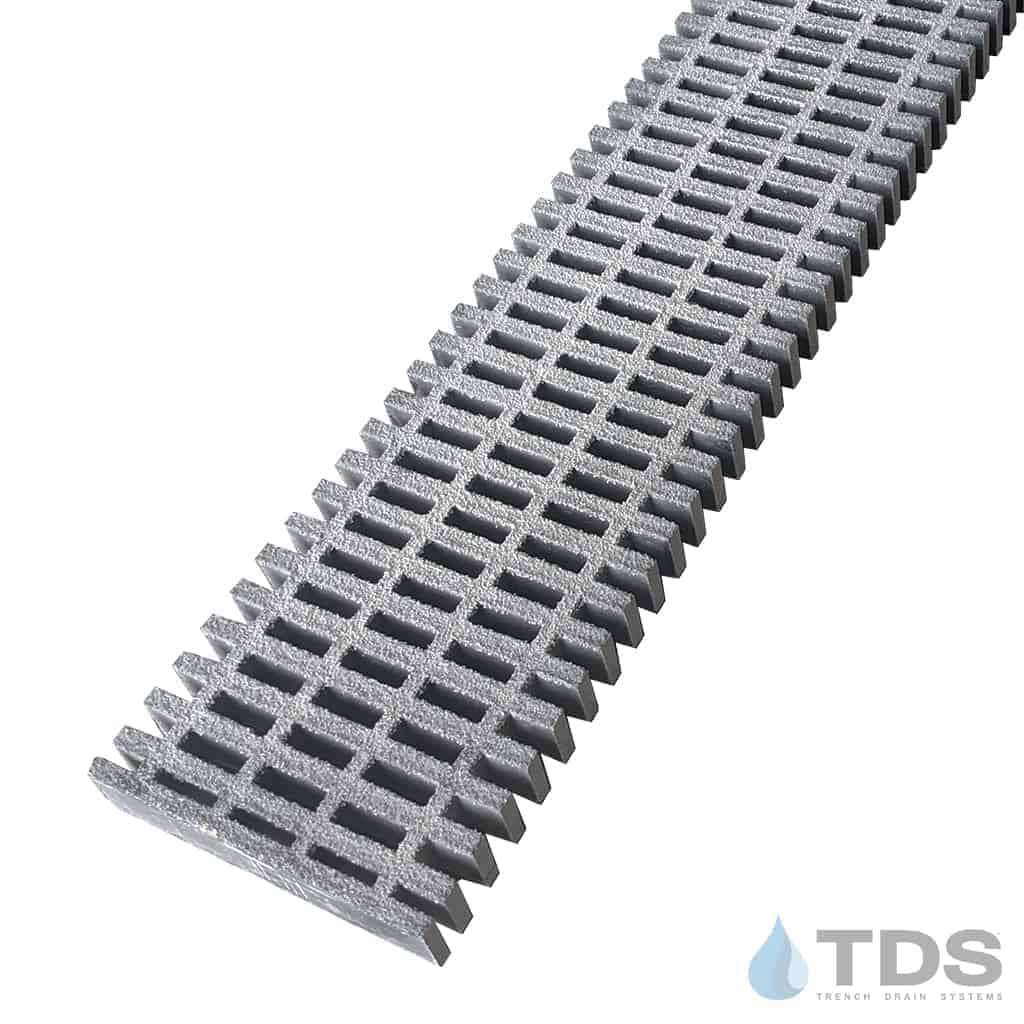

FG-HLC-0848 Mesh Fiberglass 8"X48" Grate Load Class C
FG-HLC-0848 Mesh Fiberglass 8"X48" Grate Load Class C
Additional Information
- Grate Width: 8.33"
- Grate Height: 1.50"
- Weight: 19.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class C
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Fiberglass High Load Capacity (HLC) grate
Actual grate dimensions: 8.33″ x 48″ x 1.5″
Large project? Request a Quote
The FG-HLC-0848 FRP grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 8.33 inches. When properly installed, has a Load Class C traffic rating. Fiberglass grates can be purchased as replacement grates or installed as part of a frame and rail system. See below for install instructions.
FG-HLC-0848 Specification Sheet
FG-734891 Locking devices sold separately - Requires 1/4-20 hardware (not included)
Fiberglass Kit Installation Guide
Benefits of Fiberglass HLC Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating
- Grate open area of 48%
- Grate openings 0.57" x 1.67" (1"x2")
- Grate depth 1.5"
- Made in the USA
