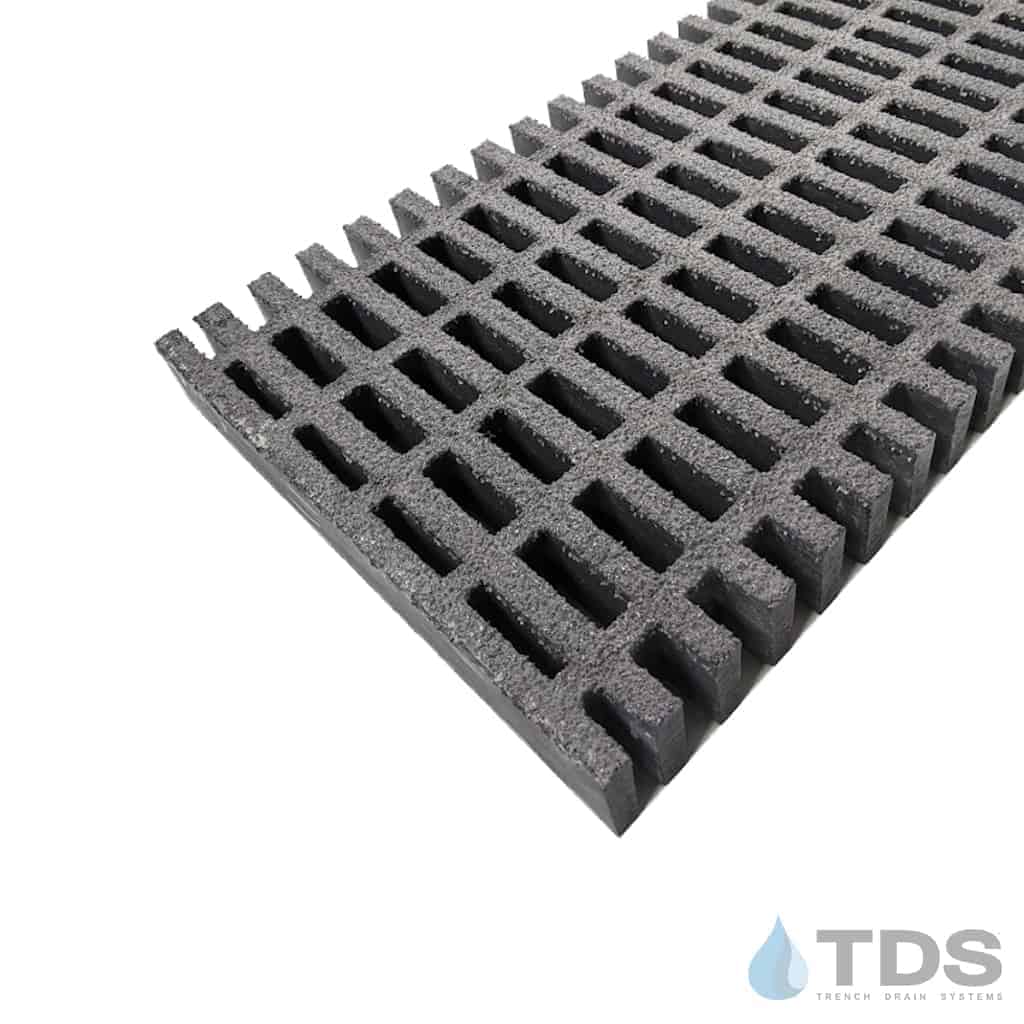

FG-HLC-1048 Mesh Fiberglass 10"X48" Grate Load Class C
FG-HLC-1048 Mesh Fiberglass 10"X48" Grate Load Class C
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 10.33"
- Grate Height: 1.50"
- Weight: 23.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class C
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Fiberglass High Load Capacity (HLC) grate
Actual grate dimensions: 10.33″ x 48″ x 1.5″
Large project? Request a Quote
The FG-HLC-1048 FRP grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 10.33 inches.
FG-HLC-1048 Specification Sheet
FG-734891 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)
Benefits of Fiberglass HLC Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating
- Grate open area of 48%
- Grate openings 0.57" x 1.67" (1"x2")
- Grate depth 1.5"
- Made in the USA
