FG-HLC-1248 Mesh Fiberglass 12"X48" Grate Load Class C

FG-HLC-1248 Mesh Fiberglass 12"X48" Grate Load Class C

Skip to product information
1 of 1

Trench Drain Grates

SKU:FG-HLC-1248

Regular price $543.21 USD
Regular price $543.21 USD Sale price $543.21 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 12 inch
  • Grate Thickness:
  • Product Type:
  • Grate Material / Color / Finish:
  • Manufacturer: TDS
  • System:
  • Grate Load Class: Class C
  • Grate Pattern:
  • Grate Pattern Style:
  • Channel Material:
  • Frame/Edging:
  • Application: Animal and Zoo, Chemical and Hygiene, Commercial, Driveway Drainage, Greenhouse, Industrial, Municipal, Patio, Pool & Spa, Poolside, Residential

Description

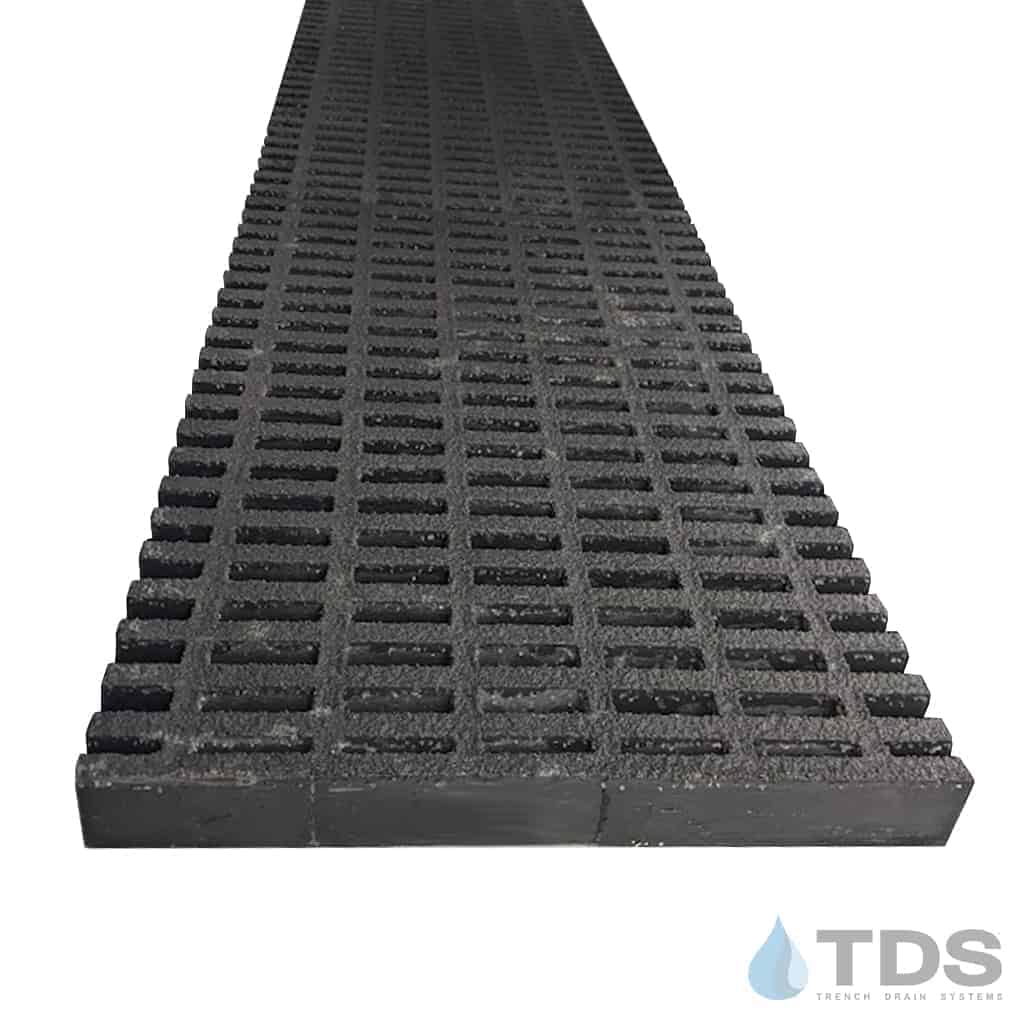

Fiberglass High Load Capacity (HLC) grate

Actual grate dimensions: 12.33″ x 48″ x 1.5″

Large project? Request a Quote

The FG-HLC-1248 FRP grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 12.33 inches. and 1.5" thick. This grate, when properly installed, has a Load Class C traffic rating. Fiberglass grates can be purchased as replacement grates or installed as part of a frame and rail system. See below for install instructions.

FG-HLC-1248 Specification Sheet

FG-734891 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)

Fiberglass Kit Installation Guide

Benefits of Fiberglass HLC Mesh Grate:

  • Corrosion resistance
  • Impact resistance
  • Non-slip grit traction layer
  • Lightweight
  • Nonconductive
  • Nonmagnetic
  • Load class C rating
  • Grate open area of 48%
  • Grate openings 0.57" x 1.67" (1"x2")
  • Grate depth 1.5"
  • Made in the USA
