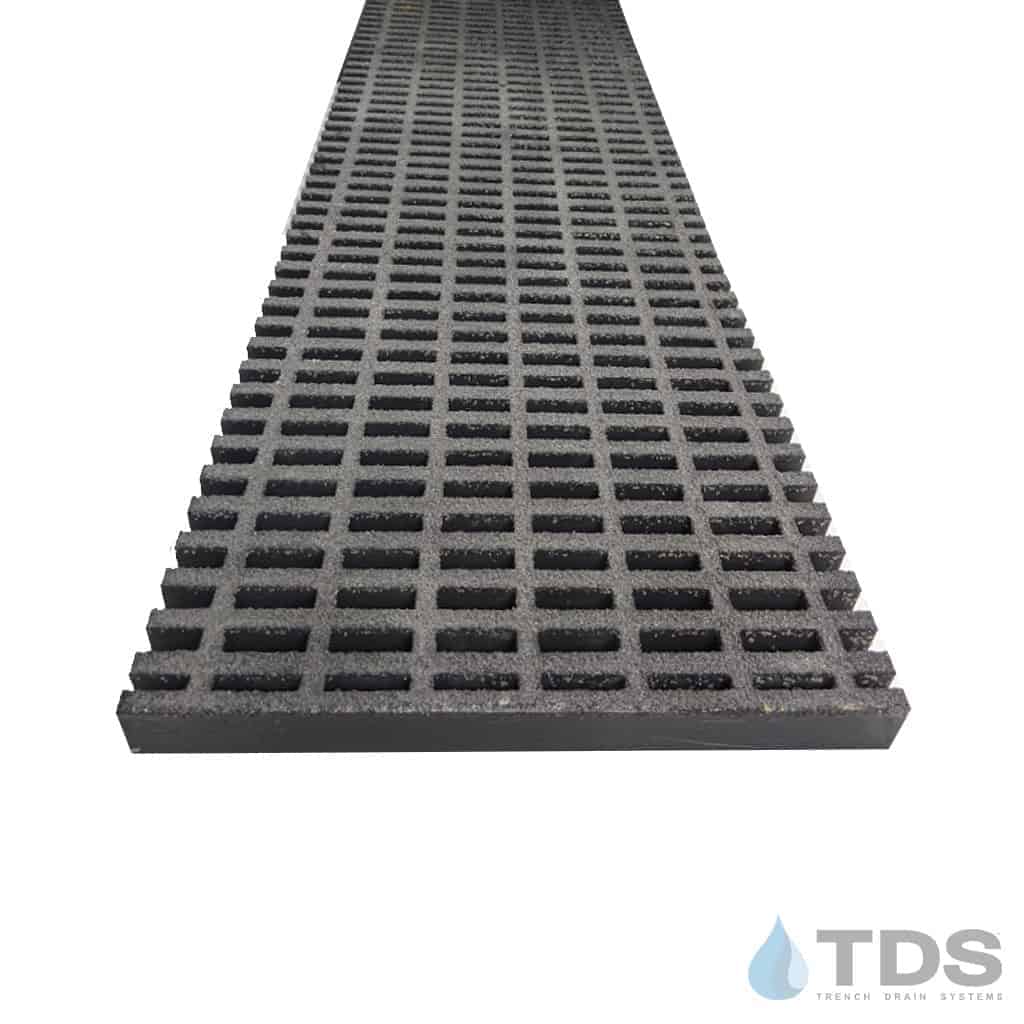

FG-HLC-1448 Mesh Fiberglass 14"X48" Grate Load Class C
FG-HLC-1448 Mesh Fiberglass 14"X48" Grate Load Class C
Additional Information
- Grate Width: 14.33"
- Grate Height: 1.50"
- Weight: 32.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class C
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Fiberglass High Load Capacity (HLC) grate
Actual grate dimensions: 14.33″ x 48″ x 1.5″
Large project? Request a Quote
The FG-HLC-1448 FRP grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 14.33 inches. When properly installed, has a load class C traffic rating. Fiberglass grates can be purchased as replacement grates or installed as part of a frame and rail system. See below for install instructions.
FG-HLC-1448 Specification Sheet
Fiberglass Kit Installation Guide
FG-734891 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)
Benefits of Fiberglass HLC Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating
- Grate open area of 48%
- Grate openings 0.57" x 1.67" (1"x2")
- Grate depth 1.5"
- Made in the USA
