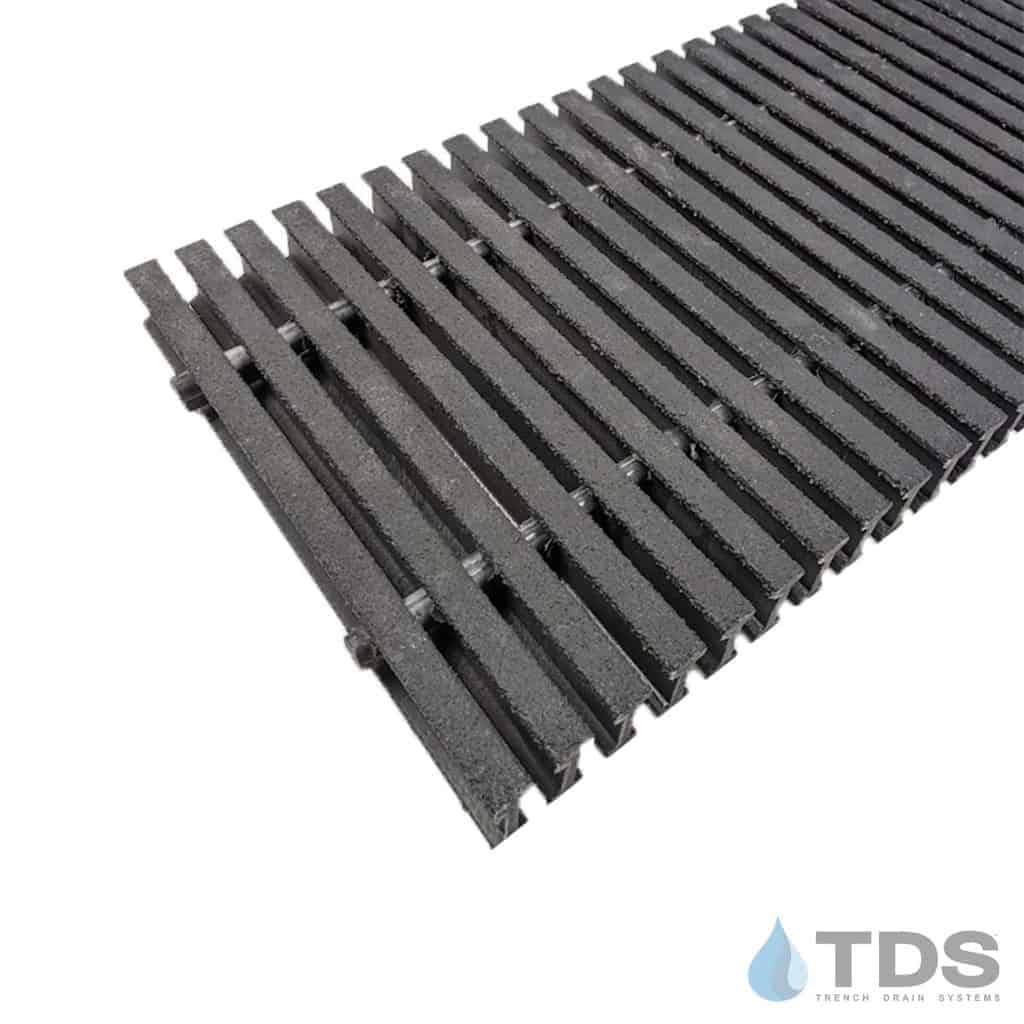

FG-I4015-1248 Fiberglass I-Bar Grate 12"X48"x1.5" Grate Load Class C

The FG-I4015-1248 fiberglass I-Bar grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. It is lightweight and made of safe-T span grating manufactured from a fire-retardant isophthalic polyester resin (ISOFR). The high percentage of glass provides durability and high unidirectional strength and stiffness, making this the ideal product for applications where longer support spans are required, such as roadways and parking areas. Support loads in the span direction only. When properly installed, it has a load class C traffic rating. Purchase as replacement grates or create your own trench drain by adding frames/rails to build your system. FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included). See below for installation instructions.

The grate has an open area of 40% and is ADA compliant.

Actual dimensions: 12"W x 48"L x 1.5"H

FG-I4015-1248 Specification Sheet

Benefits of Fiberglass I-Bar Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load class C rating
• Grate depth 1.5"
• Grate open area of 40%
• Grate openings 0.4"
• ADA complaint
