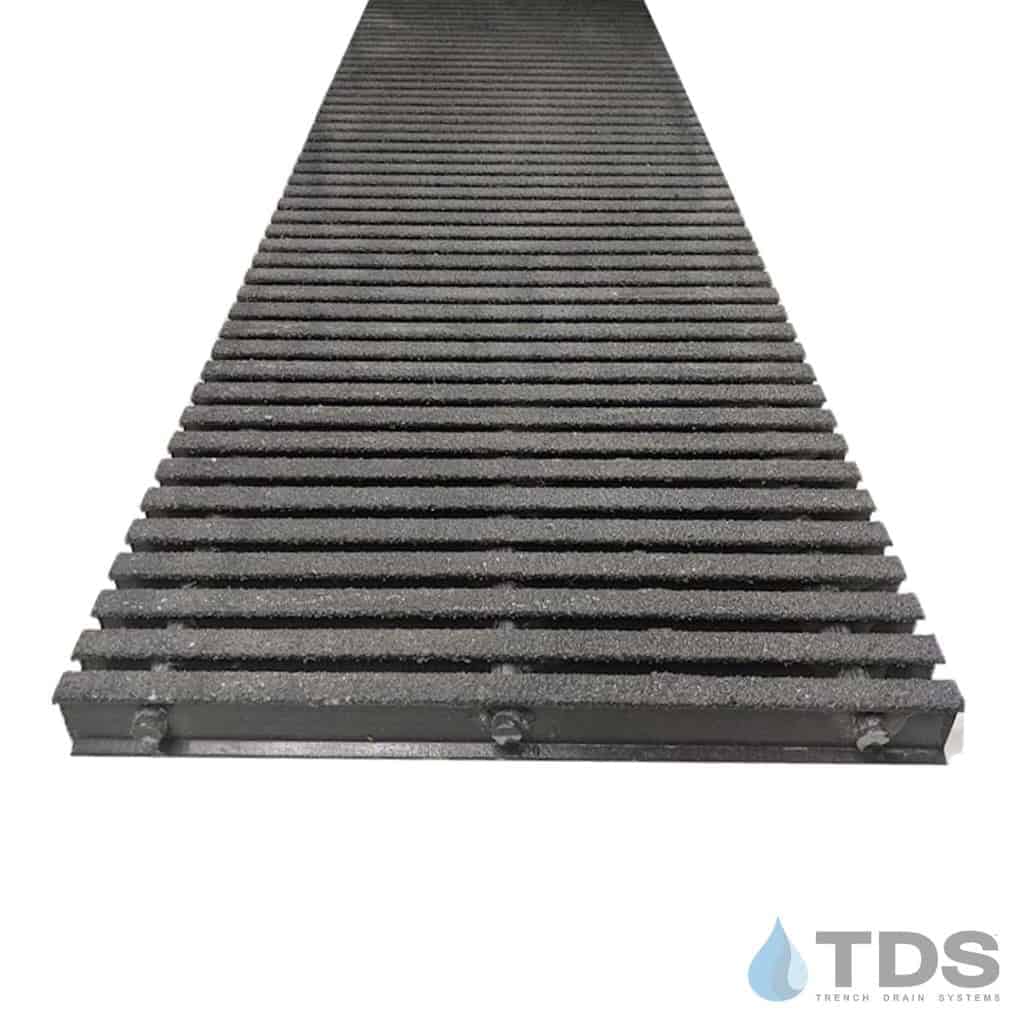

FG-I4015-1548 Fiberglass I-Bar Grate 15"X48"x1.5" Grate Load Class C
FG-I4015-1548 Fiberglass I-Bar Grate 15"X48"x1.5" Grate Load Class C
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 15.00"
- Grate Height: 1.50"
- Weight: 16.0 lb
- Grate Material / Color / Finish: Fiberglass - I-Bar
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class C
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
The FG-I4015-1548 fiberglass I-Bar grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. It is lightweight and made of safe-T span grating manufactured from a fire-retardant isophthalic polyester resin (ISOFR). The high percentage of glass provides durability and high unidirectional strength and stiffness, making this the ideal product for applications where longer support spans are required, such as roadways and parking areas. Support loads in the span direction only. When properly installed, it has a load class C traffic rating. FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included). See below for installation instructions.
The grate has an open area of 40% and is ADA compliant.
Actual dimensions: 15"W x 48"L x1.5"H
FG-I4015-1548 Specification Sheet
Benefits of Fiberglass I-Bar Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating
- Grate depth 1.5"
- Grate open area of 40%
- Grate openings 0.4"
- ADA complaint
