FG-MESH-0848 Mesh Fiberglass 8"X48"x1.5" Grate Load Class C
FG-MESH-0848 Mesh Fiberglass 8"X48"x1.5" Grate Load Class C
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 8.00"
- Grate Height: 1.50"
- Weight: 9.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class A
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

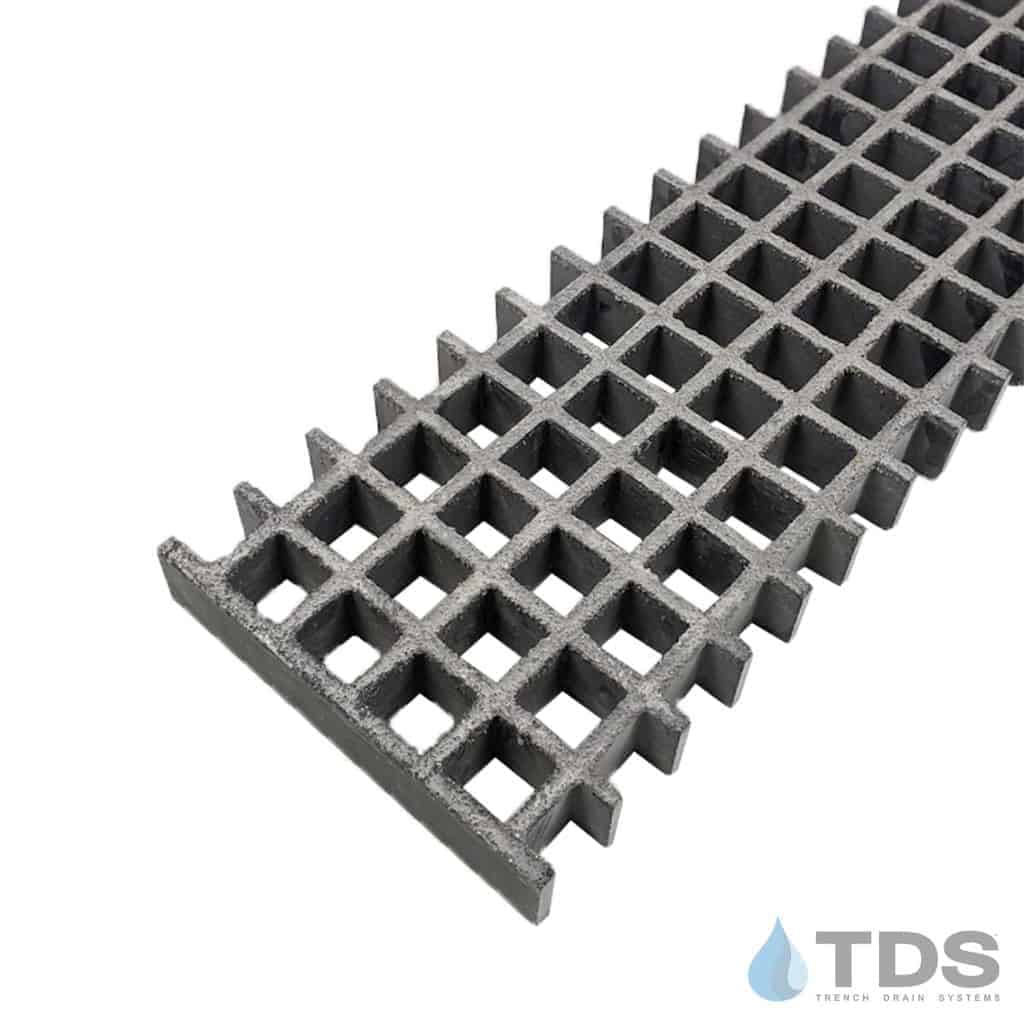

Fiberglass mesh grate
Actual grate dimensions: 7.50″ x 48″ x 1.5″
Large project? Request a Quote
The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 8.0 inches and the height of 1.5". This grate, when properly installed, has a Load Class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels. Made in the USA.
Actual grate dimensions: 8.0" x 48" x 1.5"
FG-MESH-0848 Specification Sheet
FG-734250 Locking devices (4 per grate) sold separately - Requires 1/4-20 hardware (not included)
Benefits of Fiberglass Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating
- Grate open area of 70%
- Grate openings 1.25" x 1.25" (1.5" x 1.5")
- Grate depth 1.5"
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
