FG-MESH-1048 Mesh Fiberglass 10" X 48"x1.5" Grate Load Class C
FG-MESH-1048 Mesh Fiberglass 10" X 48"x1.5" Grate Load Class C
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 10.00"
- Grate Height: 1.50"
- Weight: 12.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- Grate Load Class: Class A
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

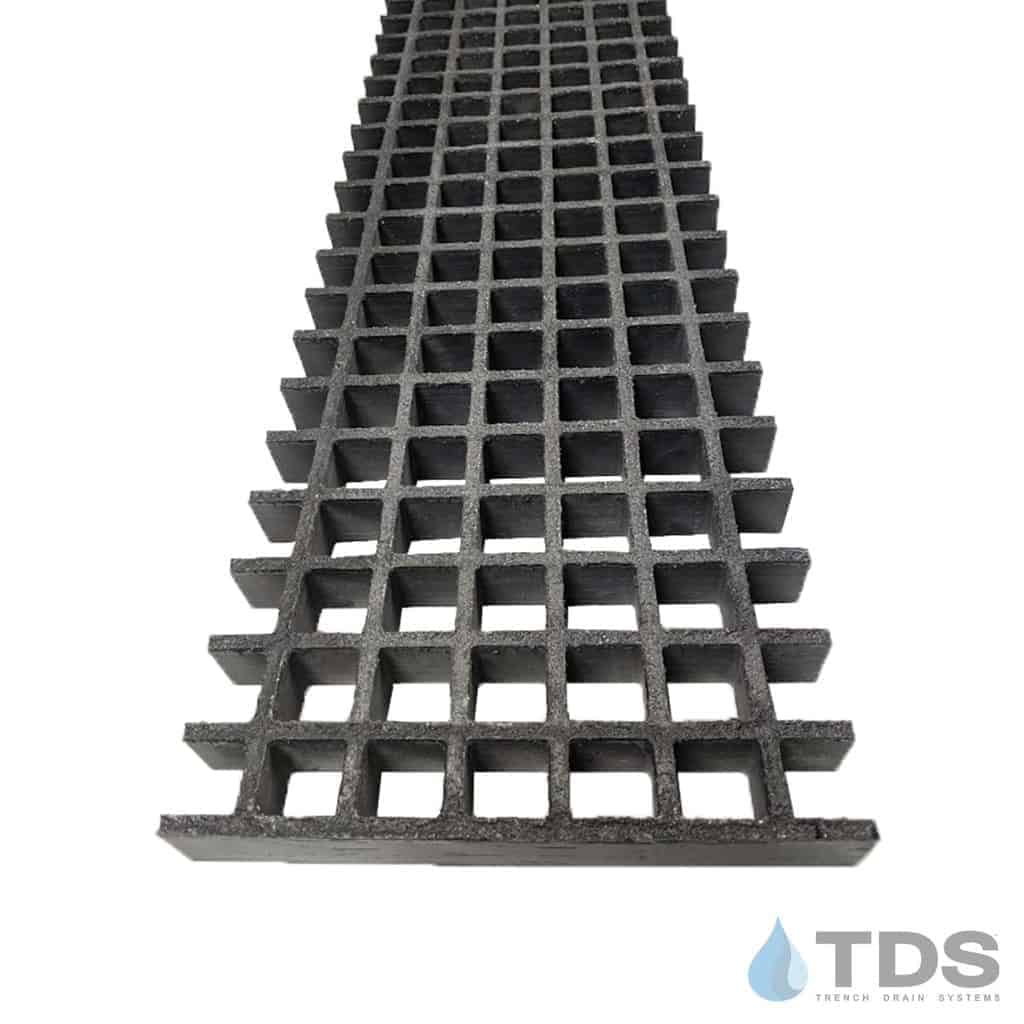

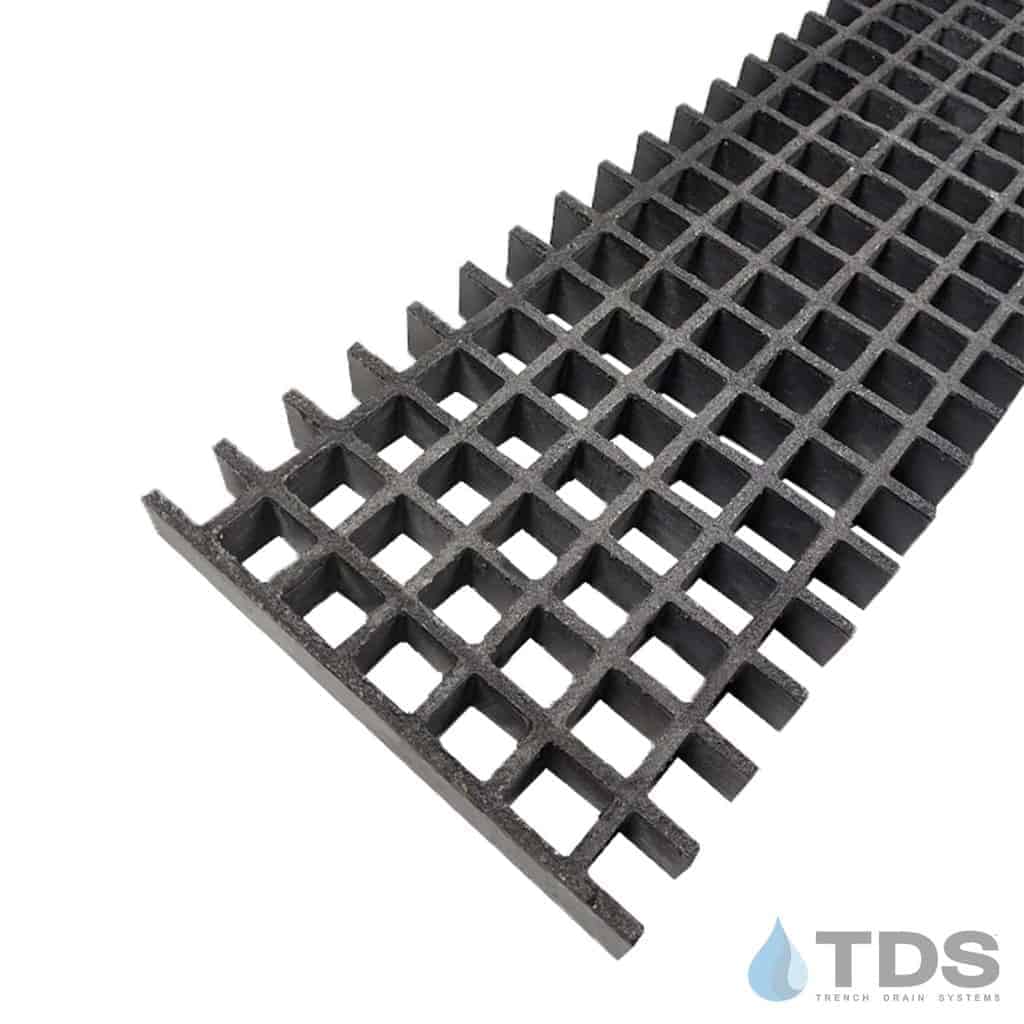

Fiberglass mesh grate
Actual grate dimensions: 10″ x 48″ x 1.5″
The grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 10 inches with a height of 1.5". This grate, when properly installed, has a Load Class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.
FG-MESH-1048 Specification Sheet
FG-734250 Locking devices (4 per grate) sold separately - Requires 1/4-20 hardware (not included)
Benefits of Fiberglass Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class C rating*
- Grate open area of 70%
- Grate openings 1.25" x 1.25" (1.5" x 1.5")
- Grate depth 1.5"
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
