FG-MESH-CB18 Fiberglass 18" Catch Basin Grate
FG-MESH-CB18 Fiberglass 18" Catch Basin Grate
Additional Information
- Grate Width: 18.0" x 18.0" for NDS 1800 Series
- Grate Height: 1.125"
- Weight: 5.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: 1800 Series
- Grate Load Class: Class A
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
FRP 18 inch catch basin grate
Fits NDS 1800 Catch Basin
Large project? Request a Quote

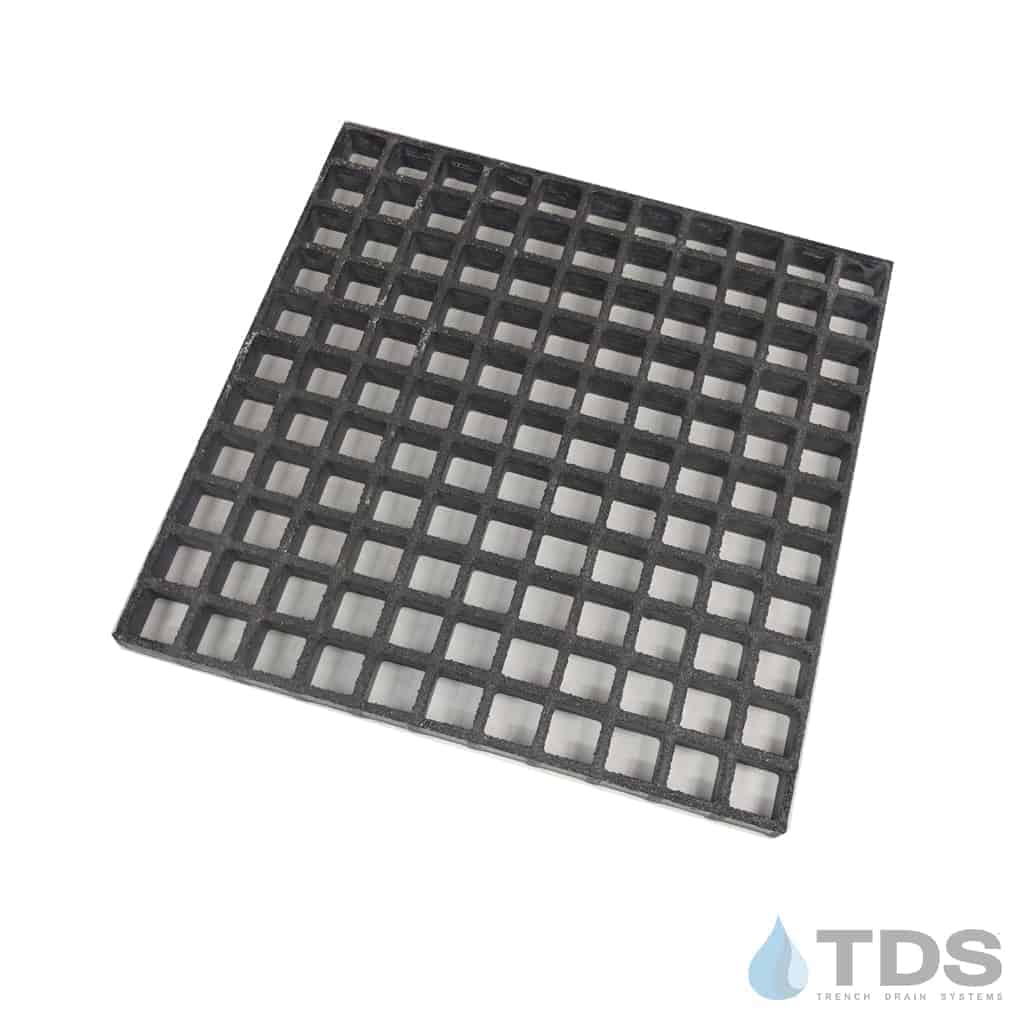

The 18" square mesh fiberglass grate with 1.5"x1.5" openings mesh grate is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust, corrosion and chemical resistant FRP grate can be used with the 18-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, patios, sidewalks and landscaped areas.
Load Class A
Actual Dimensions: 16-3/4" x 16-3/4" x 1"
