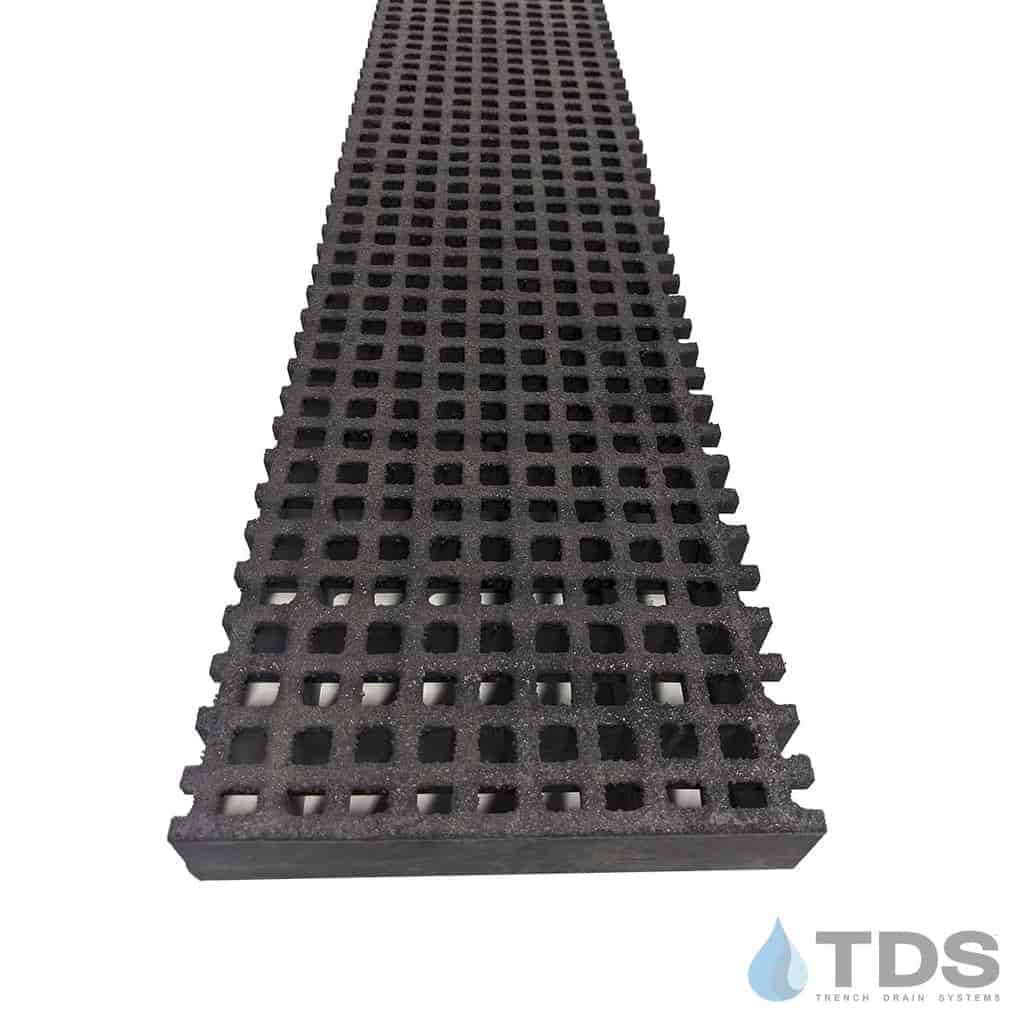

FG-MICRO-0848 Micro Mesh Fiberglass ADA Compliant 8"X48" Grate Load Class A
FG-MICRO-0848 Micro Mesh Fiberglass ADA Compliant 8"X48" Grate Load Class A
Additional Information
- Grate Width: 8.00"
- Grate Height: 1.50"
- Weight: 16.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: Fibergrate Kit
- Grate Load Class: Class A
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
These ADA-compliant grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual dimensions are 1.5" thick x 8.00" wide x 48" in length. This grate, when properly installed, has a Load Class A traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.
FG-734300 Locking devices (4 per grate) sold separately - Requires 1/4-20 hardware (not included)
Benefits of Fiberglass Micro-Mesh Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- ADA compliant
- Grate open area of 44.4%
- Grate openings 0.50"
- Grate depth 1.5"
