FG-MICRO-CB12 Load Class A Fiberglass 12" Catch Basin Grate - Dark Grey
FG-MICRO-CB12 Load Class A Fiberglass 12" Catch Basin Grate - Dark Grey
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 12.0" x 12.0" for NDS 1200 Series
- Grate Height: 1.50"
- Weight: 6.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: 1200 Series
- Grate Load Class: Class A
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

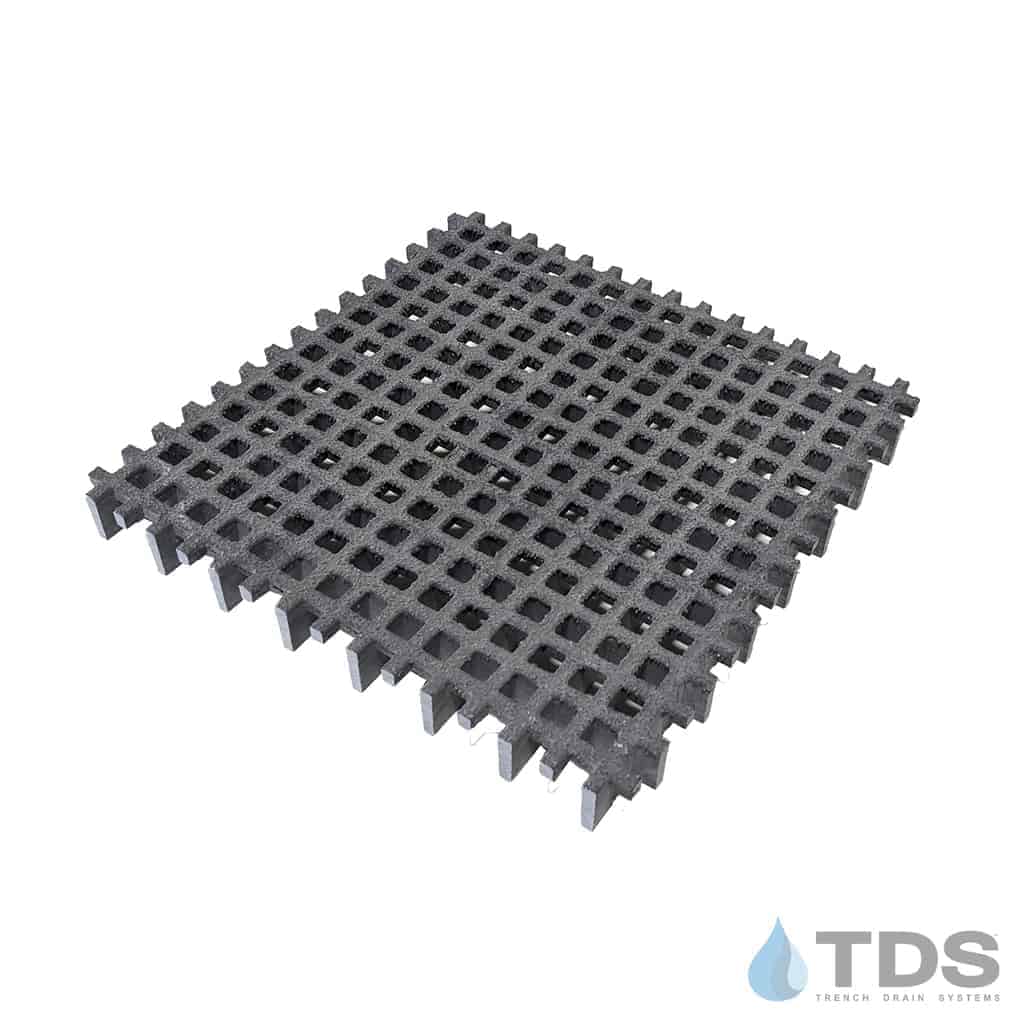

The 12" square fiberglass micro-mesh grate with 1.5" x 1.5" openings is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust, corrosion, and chemical-resistant FRP grate can be used with the 12-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, patios, sidewalks, and landscaped areas. Load Class A
Actual Dimensions: 11.5" x 11.5" x 1"
Specification Sheet for FG-MICRO-CB
Fits NDS 1200, NDS 1222, NDS1230
Need a custom-size fiberglass grate? Request a quote today!
