FG-MICRO-CB18 Load Class A Fiberglass 18" (Nominal) Catch Basin Grate - Dark Grey
FG-MICRO-CB18 Load Class A Fiberglass 18" (Nominal) Catch Basin Grate - Dark Grey
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 18.0" x 18.0" for NDS 1800 Series
- Grate Height: 1.50"
- Weight: 8.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: 1800 Series
- Grate Load Class: Class A
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

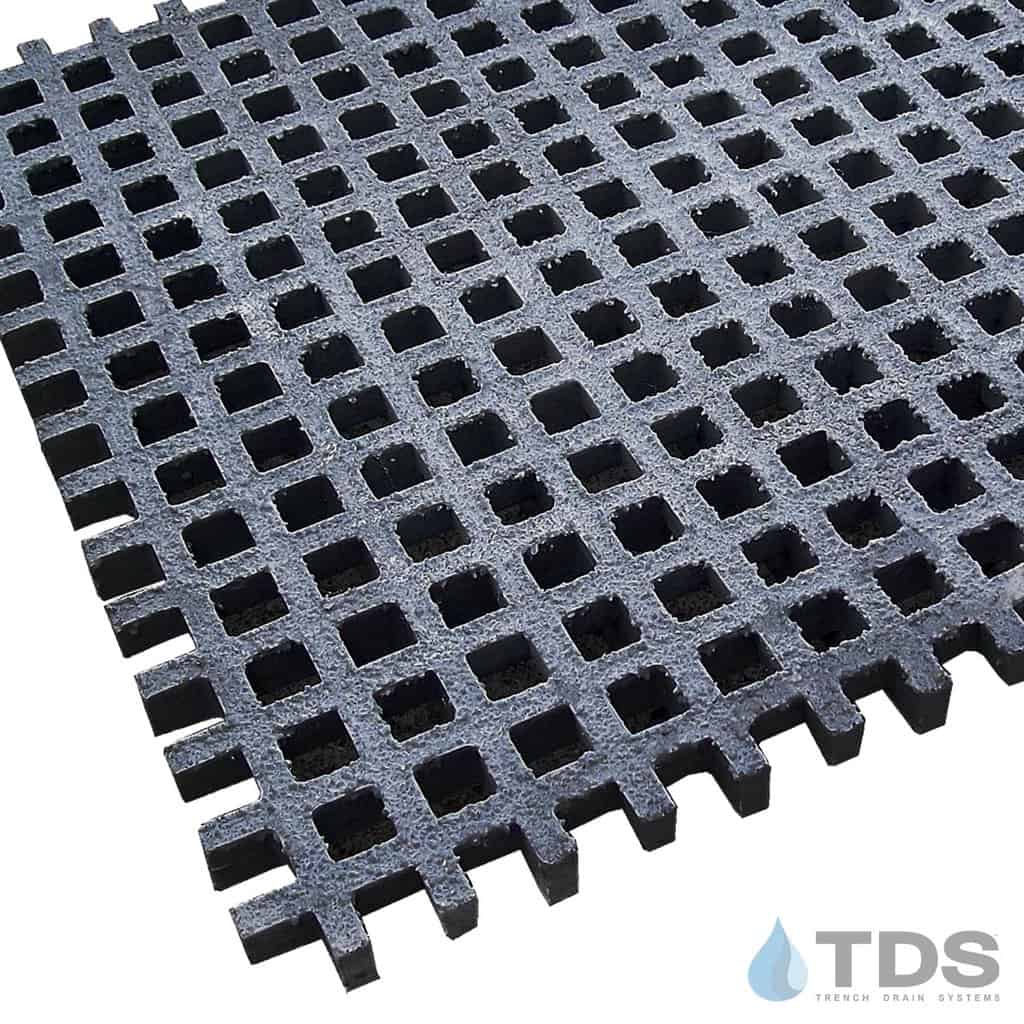

The 18" square micro mesh fiberglass grate with 1.5"x1.5" openings mesh grate is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust, corrosion, and chemical-resistant FRP grate can be used with the 18-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess storm water from driveways, patios, sidewalks, and landscaped areas. Load Class A
Actual Dimensions: 16-3/4" x 16-3/4" x 1"
Specification Sheet for FG-MICRO-CB
Fits NDS 1800 Catch Basin
Need a custom-size fiberglass grate? Request a quote today!
Want to learn more about Catch Basins? Click Here.
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
