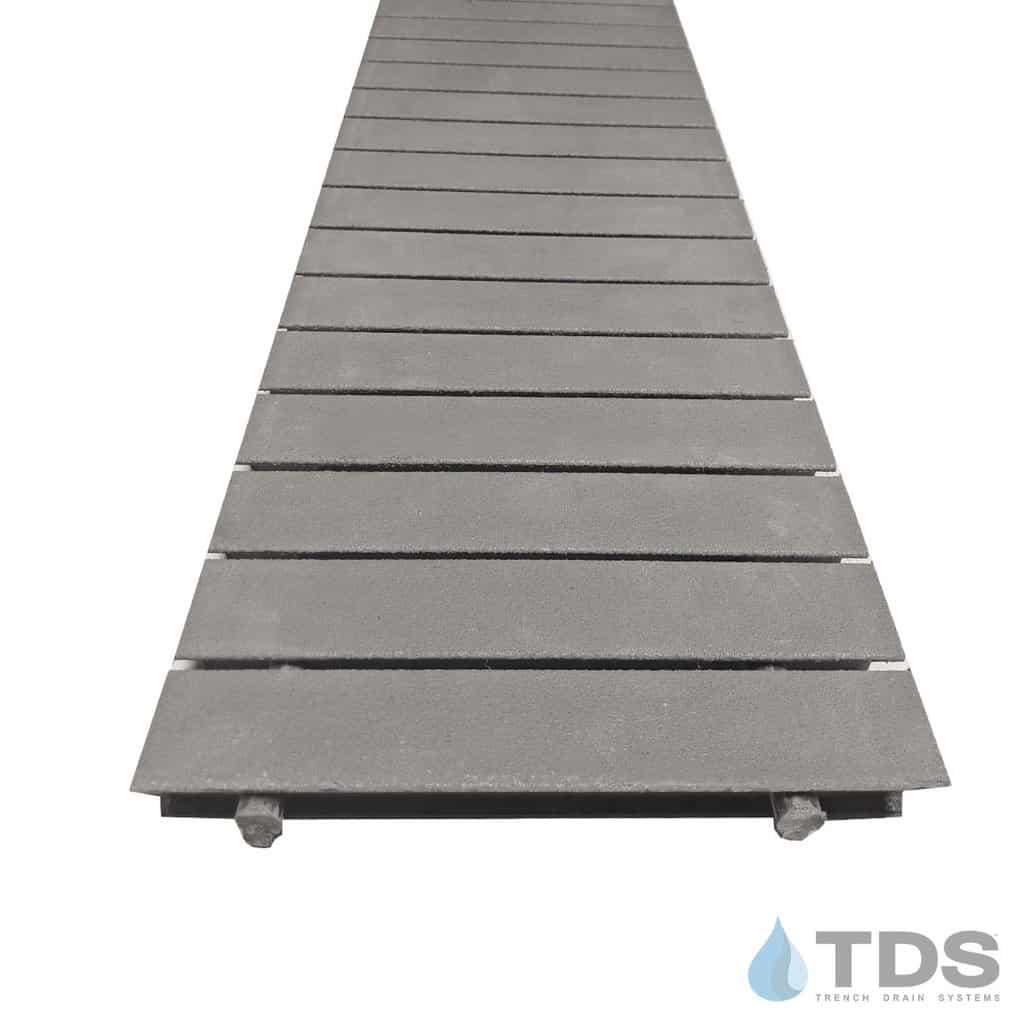

FG-T1215-0948 Fiberglass T-Bar Grate 9"X48" Grate Load Class A
FG-T1215-0948 Fiberglass T-Bar Grate 9"X48" Grate Load Class A
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 9.00"
- Grate Height: 1.50"
- Weight: 13.0 lb
- Grate Material / Color / Finish: Fiberglass - T-Bar
- Manufacturer: TDS (Trench Drain Systems)
- Grate Load Class: Class A
- Channel Material: Form Your Own OR Site Built
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

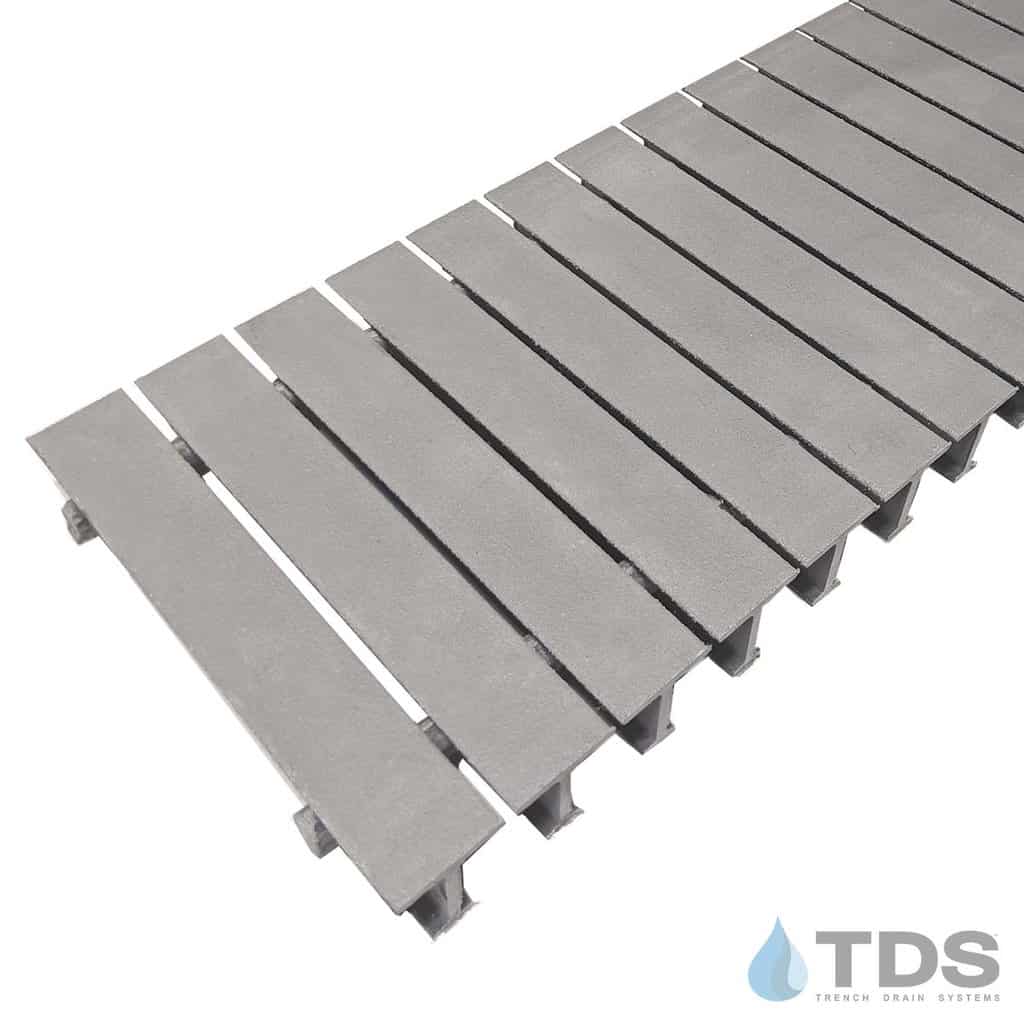

Fiberglass FRP 9" wide heel-proof T-Bar grate(s) are ideal for applications where longer support spans are required. This grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. This grate, when properly installed, has a Load Class A traffic rating. This grate is manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. A special domed washer with the appropriate bolt length acts as a hold-down device. (sold separately)
Actual Dimensions: 9″x48″x1.5″
FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)
Fiberglass Kit Installation Guide
Benefits of Fiberglass T1215 T-Bar Grate:
- Corrosion resistance
- Impact resistance
- Non-slip grit traction layer
- Lightweight
- Nonconductive
- Nonmagnetic
- Load class A rating*
- Grate open area of 12%
- Grate openings 0.21"
- Grate depth 1.5"
- Heel proof
- ADA compliant
Need a custom-size fiberglass grate? Request a quote today
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
