HW FGS Locking Device for FP1200 Series Stainless Grates
HW FGS Locking Device for FP1200 Series Stainless Grates
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 14.66" for TDS FP/FF/FE 1200
- Grate Height: 1.50"
- Weight: 1.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: TDS (Trench Drain Systems)
- System: FP1200 (Replacement Part Only)
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Transportation
Description
Large project? Request a Quote
TDS FP1200 series Locking device for specific stainless steel, galvanized and ductile iron grates. (Compatible grates are listed on the specification sheet) Part # HW FGS
Designed to fit: FP1200

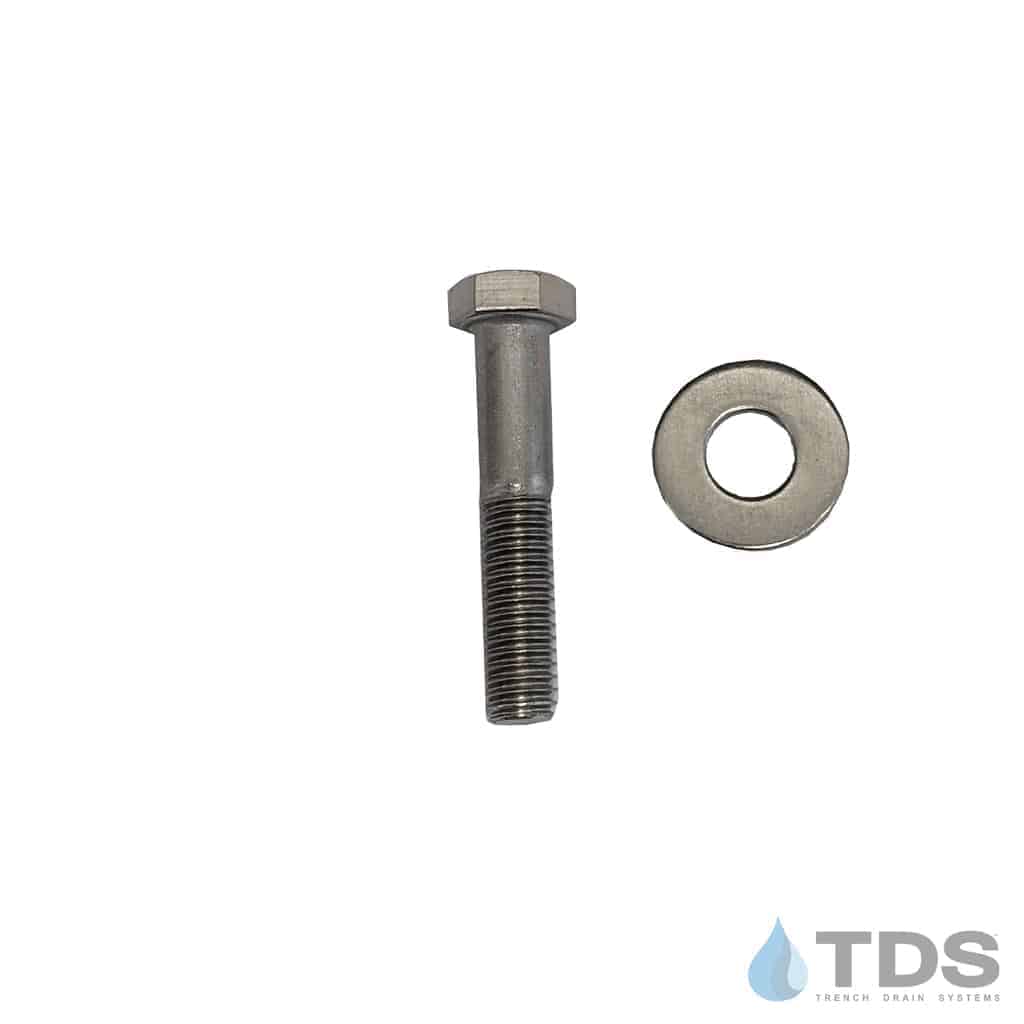

Each locking device includes:
3/8-16 X 2" Hex Head Cap Screw
3/8" Flat Washer
Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.
