Iron Age IA-ARGO-0520-HP Class B Argo ADA Compliant Heel-Proof Cast Iron 122mm x 500mm Grate
Iron Age IA-ARGO-0520-HP Class B Argo ADA Compliant Heel-Proof Cast Iron 122mm x 500mm Grate
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 11.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
- Manufacturer: Iron Age Designs
- System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
- Grate Load Class: Class B
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Iron Age grate AA5-20I21HP

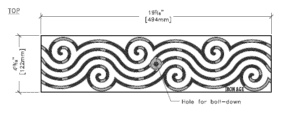

Actual Dimensions: 4.81″ [122mm] x 19.57″ [498mm] x .81″ [20.57mm]
Large project? Request a Quote

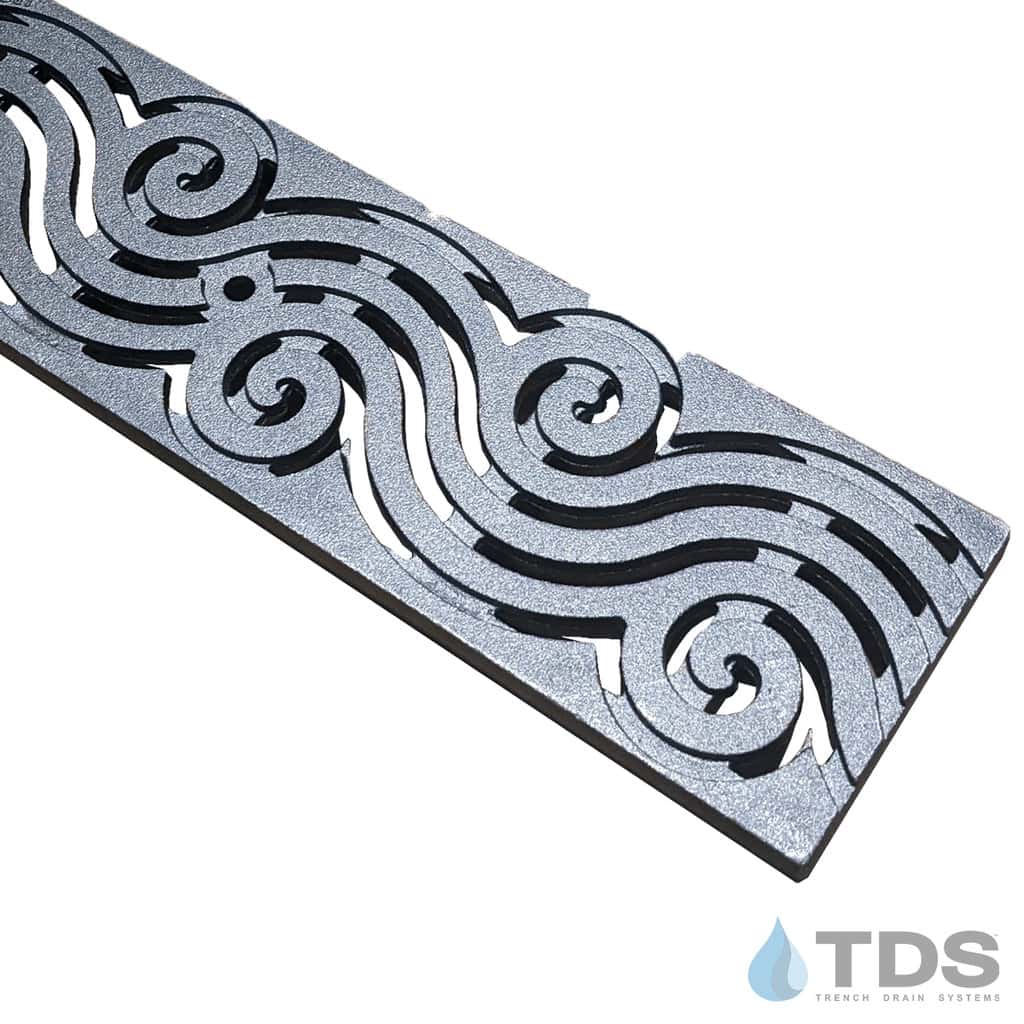

Decorative Iron Age grate with the Argo pattern and is available in either the raw casting or Baked on Oil Finish.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
Specification Sheet for IA-ARGO-0520-HP
Locking device sold separately.
- The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
- The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
- The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
- The 141460 locking device is compatible with the MEArin 100 channel.
- The 2811B locking device is compatible with the ABT Polydrain channel.
