Iron Age IA-BAY-0520-HP Mission Bay Heel-Proof Cast Iron 122mm x 500mm Grate

Iron Age IA-BAY-0520-HP Mission Bay Heel-Proof Cast Iron 122mm x 500mm Grate

Skip to product information
1 of 2

Trench Drain Grates

SKU:IA-BAY-0520-HP

Regular price $167.31 USD
Regular price $167.31 USD Sale price $167.31 USD
Sale Sold out
Grate Finish
View full details

Additional Information

  • Grate Width: 4.81" (5.00" nominal)
  • Grate Thickness: 3/4 inch
  • Product Type: Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Iron Age Designs
  • System: D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V, U100K, U100KX
  • Grate Load Class: Class B
  • Application: Animal and Zoo, Commercial, Driveway Drainage, Greenhouse, Municipal, Patio, Residential

Description

Iron Age grate MBA5-20I21HP

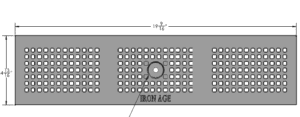

Actual Dimensions: 4.81″ [122mm] x 19.56″ [498mm] x .81″ [20.57mm]

Large project? Request a Quote

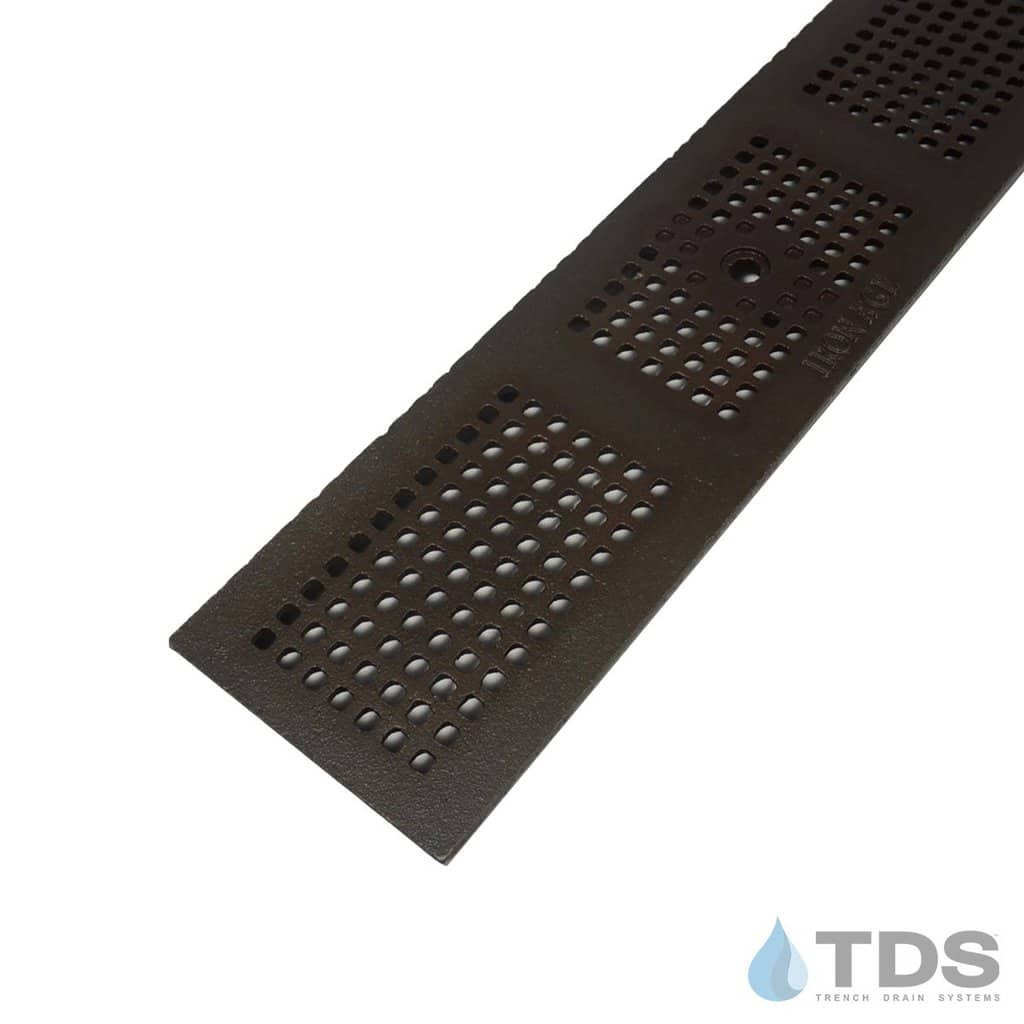

Decorative Iron Age grate with the Mission Bay pattern and is available in either the raw casting or Baked on Oil Finish.

Specification Sheet IA-BAY-0520-HP

Locking device sold separately.

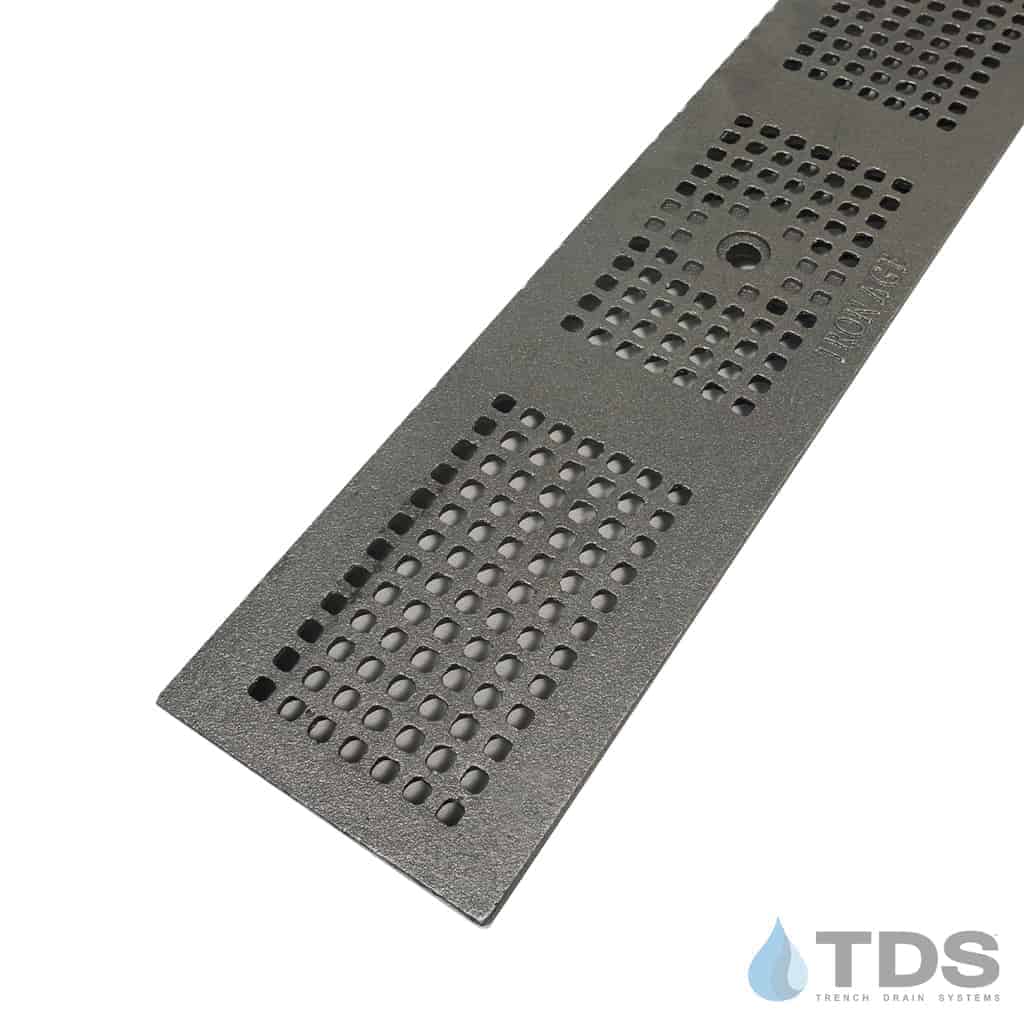

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish? Click Here to learn more.
