Iron Age IA-DYN-0520-BF Class B Dynamo Cast Iron 122mm x 500mm Grate

1 2

Trench Drain Grates

SKU:IA-DYN-0520

$260.26 USD

Sale Sold out

Grate Finish Raw Baked on Oil Finish

Quantity

View full details

Additional Information

Grate Width: 4.81" for ULMA
Grate Height: 0.75"
Product Type: Channel Grate, Grate
Grate Material / Color / Finish: Ductile/Cast Iron - Raw
Manufacturer: Iron Age Designs
System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
Grate Load Class: Class B
Channel Material: Polymer Concrete - Polyester, Plastic - (PP, HDPE, PE) - Black
Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External

Description

Iron Age grate DYA5-20I21

Actual Dimensions: 4.81″ Wide [122mm] x 19.6″ Long [498mm] x .75″ Deep [19mm]

Large project? Request a Quote

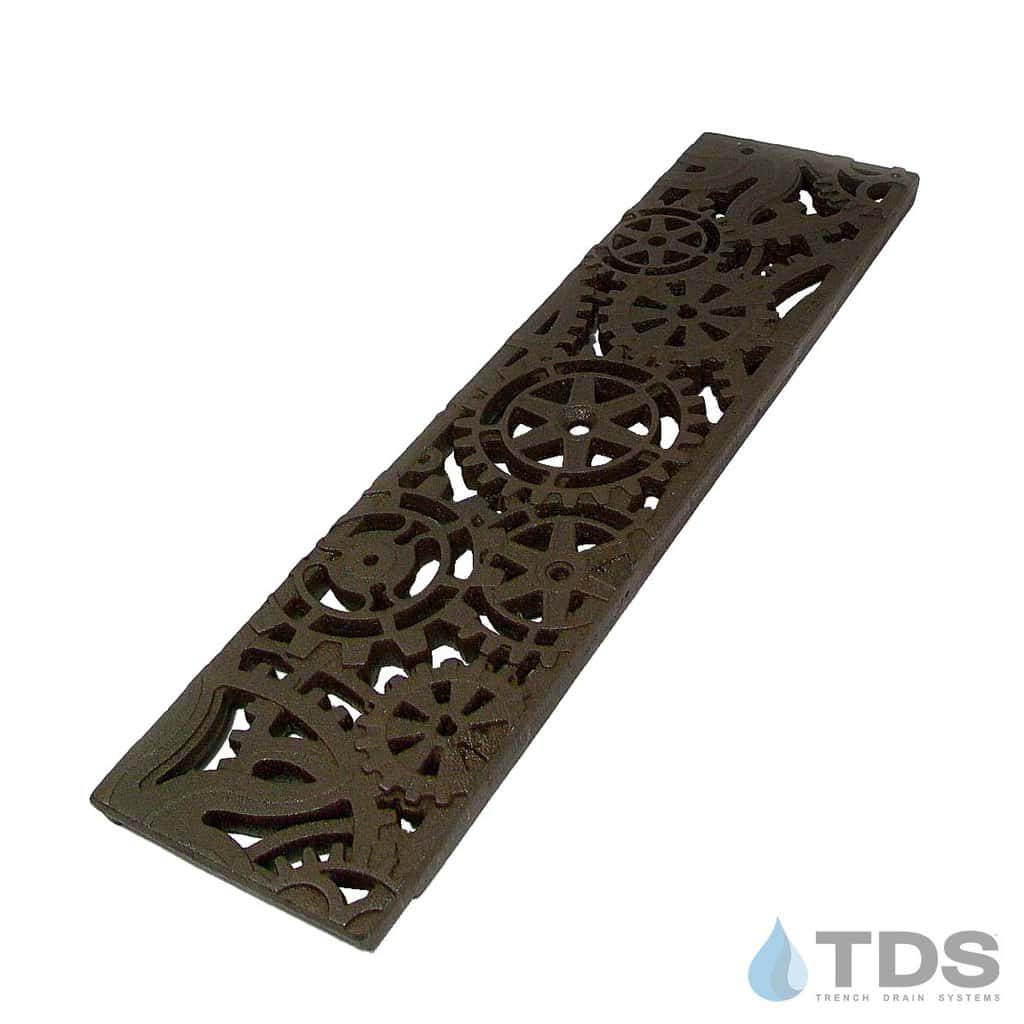

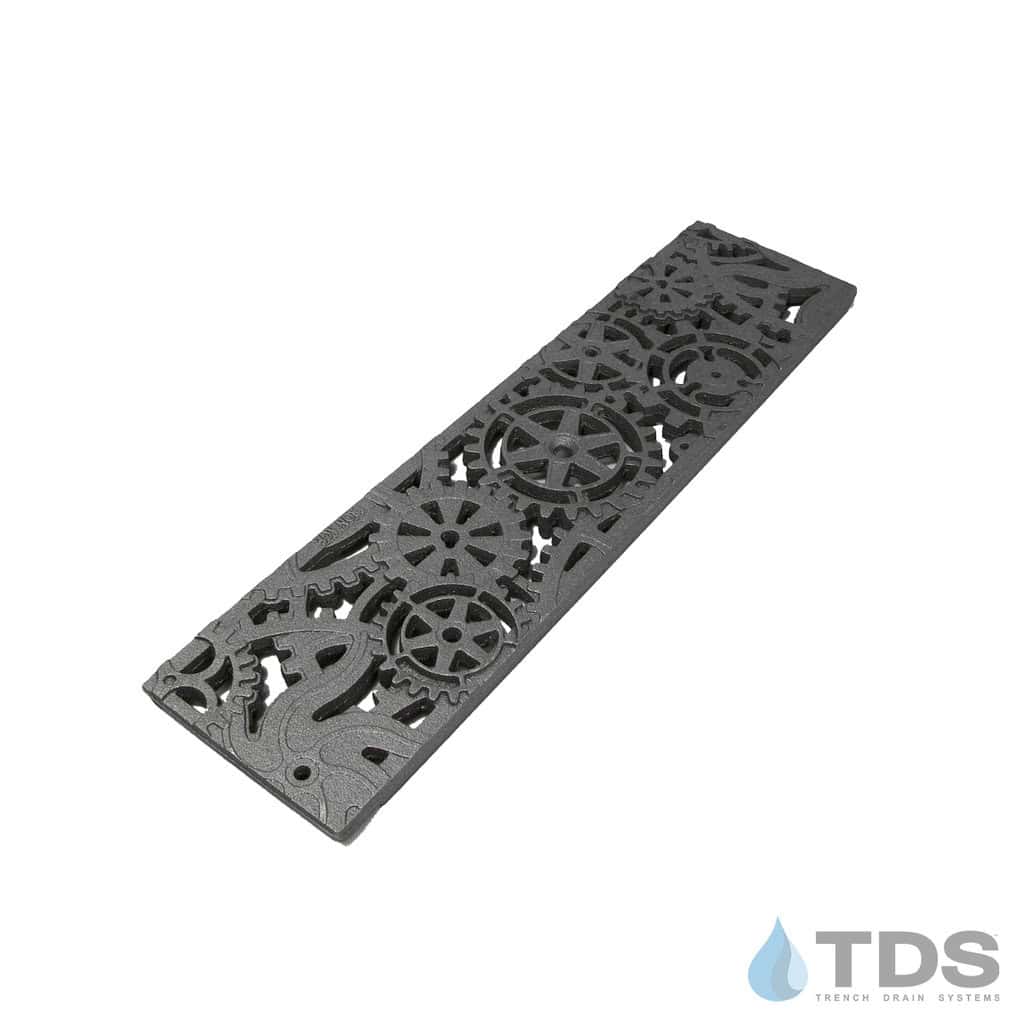

Decorative Iron Age grate with the Dynamo pattern and is available in either the raw casting or Baked-on Oil Finish. Made in USA.

Specification Sheet for IA-DYN-0520-BF

Locking devices are sold separately.

LD100X-2 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
LD100MX-2 locking device is compatible with the ULMA M series systems.
LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basin

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
