Iron Age IA-GRK-0520 Class B Greek Key Cast Iron 122mm x 500mm Grate

Iron Age grate GA5-20I21

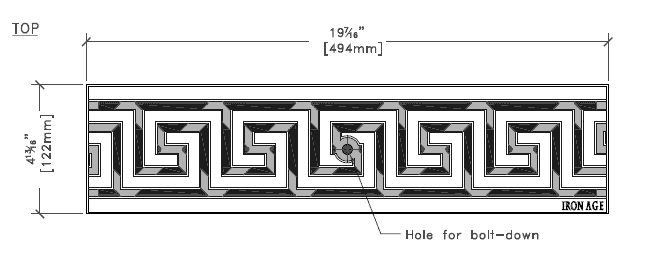

Actual Dimensions: 4.84″ [122 mm] x 19.43″ [494 mm] x .81″ [20.5 mm]

Large project? Request a Quote

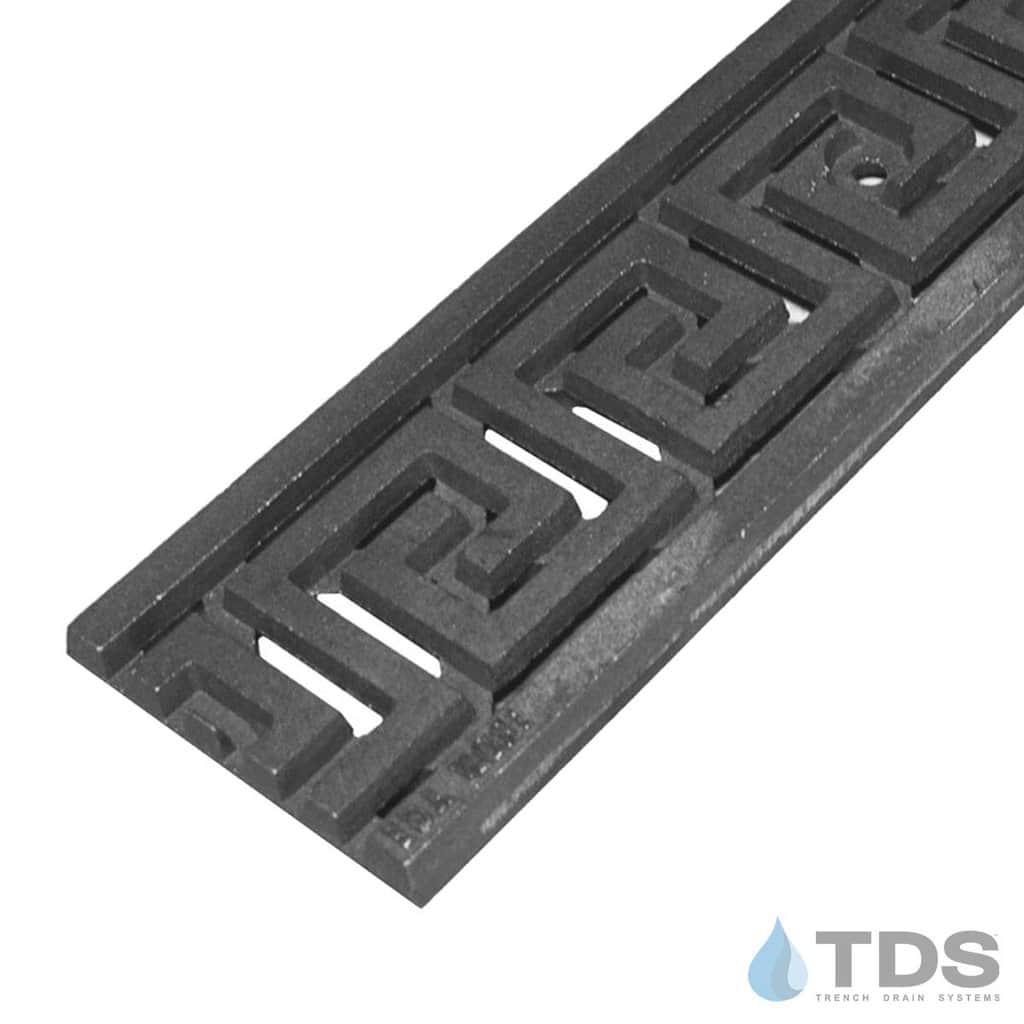

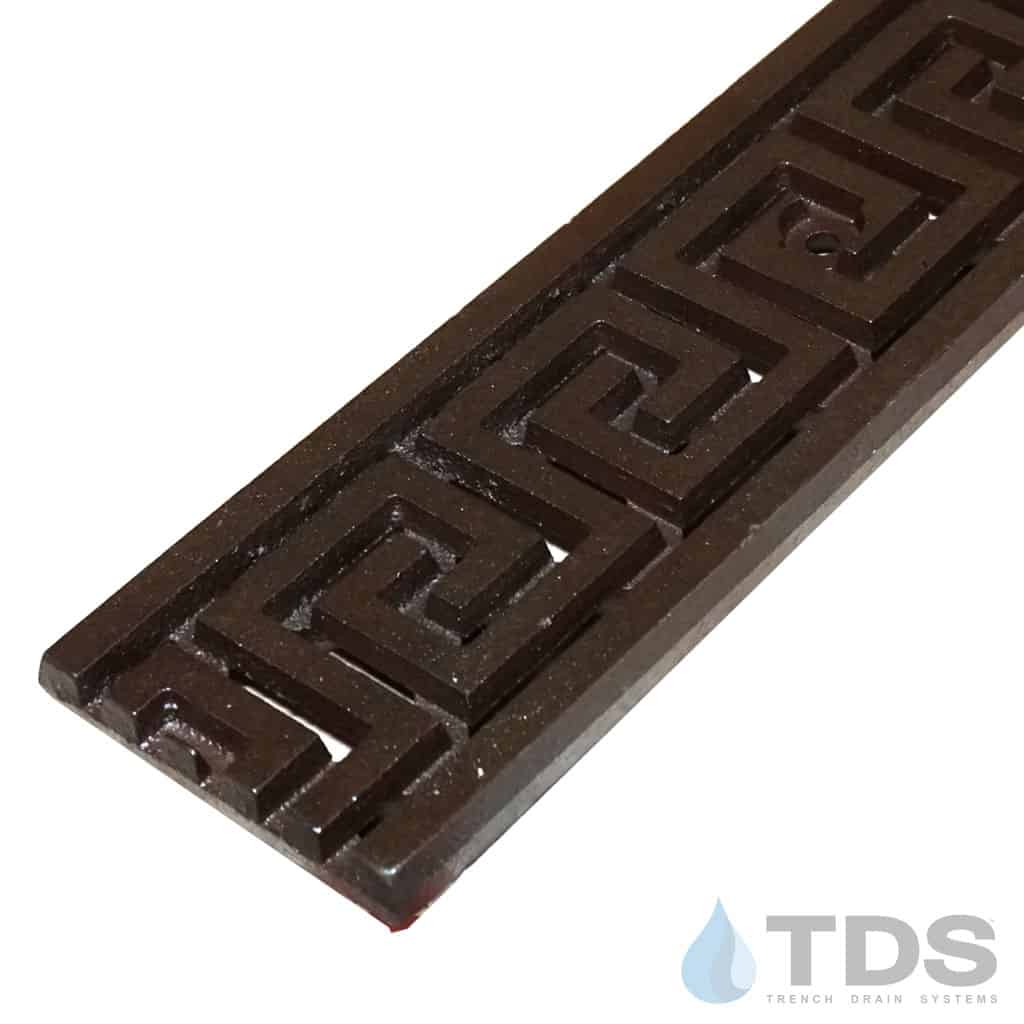

Decorative cast iron trench grate designed to fit the ULMA U100 Channel drain system and others. The Greek Key pattern is available in either the raw casting or Baked on Oil Finish (BoOF).

Specification Sheet for IA-GRK-0520

Locking devices are sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
