Iron Age IA-INTER-0520 Class B Interlaken Cast Iron 122mm x 500mm Grates
Iron Age IA-INTER-0520 Class B Interlaken Cast Iron 122mm x 500mm Grates
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 10.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
- Manufacturer: Iron Age Designs
- System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
- Grate Load Class: Class B
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Iron Age grate IA5-20I21

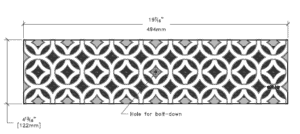

Actual Dimensions: 4.81″ [122mm] x 19.44″ [494mm] x .81″ [20.57mm]
Large project? Request a Quote
Decorative Iron Age grate with the Interlaken pattern and is available in either the raw casting or Baked on Oil Finish.
Actual Dimensions: 4.81" [122mm] x 19.63" [498mm] x .81" [20.57mm]
Specification sheet for IA-INTER-0520
Locking device sold separately.
- LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
- LD100MX-2 locking device is compatible with the ULMA M series systems.
- LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basin
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
