Iron Age IA-INTER-0624 Class B Interlaken Cast Iron 6″ x 24″ Grate
Iron Age IA-INTER-0624 Class B Interlaken Cast Iron 6″ x 24″ Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 6.00" for NDS DuraSlope
- Grate Height: 0.75"
- Weight: 13.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Iron Age grate IN6-24I03
Large project? Request a Quote
The Interlaken pattern for the NDS® Dura Slope is available in either the raw casting or Baked on Oil Finish (BooF).
(There may be slight dimension variances on cast iron products)

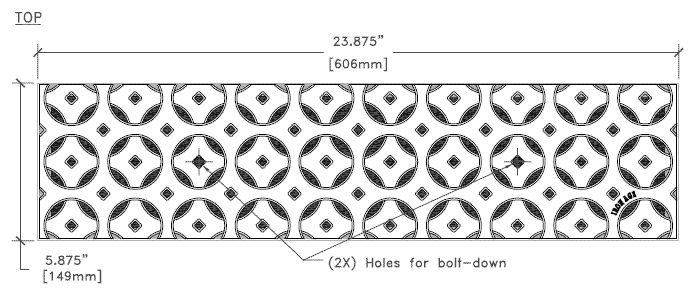

Actual Dimensions: 5.88" [149 mm] x 24" [610 mm] x .75" [19 mm]
Specification Sheet for IA-INTER-0624
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
