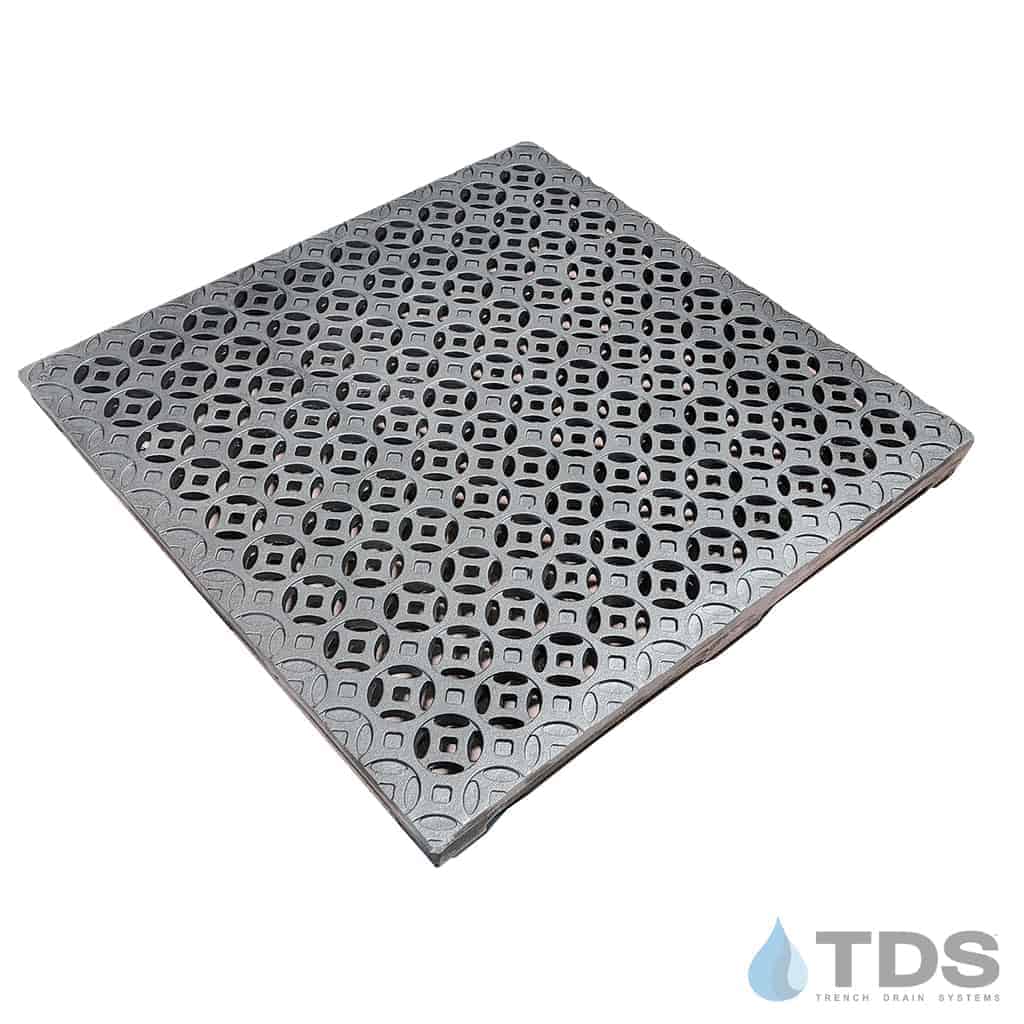

Iron Age IA-INTER-CB24 (IX24-24|99FW) Class B Interlaken Cast Iron 24" x 24" Grate
Iron Age IA-INTER-CB24 (IX24-24|99FW) Class B Interlaken Cast Iron 24" x 24" Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 24.0" x 24.0" for NDS 2400 Series
- Grate Height: 2.00"
- Weight: 73.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: Iron Age Designs
- System: 2400 Series
- Grate Load Class: Class B
- Application: Residential, Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Iron Age grate IX24-24I99

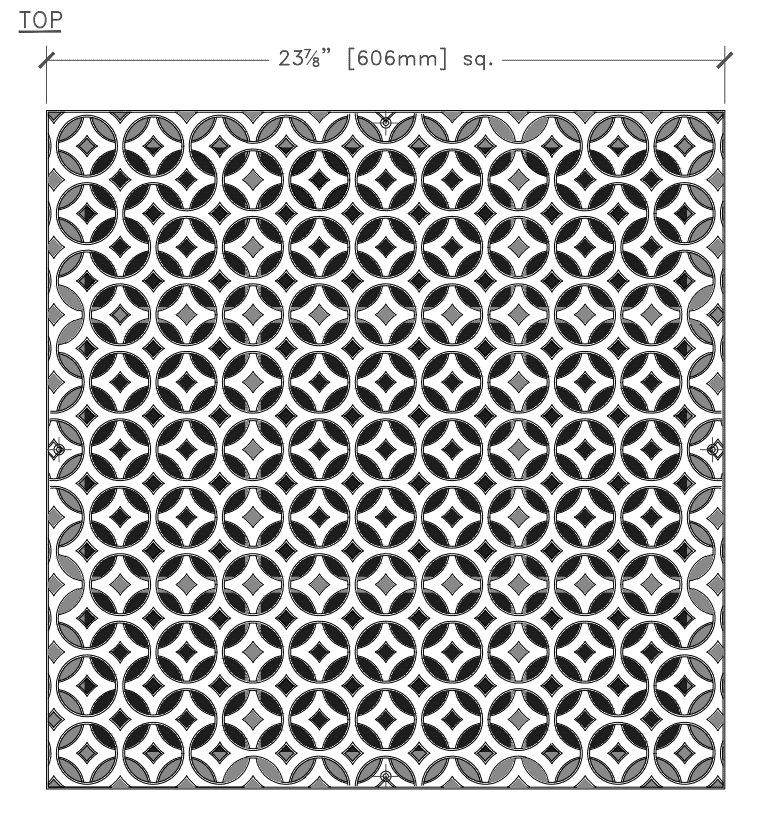

Actual Dimensions: 23.88″ [607 mm] x 23.88″ [607 mm] x 1″ [25 mm]
Large project? Request a Quote
The decorative Interlaken pattern (cast iron) is slightly smaller (23.5" sq.) and does not fit the NDS2400 catch basins properly.
This Interlaken grate is 1" thick and is Load Class B.
The majority of Iron Age grates have not been rated for specific loads, but they have been designed at a minimum to withstand single-axle vehicles/residential traffic (Load Class B), regardless of material used. If your trench and catch basin grates need to be installed in an area with commercial traffic (Load Class C, D or E), we suggest casting in ductile iron, which has more flexibility and a higher strength-to-weight ratio.
Specification Sheet for IA-INTER-CB24
Grate Gallons per Minute (GPM) Flow Rate: 15.43 GPM
Designed to fit: Custom Frame
What is Baked On Oil Finish (BoOF)? Click Here to learn more.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
