Iron Age IA-JOE-0520-HP Heel-Proof Regular Joe Cast Iron 130mm x 500mm Grate

Iron Age grate RJA5-20I21HP

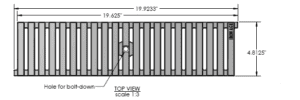

Actual Dimensions: 4.81″ [122mm] x 19.6″ [498mm] x .81″ [20.57mm]

Large project? Request a Quote

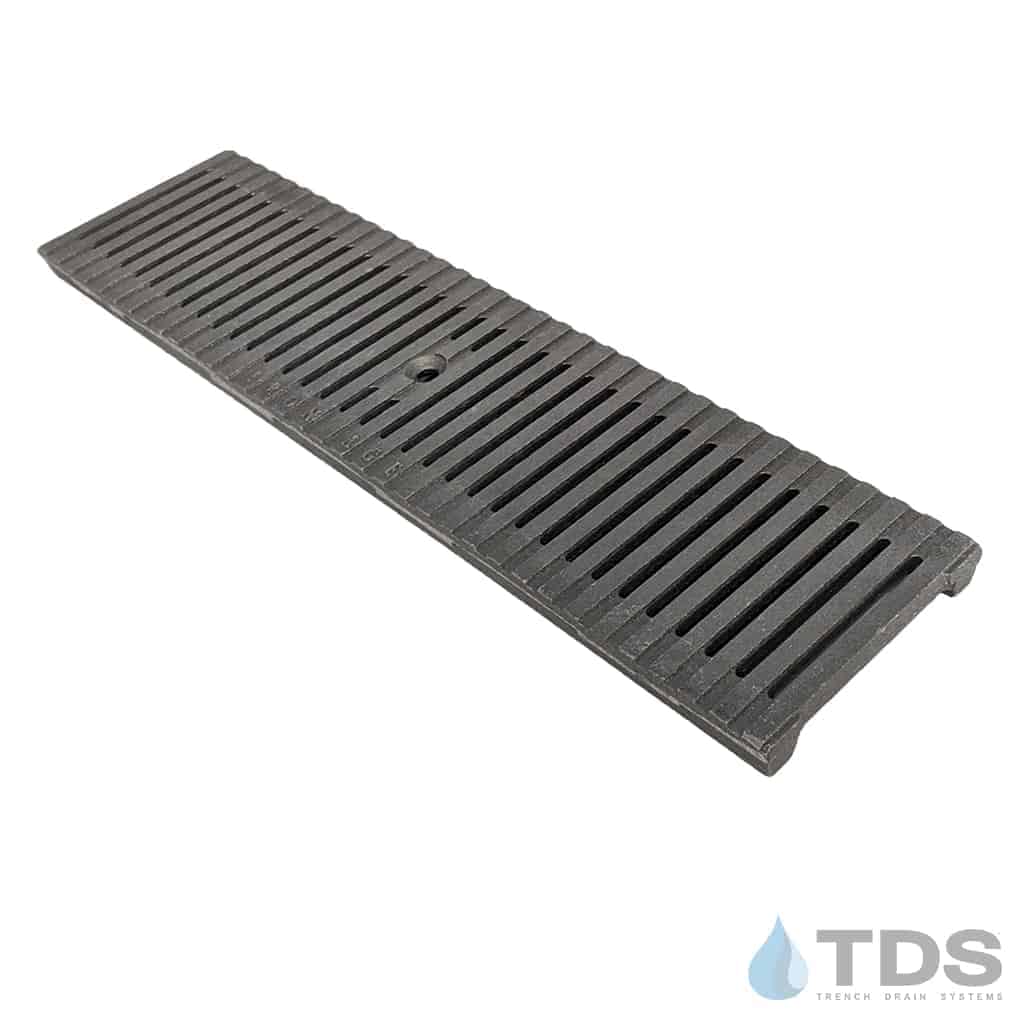

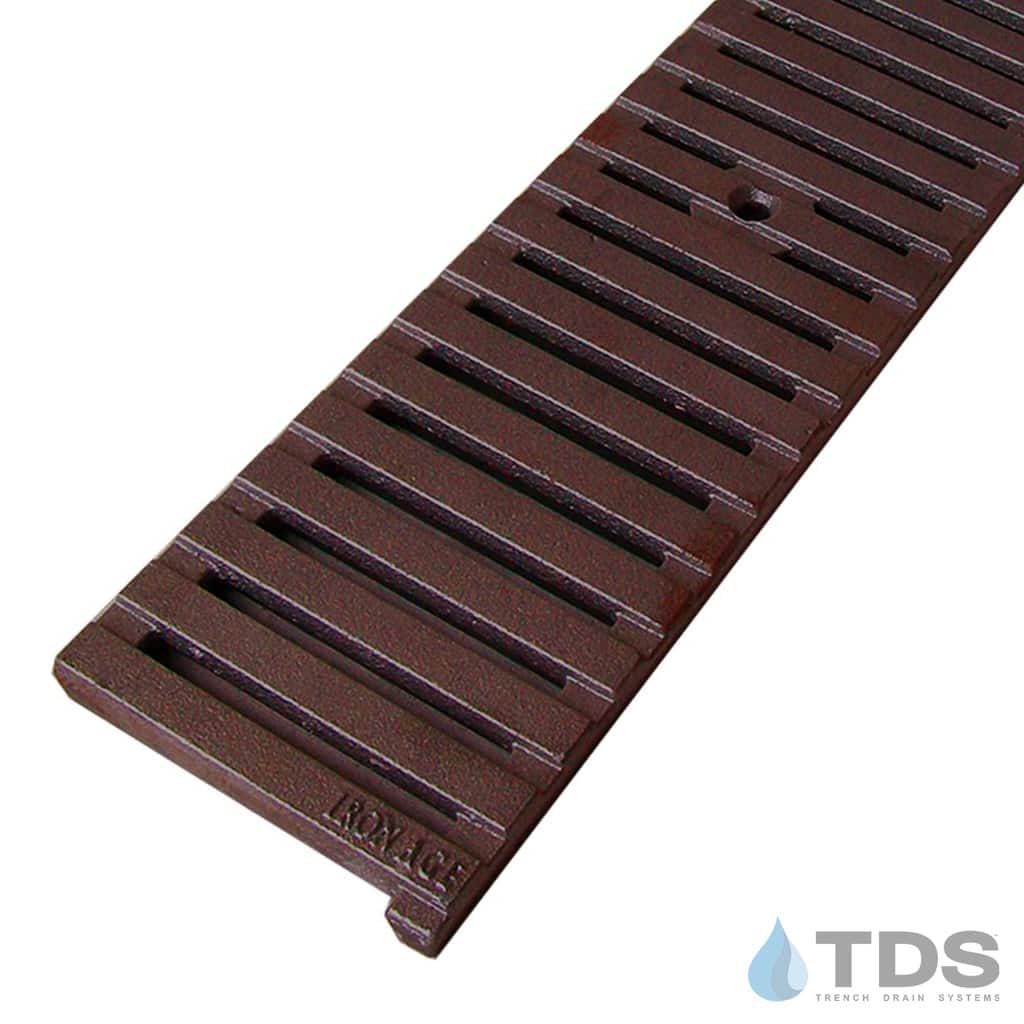

Decorative Heel Proof cast iron trench grate designed to fit the ULMA U100 and MEArin 100 Channel drain system and others. The Regular Joe Heel Proof pattern is available in either the raw casting or Baked on Oil Finish (BoOF).

Specification Sheet for IA-JOE-0520-HP

Locking devices are sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain channel.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish? Click Here to learn more.
