Iron Age IA-MIN-0520 Class B Minnione Cast Iron 122mm x 500mm Grate
Iron Age IA-MIN-0520 Class B Minnione Cast Iron 122mm x 500mm Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 10.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
- Manufacturer: Iron Age Designs
- System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
- Grate Load Class: Class B
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Iron Age grate MN3-12I01

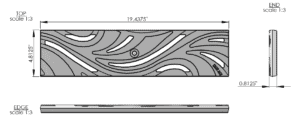

Actual Dimensions: 4.84″ [122 mm] x 19.43″ [494 mm] x .81″ [20.5 mm]
Large project? Request a Quote
Decorative Iron Age grate with the Minnione pattern and is available in either the raw casting or Baked on Oil Finish.
Specification Sheet for IA-MIN-0520
Locking devices are sold separately.
- The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
- The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
- The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
- The 141460 locking device is compatible with the MEArin 100 channel.
- The 2811B locking device is compatible with the ABT Polydrain channel.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
What is Baked On Oil Finish? Click Here to learn more.
