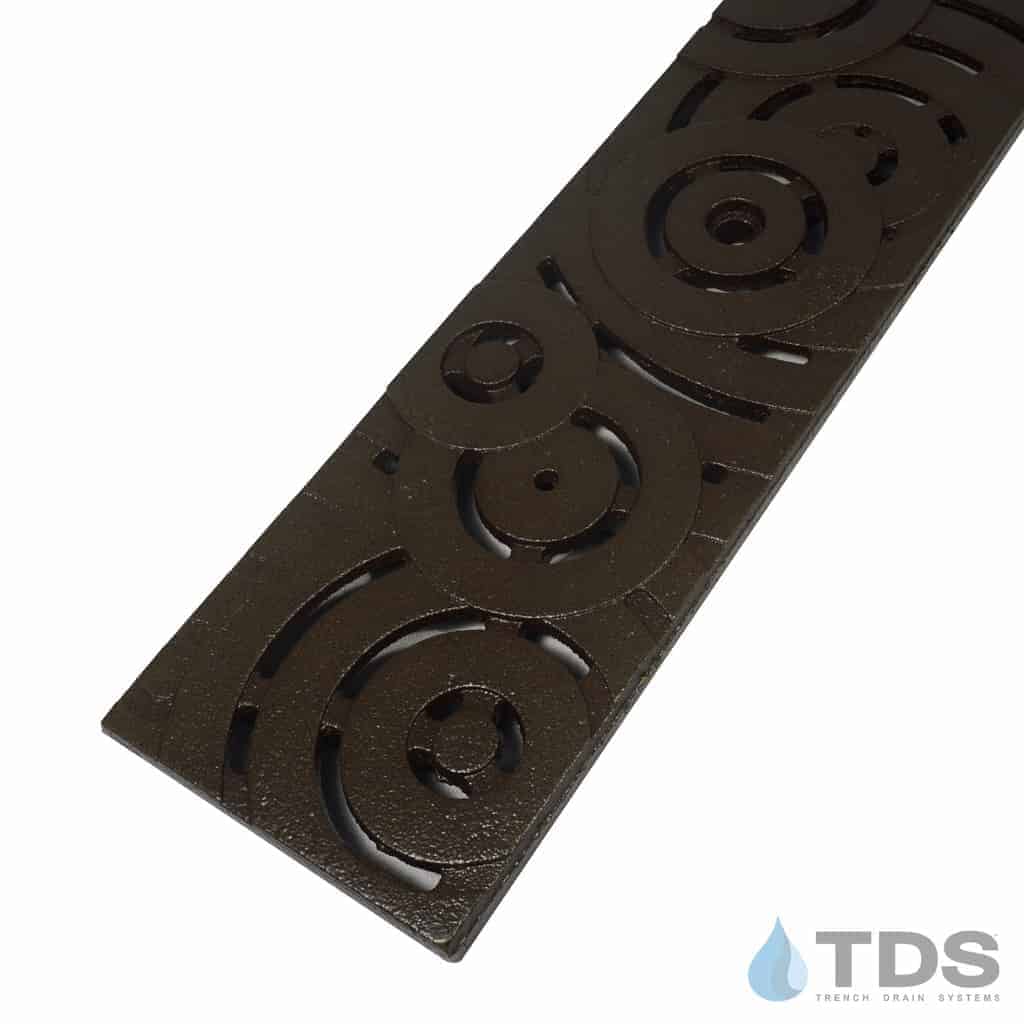

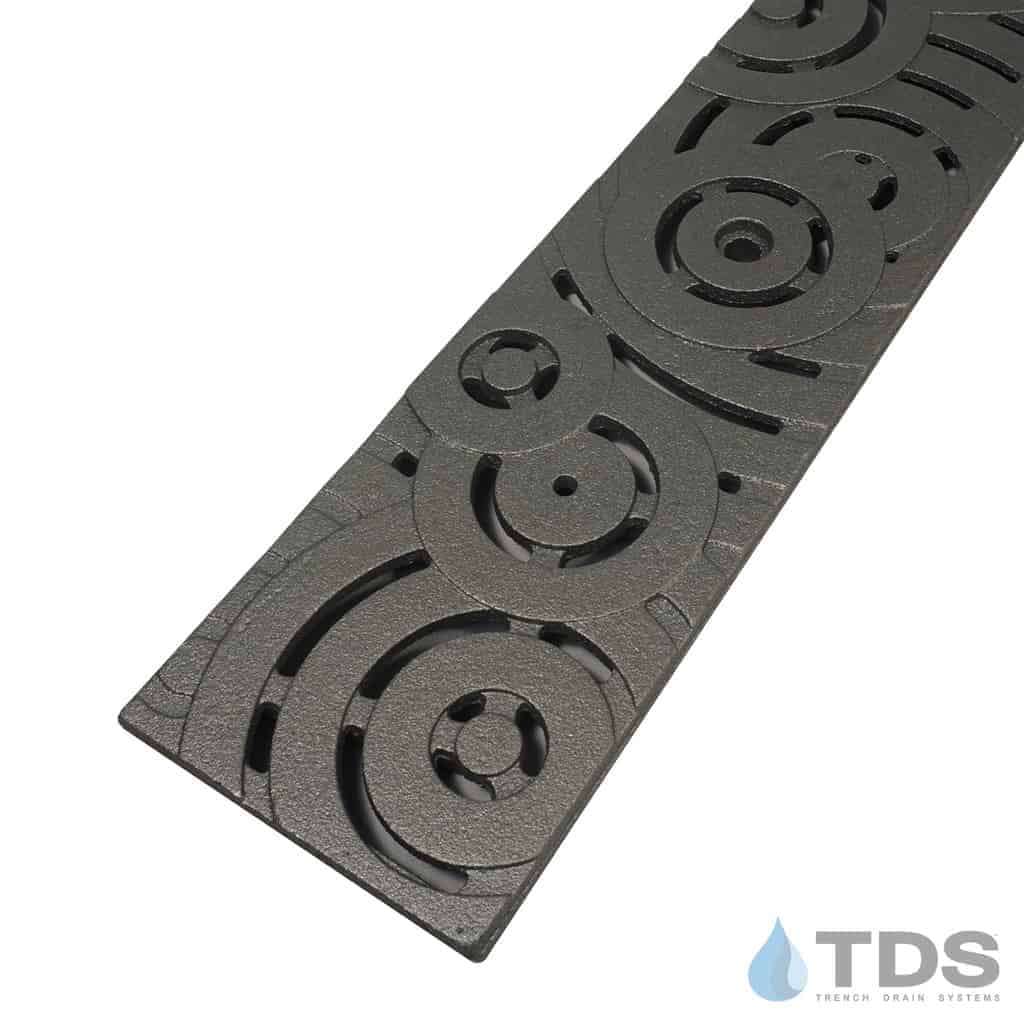

Iron Age IA-OBLIO-0520-HP Heelproof Class B OBLIO Cast Iron 122mm x 500mm Grate

Iron Age grate OA5-20I21HP

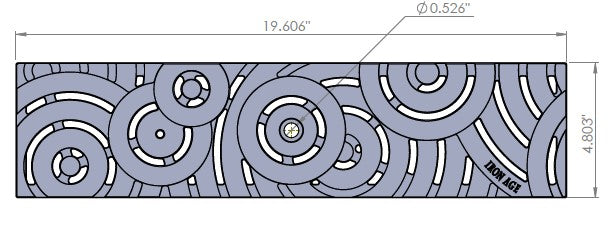

Actual Dimensions: 4.81″ [122mm] x 19.56″ [496mm] x .81″ [20mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the MEArin 100 Channel drain system and others. The Oblio heelproof and ADA complaint pattern is available in either the raw casting or Baked-on Oil Finish. With no openings greater than 0.25", this grate is excellent for use in high foot traffic areas such as sidewalks, patios and courtyards.

Specification Sheet for IA-OBLIO-0520-HP

Locking devices are sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain channel.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
