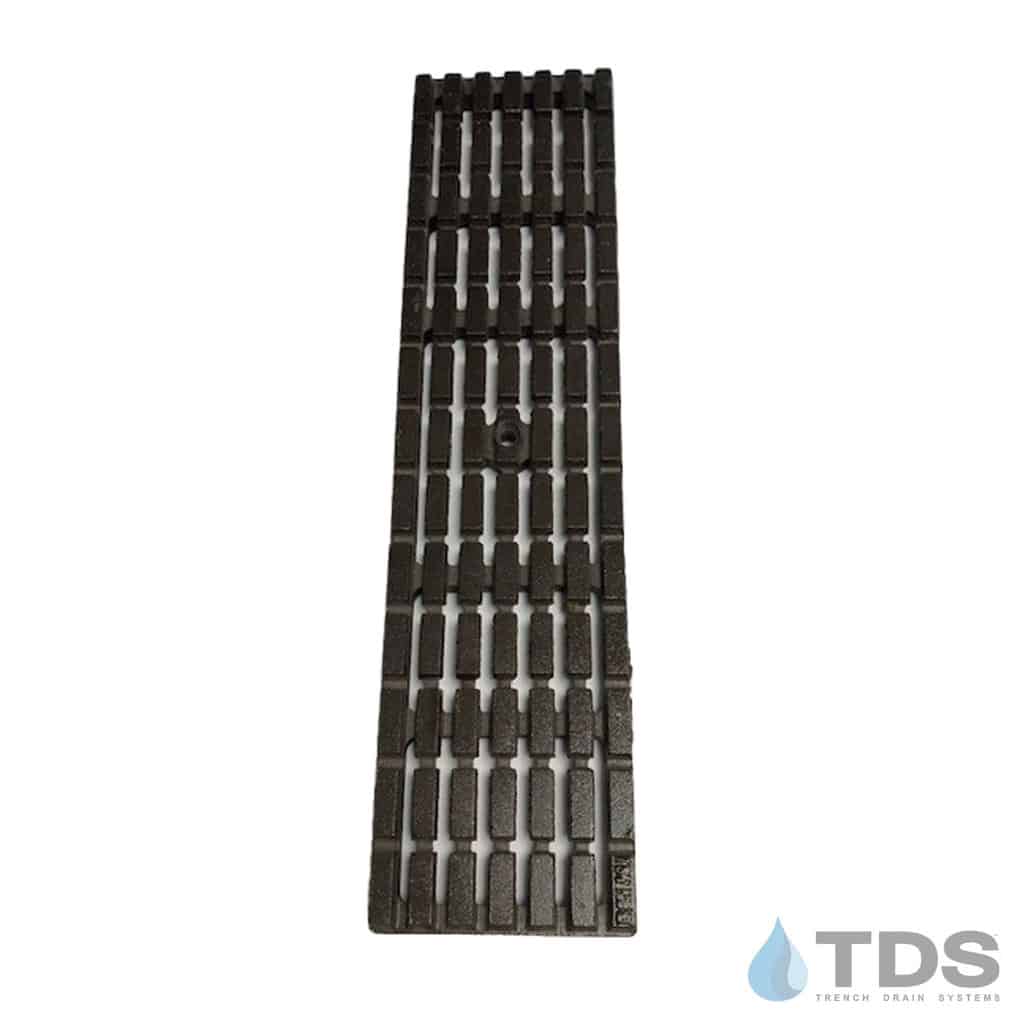

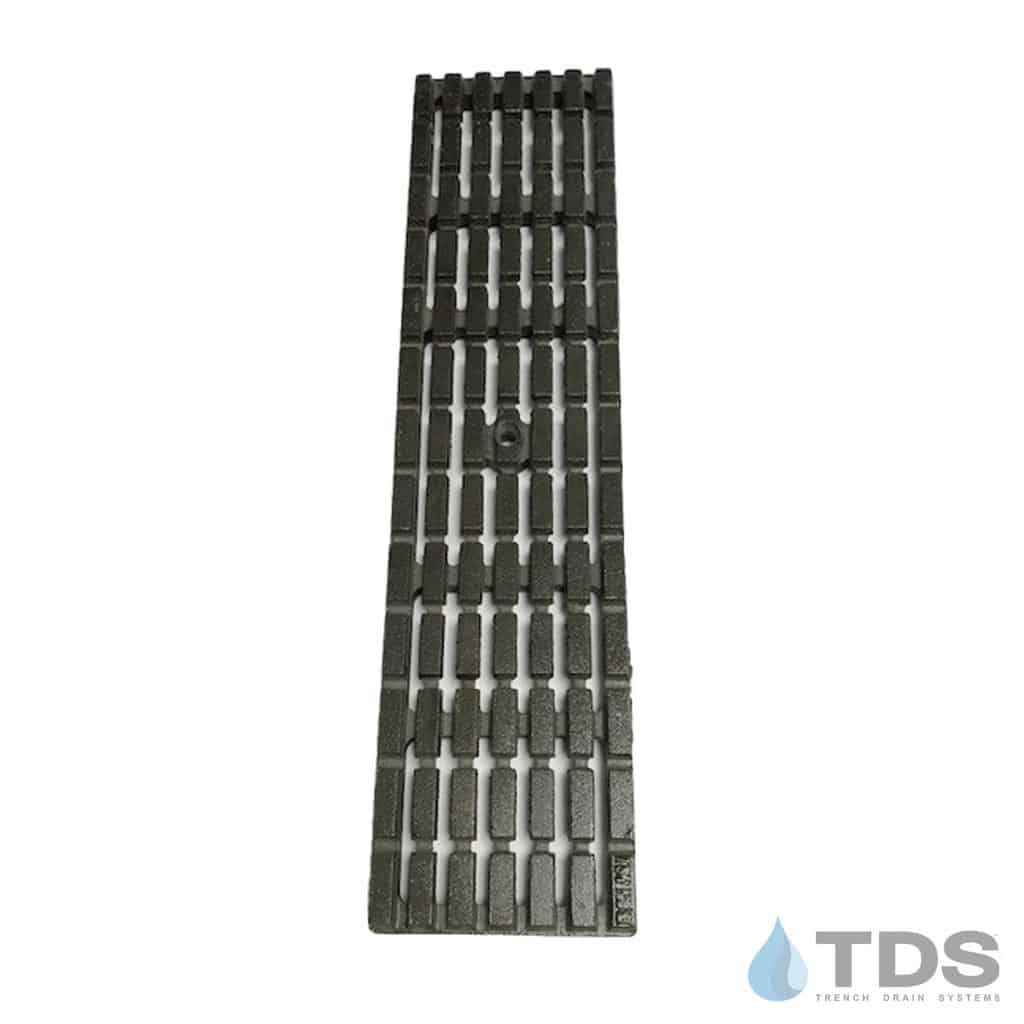

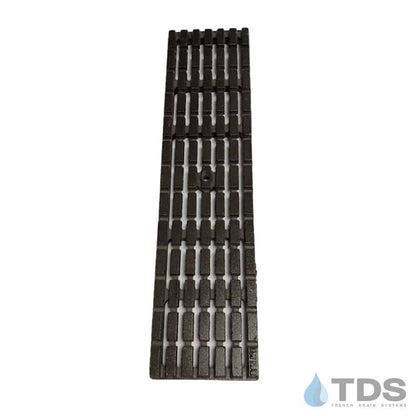

Iron Age IA-PLEX-0520 PLEX ADA Compliant 5"x20" Cast Iron Grates Class B- Raw

Iron Age IA-PLEX-0520 PLEX ADA Compliant 5"x20" Cast Iron Grates Class B- Raw

Skip to product information
1 of 2

Trench Drain Grates

SKU:IA-PLEX-0520

Regular price $167.31 USD
Regular price Sale price $167.31 USD
Sale Sold out
Grate Finish
View full details

Additional Information

  • Grate Width: 4.81" for ULMA
  • Grate Height: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Iron Age Designs
  • System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
  • Grate Load Class: Class B
  • Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External

Description

Iron Age grate PLA5-20 I99HP

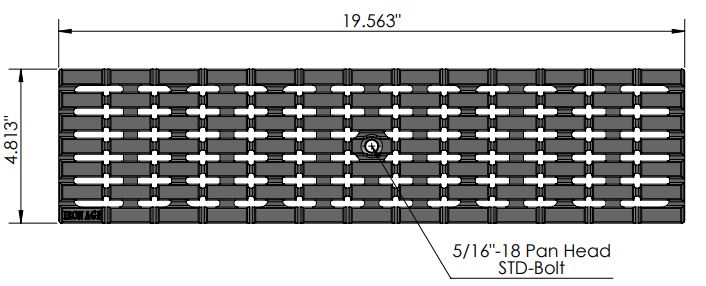

Actual Dimensions: 4.81″ [122mm] x 19.56″ [497mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the ULMA U100, MEArin 100 Channel drain system, and others. The Plex pattern is the perfect accent for patios, courtyards, driveways, and sidewalks. Made in the USA

Available in both a natural finish and a baked-on oil finish.

Specification Sheet for IA-PLEX-0520 Grate

Locking devices are sold separately.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
