Iron Age IA-QUE-0312-HP Class B Que Heel-Proof Cast Iron 3" x 12" Grate
Iron Age IA-QUE-0312-HP Class B Que Heel-Proof Cast Iron 3" x 12" Grate
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 2.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
- Manufacturer: Iron Age Designs
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray, Plastic - (PP, HDPE, PE) - Sand
- Application: Residential, Decorative, Sports Complex - Recreational
Description
Decorative Iron Age grate with the Que pattern and is available in natural raw casting or a Baked-on Oil Finish. The product photo above shows the updated slot design.

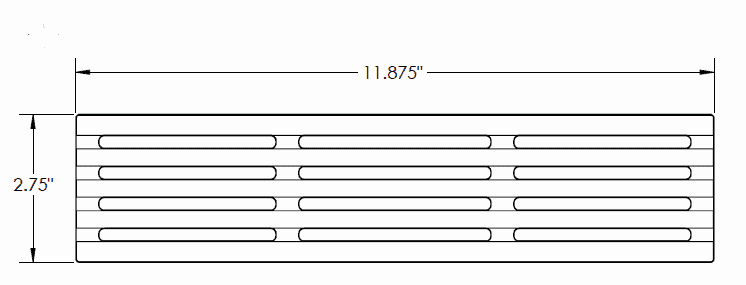

Actual Dimensions: 2.74" [70 mm] x 11.94" [304 mm] x .38" [10 mm]
Specification Sheet for IA-QUE-0312-HP
Designed to fit: NDS Mini Channel
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
