Iron Age IA-RIV-0520 Class B ADA Compliant River Rock Cast Iron 122mm x 500mm Grate

1 1

Trench Drain Grates

SKU:IA-RIV-0520

$174.46 USD

Sale Sold out

Grate Finish Raw Baked on Oil Finish

Quantity

View full details

PRODUCT DOCUMENTATION

RiverRock-5x20

Additional Information

Grate Width: 4.81" for ULMA
Grate Height: 0.75"
Weight: 10.0 lb
Grate Material / Color / Finish: Ductile/Cast Iron - Raw
Manufacturer: Iron Age Designs
System: ABT Polydrain, ACO K100, ACO KS100, D100, U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, M100V
Grate Load Class: Class B
Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External

Description

Iron Age grate RRA5-20I21

Actual Dimensions: 4.81″ [122mm] x 19.44″ [494mm] x .81″ [20.57mm]

Large project? Request a Quote

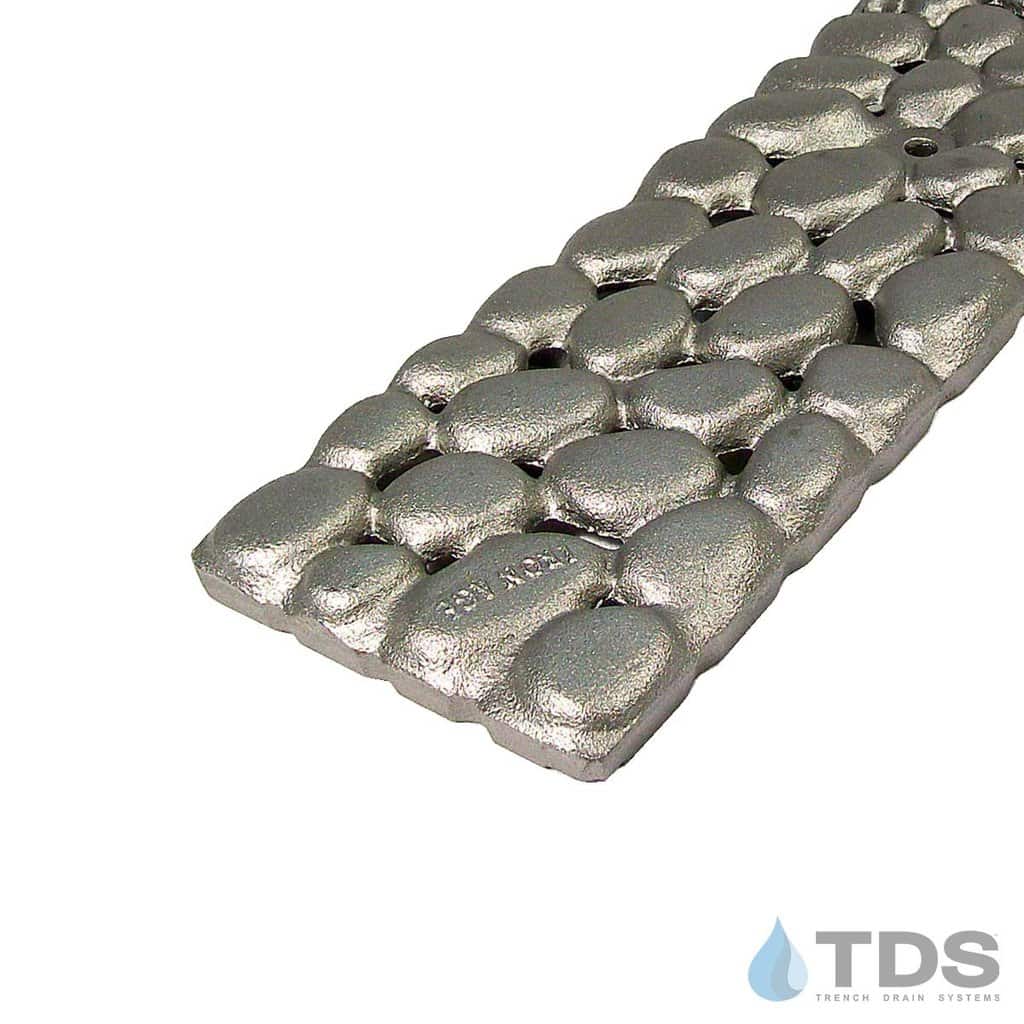

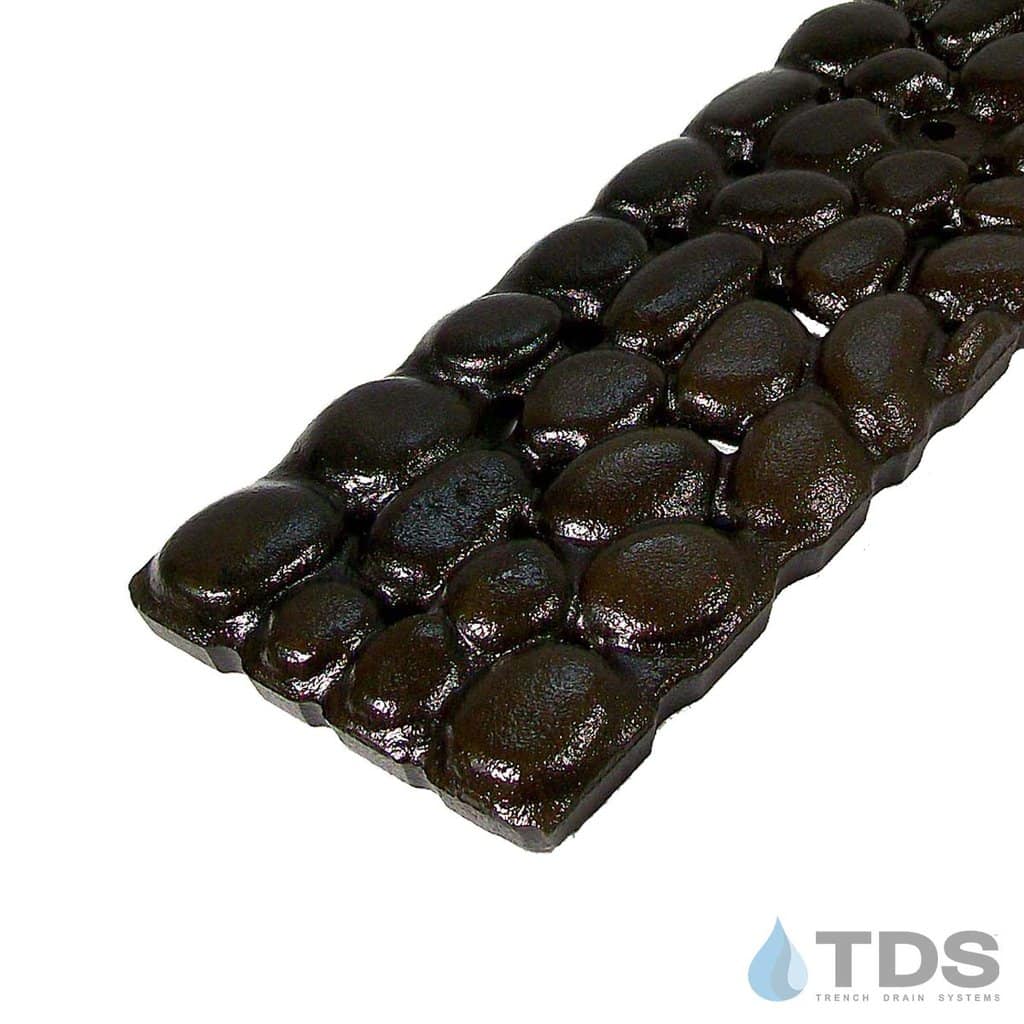

Decorative Iron Age grate with the River Rock pattern and is available in either the raw casting or Baked on Oil Finish.

Specification Sheet IA-RIV-0520

Locking device sold separately.

The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
The 141460 locking device is compatible with the MEArin 100 channel.
The 2811B locking device is compatible with the ABT Polydrain channel.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
