J-4222-04 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry

J-4222-04 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry

  • D&L Foundry J-4222-04 12" x 24" x 1.5" Heelproof ADA Compliant
  • D&L Foundry J-4222-04 12" x 24" x 1.5" Heelproof ADA Compliant
1 4

Trench Drain Grates

DL-J4222-04

$313.76 USD
$313.76 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 12.00"
  • Grate Height: 1.50"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: D & L Foundry
  • System: Foundry
  • Grate Load Class: Class D
  • Channel Material: Cast in Place / EPS Foam, Form Your Own OR Site Built
  • Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
  • Application: Residential, General Purpose Drainage - External, Transportation

Description

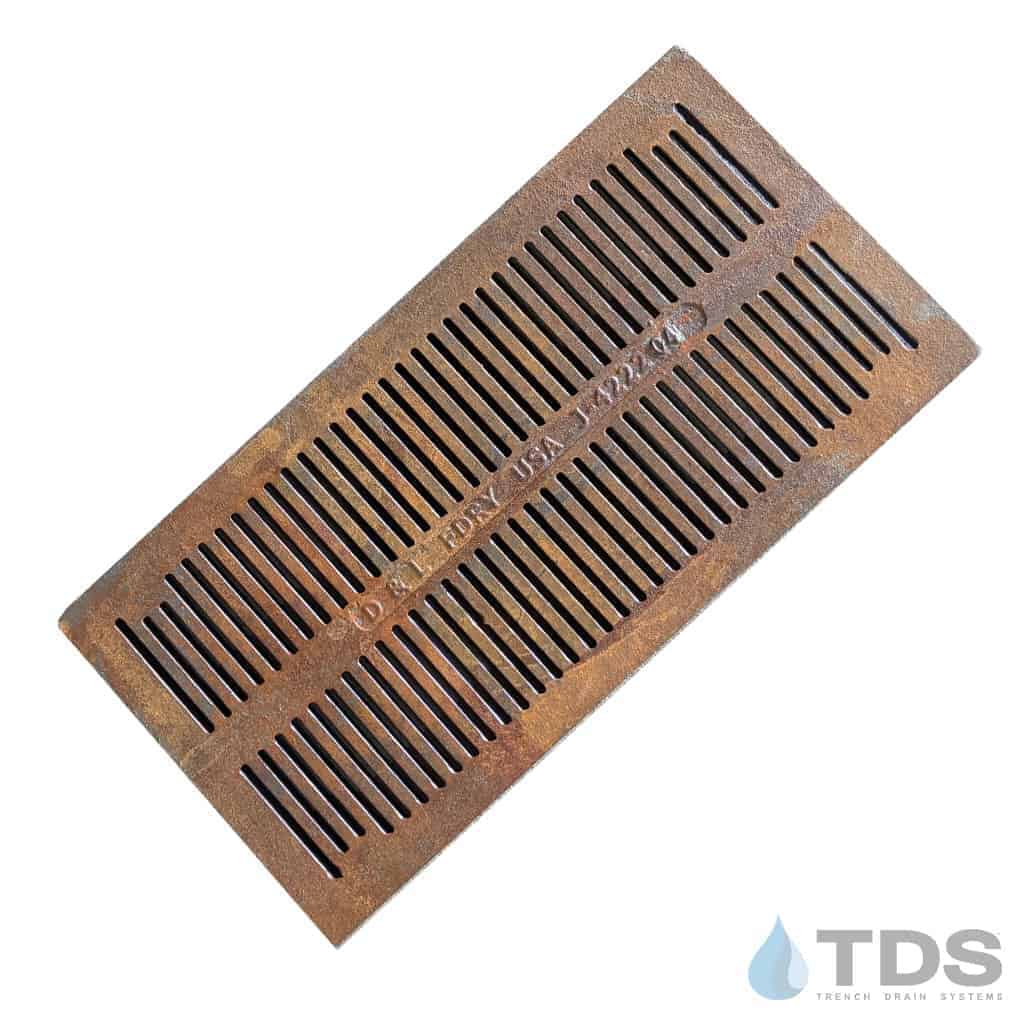

Heavy Duty Gray Iron Grate
Heel Proof & ADA Compliant

Gray Iron heavy duty grate that measures 11.88" x 23.75" x1.5'. Grate openings/flow areas measure 4-1/4" x 1/4". Bottom 'leveling feet' can be ground for proper height adjustment.

Each individual grate weighs 49 lbs each. ASTM A48 CL35B, Load Class D, H-20. Heel Proof and ADA compliant.

Made in the USA

NOTE: Due to the weight of this product, expect higher than normal shipping costs. Contact Customer service to explore possible alternatives (ground vs. freight). All raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Specification Sheet for J-4222-04
