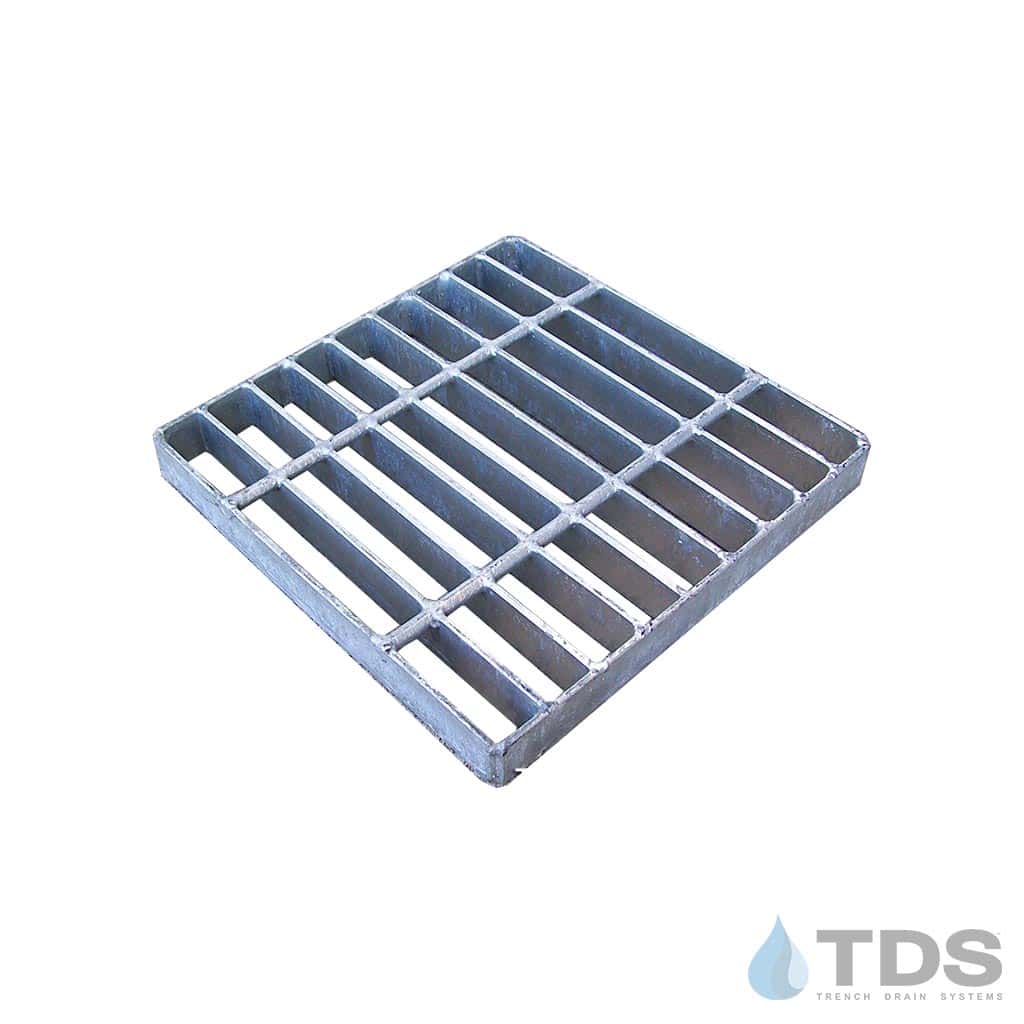

NDS 1215 Class C HD Bar Galvanized 12" x 12" Grate
NDS 1215 Class C HD Bar Galvanized 12" x 12" Grate
Additional Information
- Grate Width: 12.0" x 12.0" for NDS 1200 Series
- Grate Height: 1.125"
- Weight: 6.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: NDS
- System: 1200 Series
- Grate Load Class: Class C
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Galvanized steel bar catch basin grates from NDS®. Class C load rated.
Large project? Request a Quote
The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimizing the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 12 inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.
Actual Dimensions: 11-5/8" x 11-5/8" x 1-1/8"
Load Class C (when properly installed)
Capacity: 348 GPM (Gallons per Minute)
Open Surface Area: 113.78 square inches
Grate Openings: 3/4"
