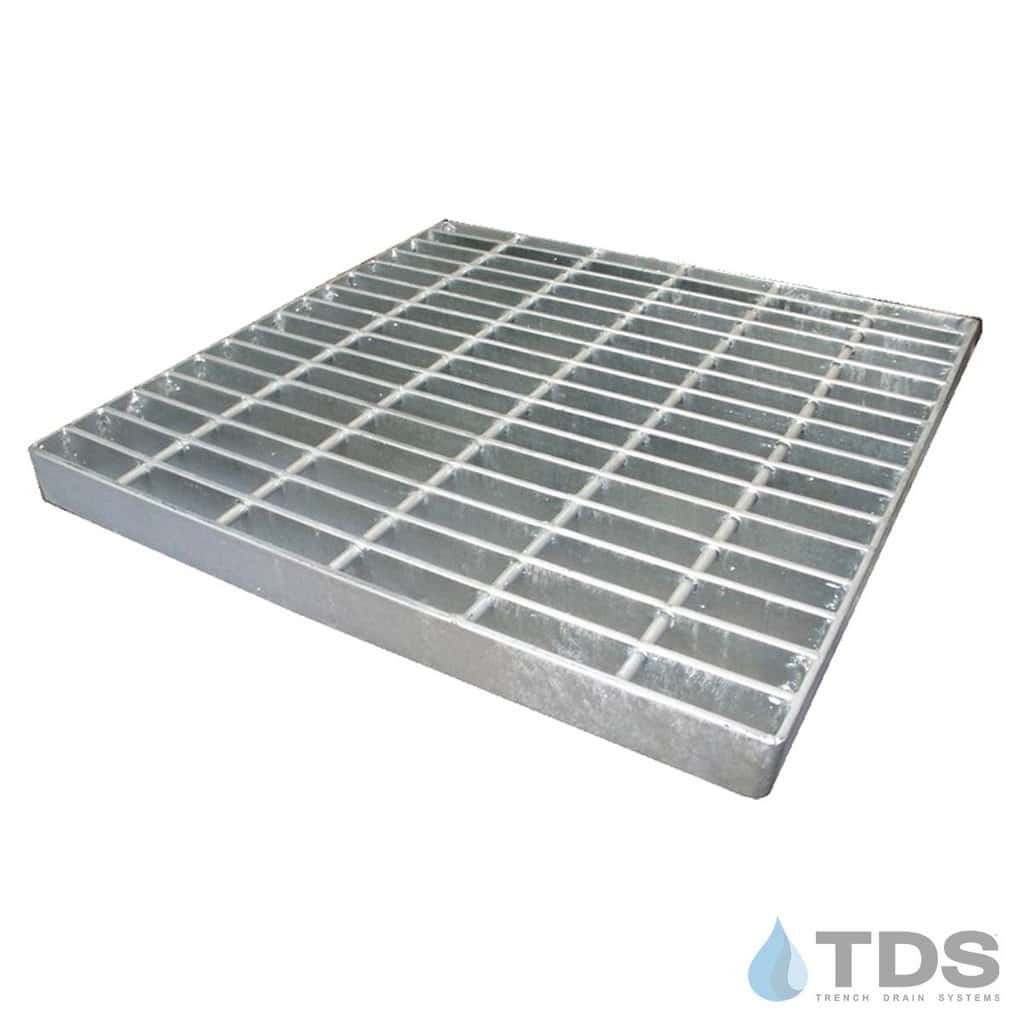

NDS 2415 Class C HD Bar Galvanized 24" x 24" x 2" Grate
NDS 2415 Class C HD Bar Galvanized 24" x 24" x 2" Grate
Additional Information
- Grate Width: 24.0" x 24.0" for NDS 2400 Series
- Grate Height: 2.00"
- Weight: 63.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: NDS
- System: 2400 Series
- Grate Load Class: Class C
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External, Transportation
Description
The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimizing the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 24 inch NDS catch basin to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.
Actual Dimensions: 23-3/4" x 23-3/4" x 2"
Load Class C (when properly installed)
Capacity: 1292 GPM (Gallons per Minute)
Open Surface Area: 422.45 square inches
Grate Openings: 1-1/4″
