NDS 552B Class A ADA Compliant Slotted Satin Brass 3" x 12" Grate
NDS 552B Class A ADA Compliant Slotted Satin Brass 3" x 12" Grate
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 1.25 lb
- Grate Material / Color / Finish: Bronze - Brushed
- Manufacturer: NDS
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray, Plastic - (PP, HDPE, PE) - Sand
- Application: Residential, Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

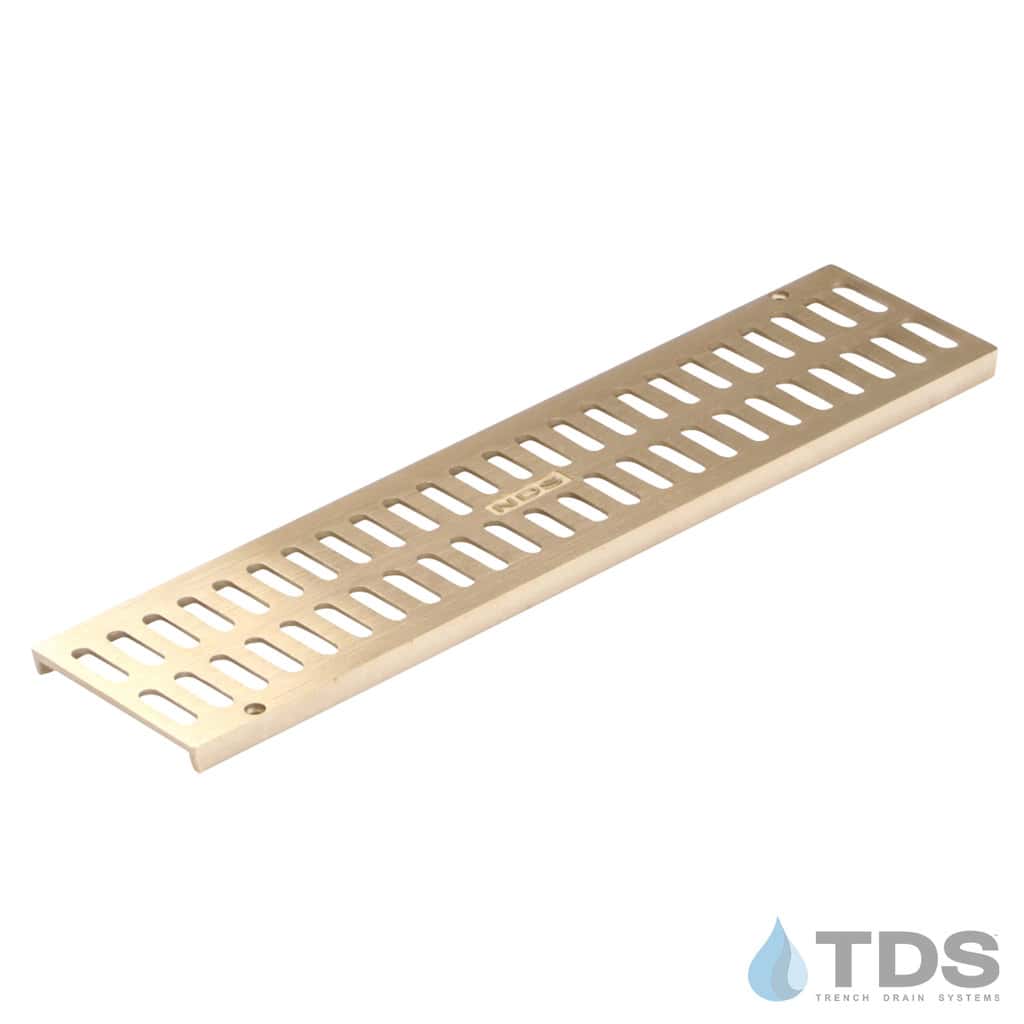

NDS Brass Slotted Grate
Large project? Request a Quote
Looking for an inexpensive alternative? Click Here
NDS® Mini Channel slotted brass grates are ADA-compliant and excellent for pedestrian applications. They are designed to fit the NDS Mini Channel drain system and are rated at a Load Class A. Commonly referred to as a 3" system, the grates are nominally 2.81" and have an open surface area of 9.20 square inches (28.14 GPM) per foot.
Two screw holes per grate for NDS529B fasteners (not included).
Actual Dimensions: 2.81" W x 12" L x .25" H
Designed to fit: NDS Mini Channel
