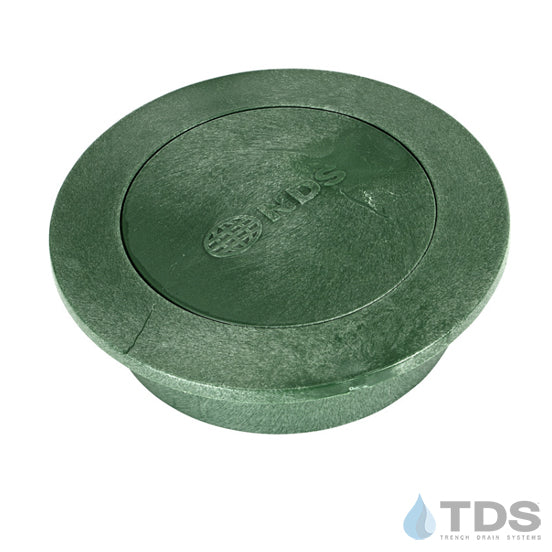

NDS 620 Pop-Up Emitter for 6" SDR pipe
NDS 620 Pop-Up Emitter for 6" SDR pipe
Additional Information
- Grate Width: 6.00" Dia
- Weight: 0.5 lb
- Grate Material / Color / Finish: Plastic/HDPE - Green
- Manufacturer: NDS
- System: Point Drain
- Grate Load Class: Class A, Class B
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - External
Description
The 6" NDS 620 pop-up emitter helps divert and release runoff to water-safe areas away from structures, easily eroded landscapes, and poor drainage areas. This product is wholesale grade and spring-loaded, ensuring closure after rainfall. Retail-grade versions of this product do not include this feature.

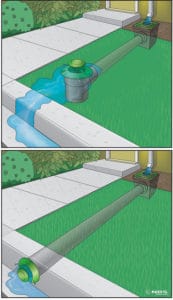

This special design permits captured water by catch basins, channel drains, Flo-Well, downspouts, or roof gutter systems to flow through a drainage pipe away from structural foundations. For example, water can be routed from a low area to a water-safe area such as a curbside drainage system.
The emitter opens with a negligible amount of hydrostatic pressure and then closes again once the pressure eases. Since the Emitter is closed during dry weather, debris and/or rodents cannot enter the drain pipes.
Features
-
Overall TOP width 7-15/16"
-
Polyolefin material
- UV inhibitor
-
Spring automatically retracts
-
88 G.P.M.
-
Fits 6" Sewer and Drain Fittings
-
Can be installed in vertical applications
-

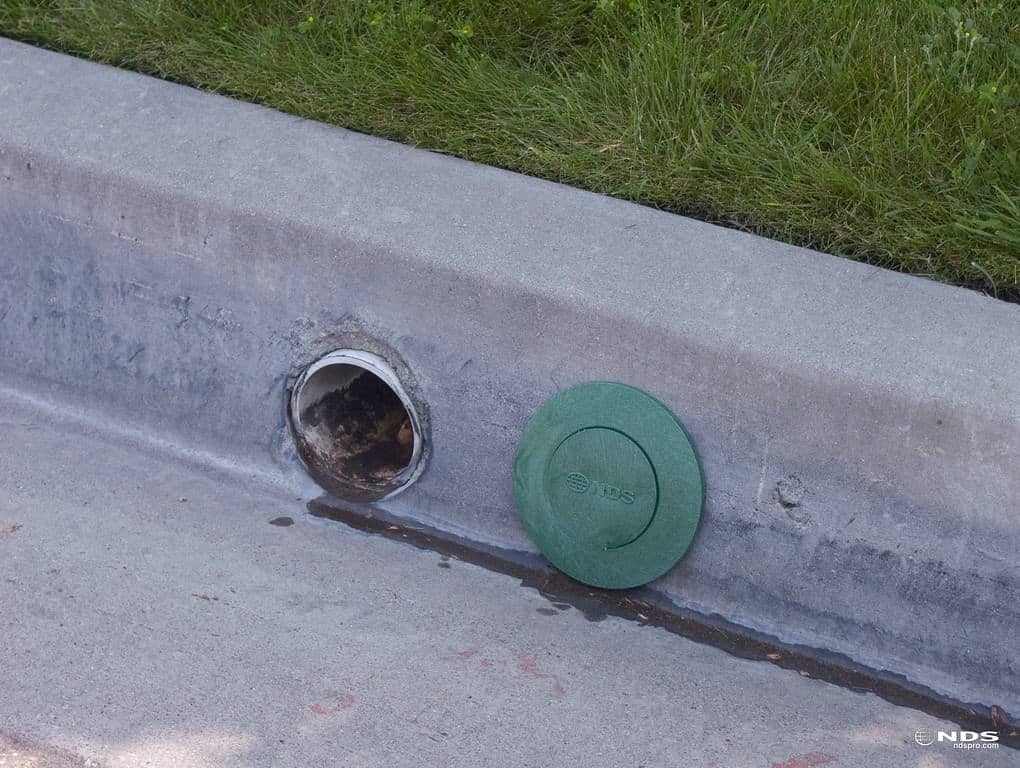

Ideal for discharging water from retaining walls and street curbs
