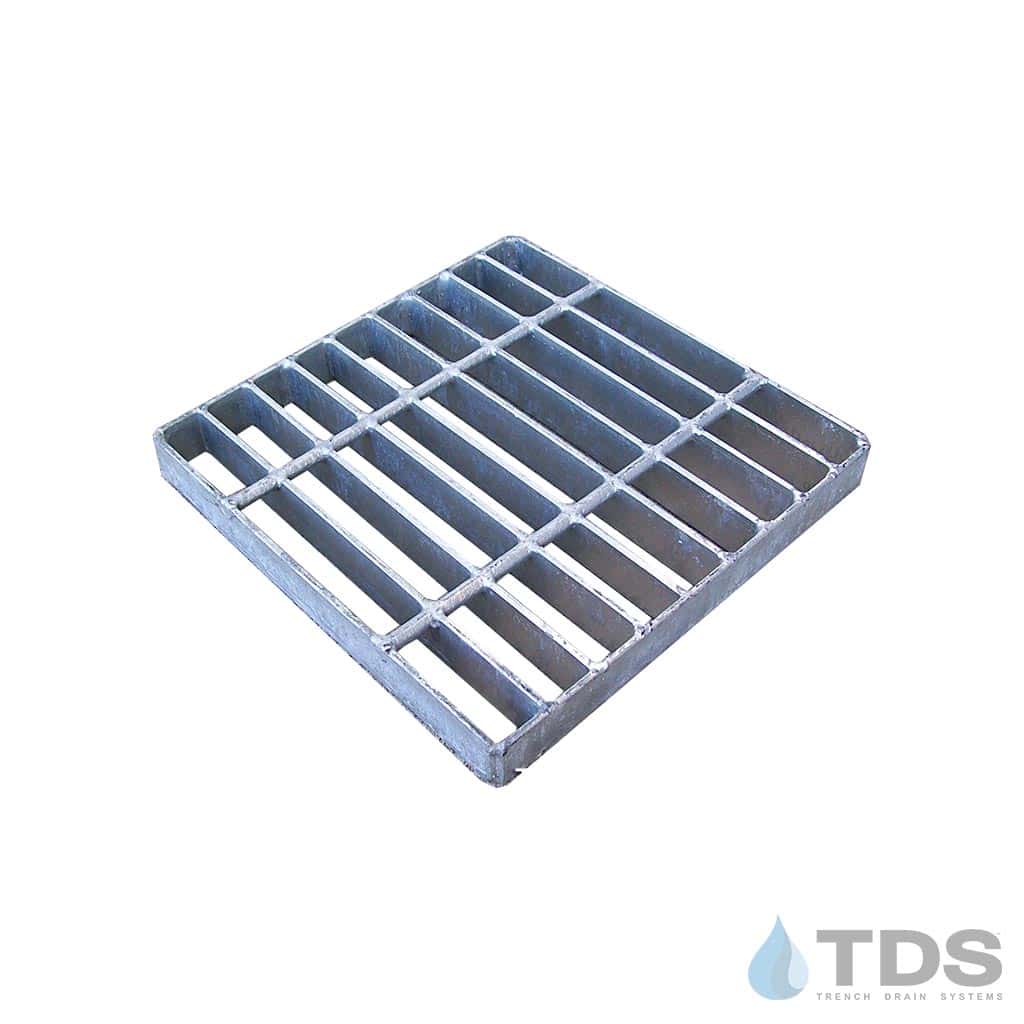

NDS 915 Class C HD Bar Galvanized 9" x 9" Grate
NDS 915 Class C HD Bar Galvanized 9" x 9" Grate
Additional Information
- Grate Width: 9.0" x 9.0" for NDS 900 Series
- Grate Height: 1.125"
- Weight: 3.8 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: NDS
- Grate Load Class: Class C
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational
Description
The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 9-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.
Actual Dimensions: 8-3/4" x 8-3/4" x 1-1/8"
Load Class C (when properly installed)
Capacity: 189.48 GPM (Gallons per Minute)
Open Surface Area: 61.94 square inches
Grate Openings: 3/4″
