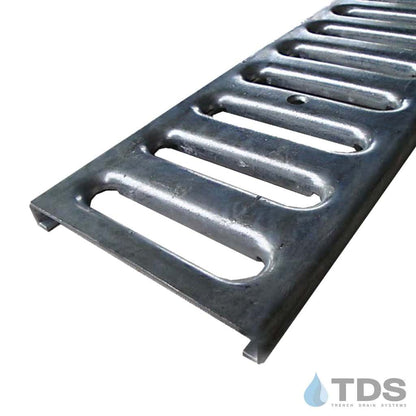

NDS DS-221 Class B Slotted Galvanized 6" x 24" Grate
NDS DS-221 Class B Slotted Galvanized 6" x 24" Grate
Additional Information

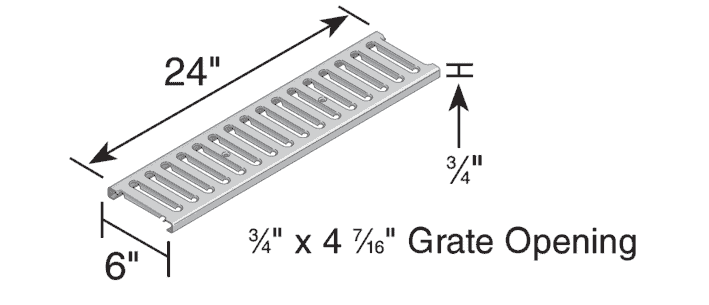

- Grate Width: 6.00" for NDS DuraSlope
- Grate Height: 0.75"
- Weight: 6.64 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: NDS
- System: Dura Slope
- Grate Load Class: Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Replace your Dura Slope plastic grates with galvanized grates.
Large project? Request a Quote
Galvanized slotted grate for the NDS® Dura Slope trench drain system. Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph. Class B Load Rating: 61-175 psi.
Locking Devices (2 per grate) sold separately: NDS-629 & DS-122
