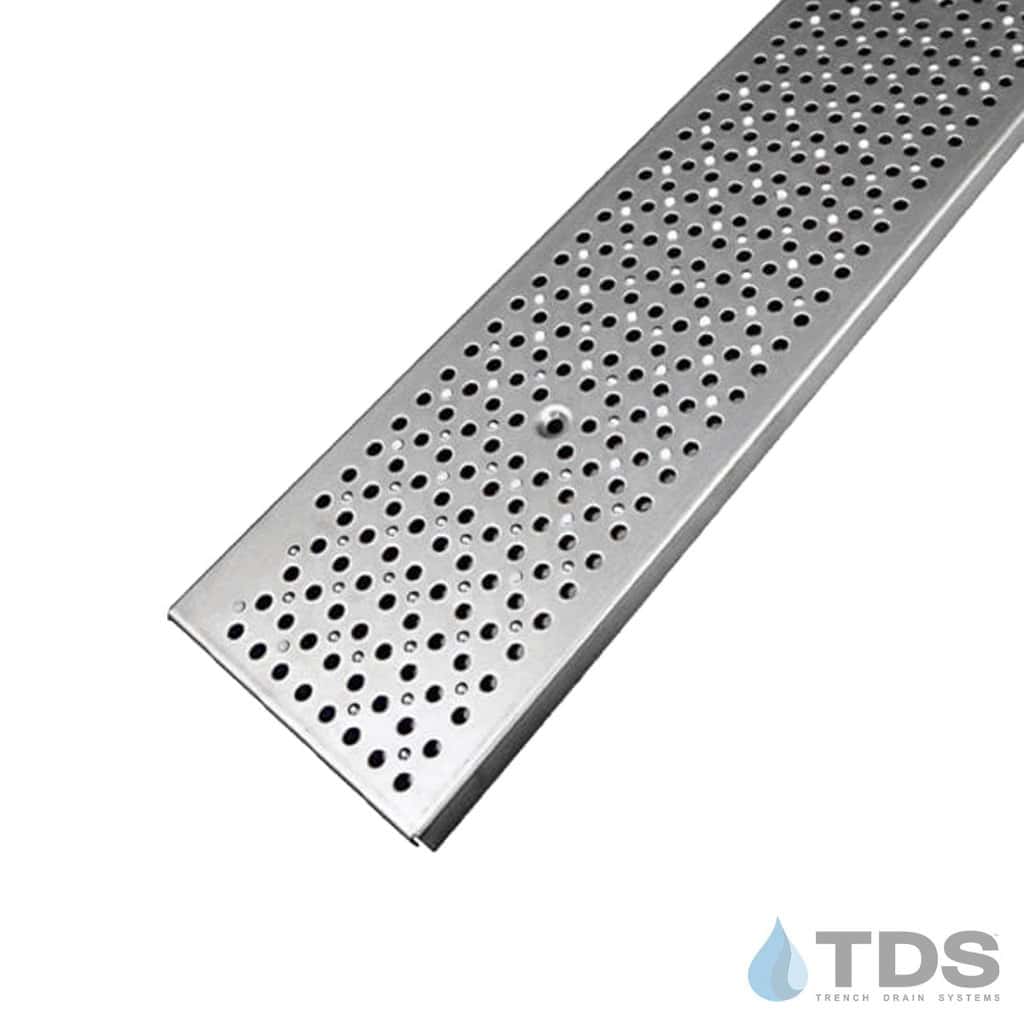

NDS DS-226 Class A ADA Compliant Perforated Stainless 6" x 24" Grate
NDS DS-226 Class A ADA Compliant Perforated Stainless 6" x 24" Grate
Additional Information
- Grate Width: 6.00" for NDS DuraSlope
- Grate Height: 0.75"
- Weight: 3.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: NDS
- System: Dura Slope
- Grate Load Class: Class A
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Replace your Dura Slope plastic grates with stainless steel.
Large project? Request a Quote
Stainless perforated grate for the NDS® Dura Slope trench drain system. ADA Compliant and heel proof. Pedestrian traffic only. Includes 2 holes for locking devices (not included). Class A Load Rating - Pedestrian only.
Stainless steel is 14 gauge and is 304 grade.
Actual Dimensions: 6" [152 mm] x 24" [610 mm] x .75" [19 mm]
Locking Devices (2 per grate) sold separately: NDS-629 & DS-122
