NDS DS-601 Class C Weave Ductile Iron 6" x 24" Grate - RAW
NDS DS-601 Class C Weave Ductile Iron 6" x 24" Grate - RAW
Additional Information
- Grate Width: 6.00" for NDS DuraSlope
- Grate Height: 0.75"
- Weight: 14.5 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: NDS
- System: Dura Slope
- Grate Load Class: Class C, Class D
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Large project? Request a Quote

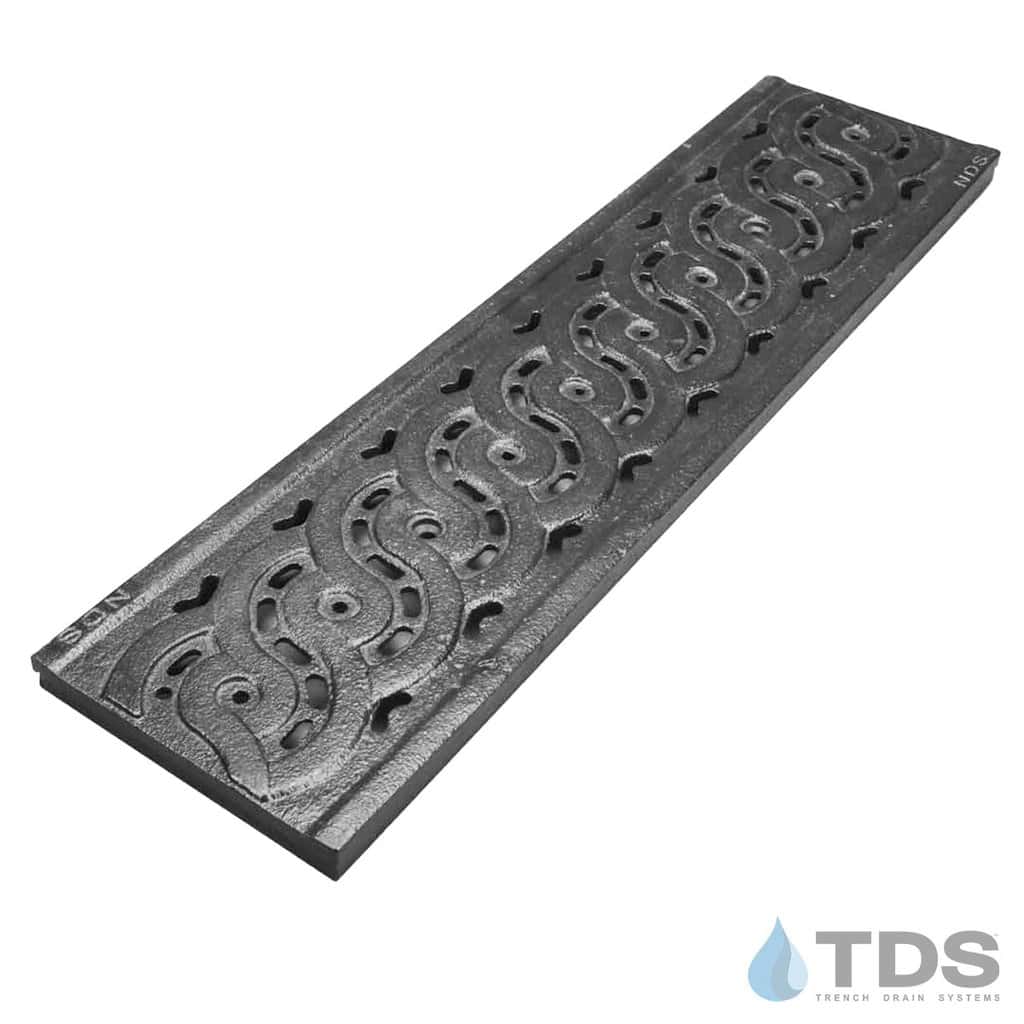

Cast Iron decorative grate in a Weave pattern for the NDS® Dura Slope trench drain system. Open surface area 6.75 square inches per foot. Class C: Loads 176-325 psi. Recommended for heavy-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. H-20 rated.
Locking Devices (2 per grate) sold separately: NDS-629 & DS-122
- Width 6"
- Length 24"
- Height 3/4"
Not a regularly stocked item. Please allow for extra days for delivery.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
