NDS Mini Channel 554CI Botanical Cast Iron Class B ADA Compliant Grate

NDS Mini Channel 554CI Botanical Cast Iron Class B ADA Compliant Grate

Skip to product information
1 of 2

Trench Drain Grates

SKU:NDS554CI

Regular price $82.84 USD
Regular price Sale price $82.84 USD
Sale Sold out
Finish
View full details

Additional Information

  • Grate Width: 2.75" for NDS Mini Channel
  • Grate Height: 0.38"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw, Ductile/Cast Iron - Baked on Oil Finish
  • Manufacturer: NDS
  • System: Mini Channel
  • Grate Load Class: Class A, Class B
  • Channel Material: Plastic - (PP, HDPE, PE) - Gray, Plastic - (PP, HDPE, PE) - Sand
  • Channel Frame / Edging: Frame - None, Edging - None
  • Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External

Description

NDS® Mini Channel Botanical cast iron decorative grates are available in both a natural/raw or baked-on oil finish. Commonly referred to as 3", these grates are nominally 2.75" and have an open surface area of 4.93 square inches (15.08 GPM) per foot.

Four screw holes per grate for NDS846 fasteners (not included).

Actual Dimensions: 2.74"W x 12" L x 0.467" H

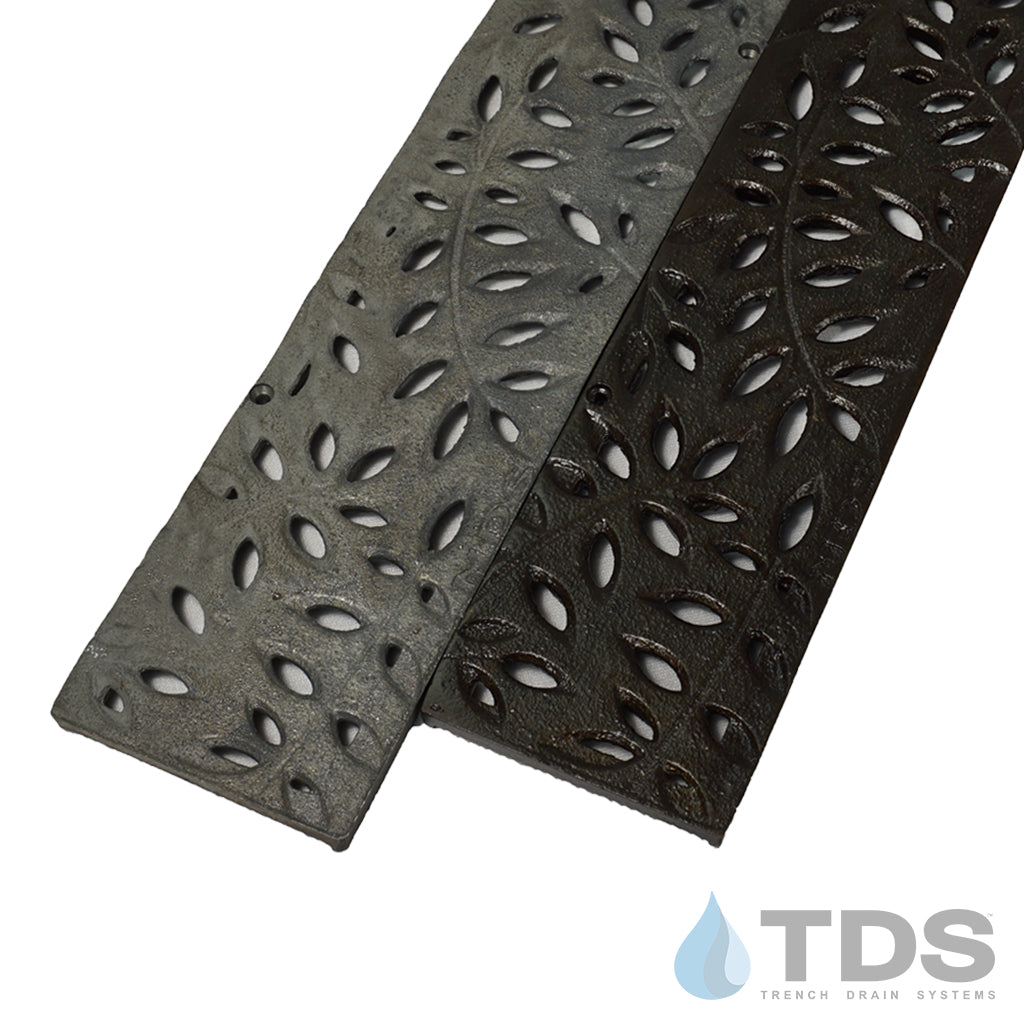

Variations Available:

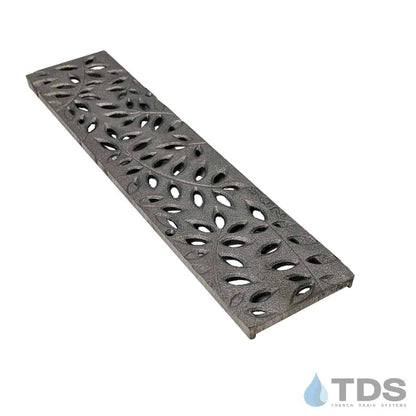

• 554CI- Raw Cast Iron

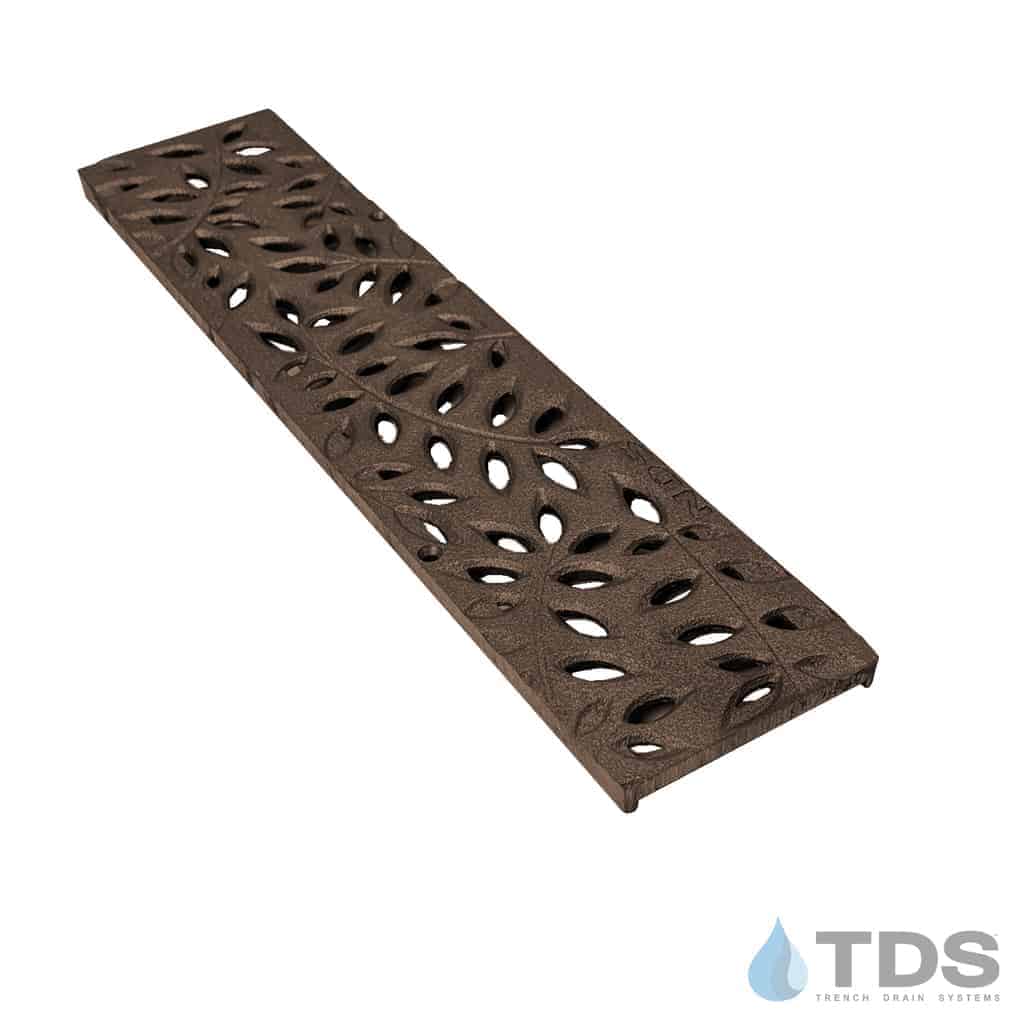

• 554CI-BF - Baked-on Oil Finish

Large project? Request a Quote

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown. With the Baked-on Oil Finish, the grates will still minutely rust, but not to the same extreme as a raw cast iron grate.
