NDS Mini Channel Botanical Polyolefin ADA Compliant Class B Grate - Single
NDS Mini Channel Botanical Polyolefin ADA Compliant Class B Grate - Single
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38" with T-Top
- Weight: 0.5 lb
- Grate Material / Color / Finish: Plastic/HDPE - Black, Plastic/HDPE - Gray, Plastic/HDPE - Sand
- Manufacturer: NDS
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Sand, Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

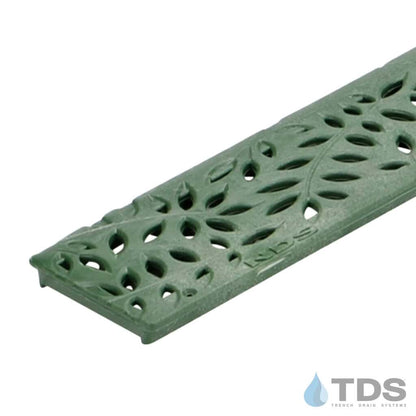

NDS® Mini Channel Botanical plastic decorative grates are UV-protected, High-Density Polyethylene (HDPE). These grates are chemically resistant, rustproof, and low-maintenance. Commonly referred to as a 3" system, the grates are nominally 3.08" and have an open surface area of 5.44 square inches (16.64 GPM) per foot.
Four screw holes per grate for NDS529 fasteners (not included).
Specification Sheet - NDS Slotted Grates

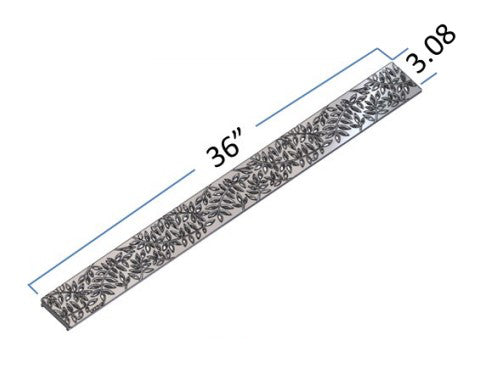

Actual Dimensions: 3.08" W x 36" L
Grates are made in the USA

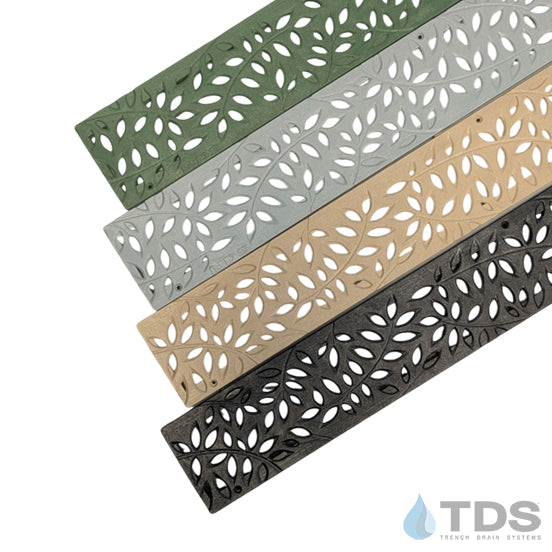

Variations Available:

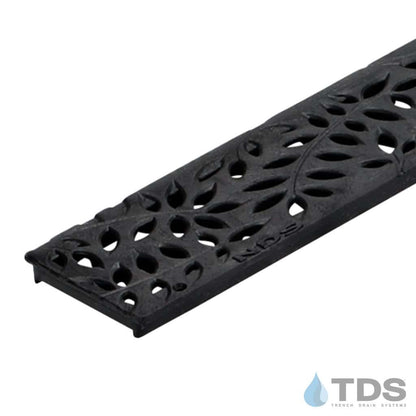

• 554 - Black

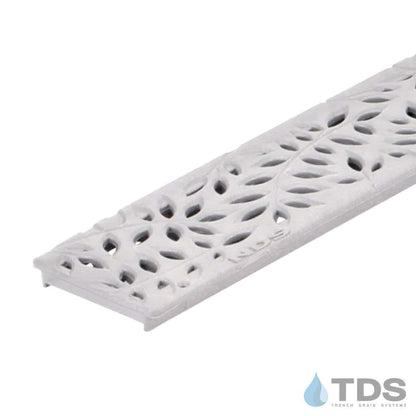

• 554GY- Gray

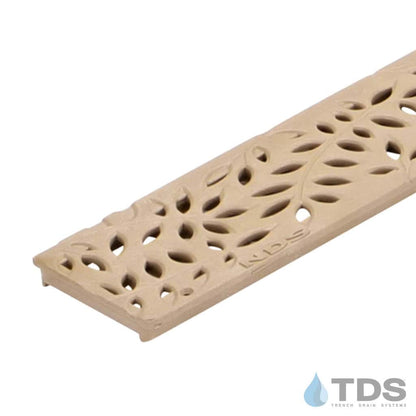

• 554S- Sand
Large project? Request a Quote
NOTE: These NDS® grates are designed for the Mini Channel trench drain system. If you are replacing slotted grates, be aware that the decorative grates are a full 3 inches wide and extend over the top of the channel edge
