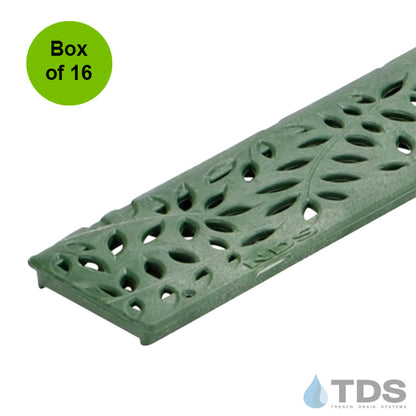

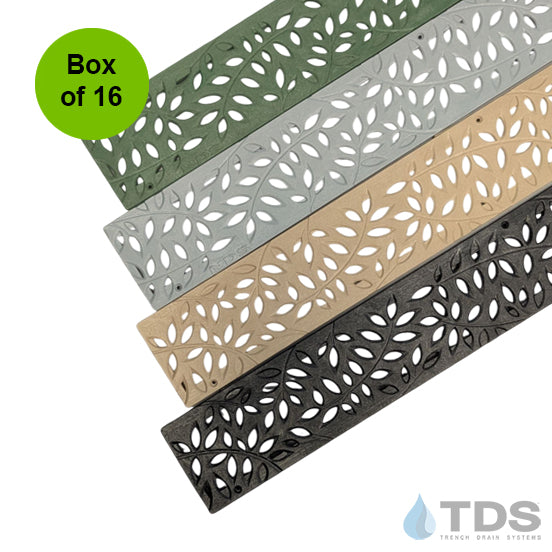

NDS Mini Channel Botanical Polyolefin Class B ADA Compliant Grate - Box of 16
NDS Mini Channel Botanical Polyolefin Class B ADA Compliant Grate - Box of 16
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38" with T-Top
- Weight: 13.6 lb
- Grate Material / Color / Finish: Plastic/HDPE - Sand, Plastic/HDPE - Black, Plastic/HDPE - Gray
- Manufacturer: NDS
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray, Plastic - (PP, HDPE, PE) - Sand
- Application: Residential, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
NDS® Mini Channel Botanical plastic decorative grates are UV-protected, High-Density Polyethylene (HDPE). These grates are chemically resistant, rustproof, and low-maintenance. Commonly referred to as a 3" system, the grates are nominally 3.08" and have an open surface area of 5.44 square inches (16.64 GPM) per foot. Box of 16.
Four screw holes per grate for NDS529 fasteners (not included).
Specification Sheet - NDS Slotted Grates
Actual Dimensions: 3.08" W x 36" L
Grates are made in the USA
Box of 16 Variations Available:

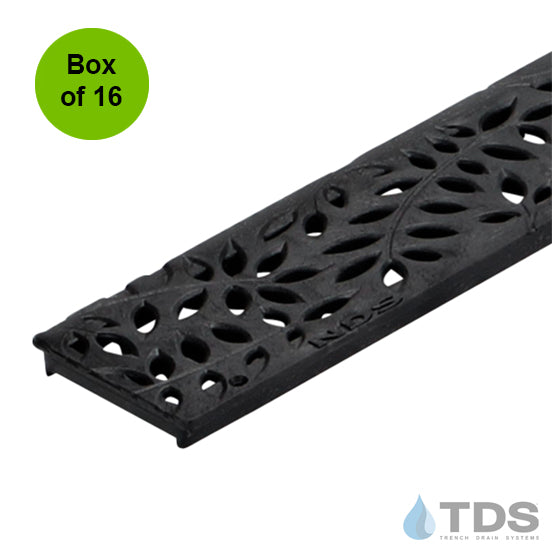

• 554 - Black

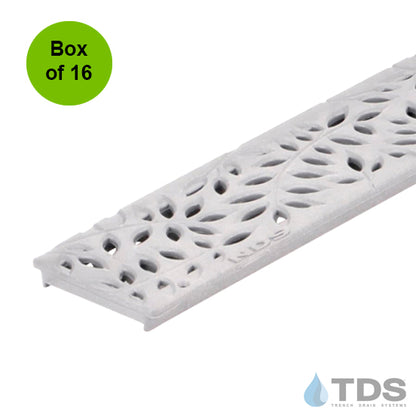

• 554GY- Gray

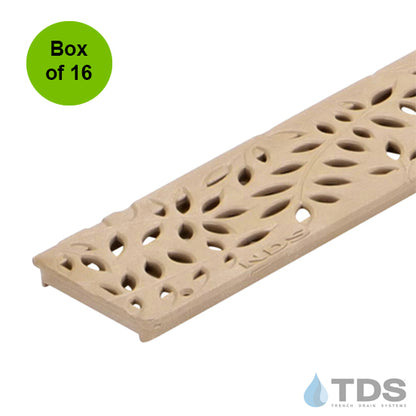

• 554S- Sand
Large project? Request a Quote
NOTE: These NDS® grates are designed for the Mini Channel trench drain system. If you are replacing slotted grates, be aware that the decorative grates are a full 3 inches wide and extend over the top of the channel edge
