NDS Spee-D Slotted HDPE Class B ADA Compliant Grate - Single
NDS Spee-D Slotted HDPE Class B ADA Compliant Grate - Single
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.13" for NDS Spee-D
- Grate Height: 0.75"
- Weight: 0.1 lb
- Grate Material / Color / Finish: Plastic/HDPE - White, Plastic/HDPE - Black, Plastic/HDPE - Green, Plastic/HDPE - Brick Red, Plastic/HDPE - Sand, Plastic/HDPE - Gray
- Manufacturer: NDS
- System: Spee-D
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
NDS® 4" Spee-D Channel slotted plastic grates are UV-protected High-Density Polyethylene (HDPE). These grates are chemically resistant, rustproof, and low-maintenance. Commonly referred to as a 4", the grates are nominally 4-1/8" and have an open surface area of 16.92 square inches (146.36 GPM) per foot.
Four screw holes per grate for NDS229 fasteners (not included).

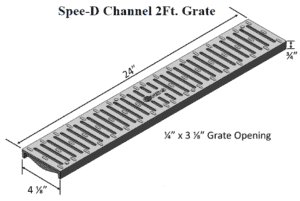

Actual Dimensions: 4-1/8" x 24" x 3/4"
Grates are made in the USA
Specification Sheet - NDS Spee-D Slotted Grates
Variations Available:

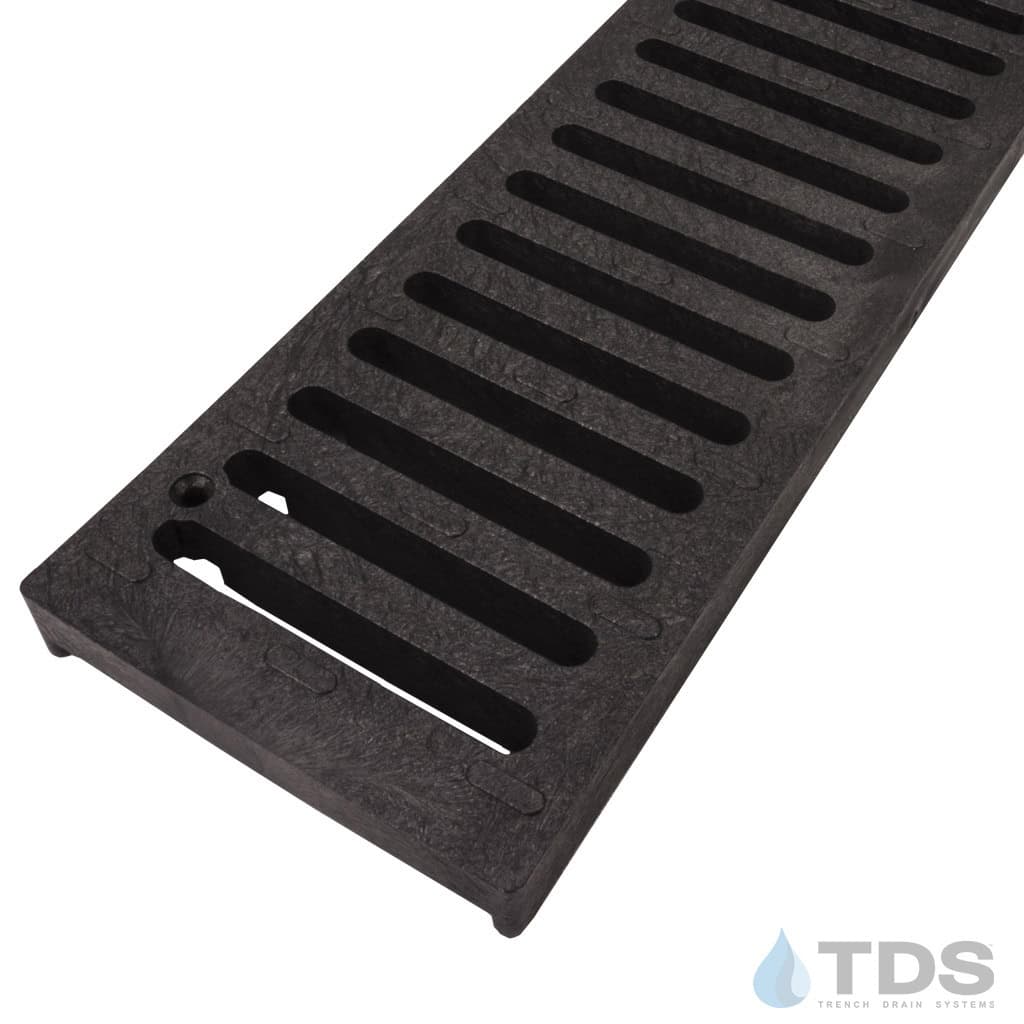

• 243- Black

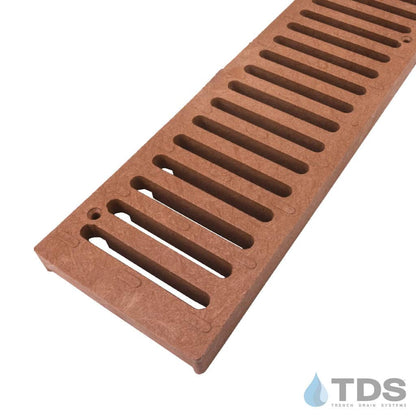

• 251- Brick Red
• 241- Gray

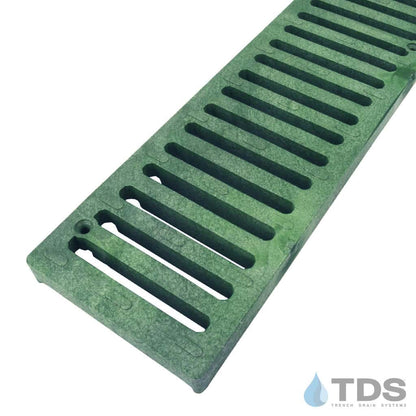

• 242- Green

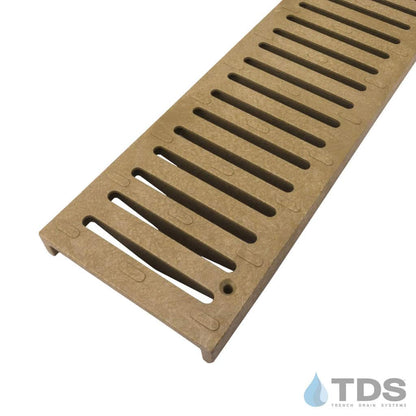

• 244- Sand

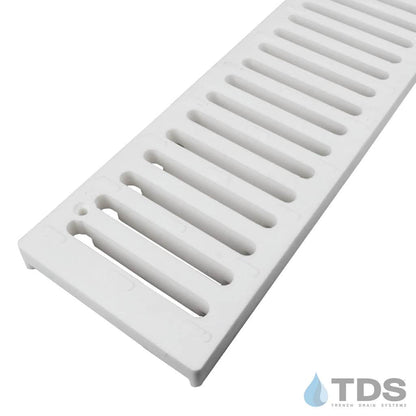

• 240- White
