POLYCAST® DG0643 Slotted Ductile Iron Catch Basin Grate | Load Class E
POLYCAST® DG0643 Slotted Ductile Iron Catch Basin Grate | Load Class E

Additional Information
- Grate Width: 12" x 24" for Hubbell Polycast
- Grate Height: 1.125"
- Weight: 63.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- System: POLYCAST 500, POLYCAST 600, POLYCAST 700
- Channel Material: Polymer Concrete - Polyester
- Channel Frame / Edging: Frame - Ductile Iron
- Application: Residential, General Purpose Drainage - External, Transportation
Description

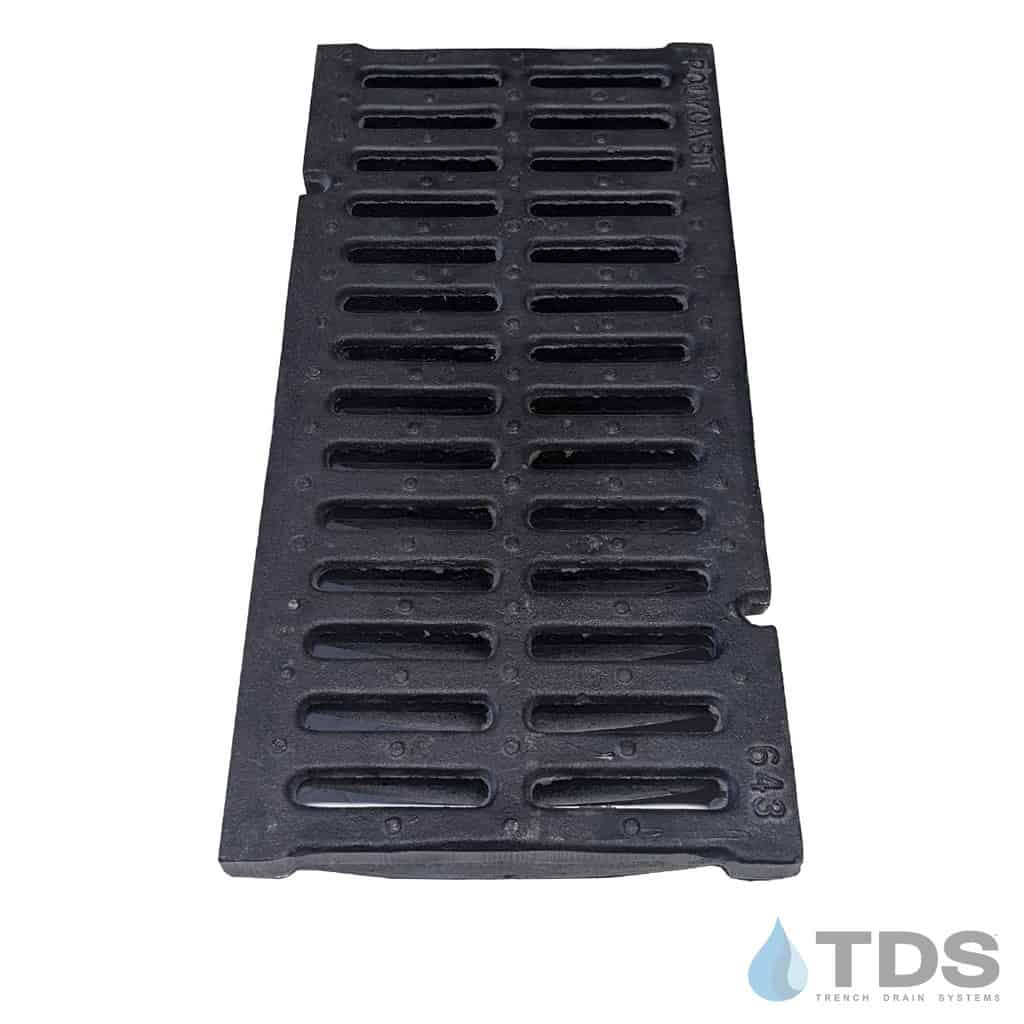

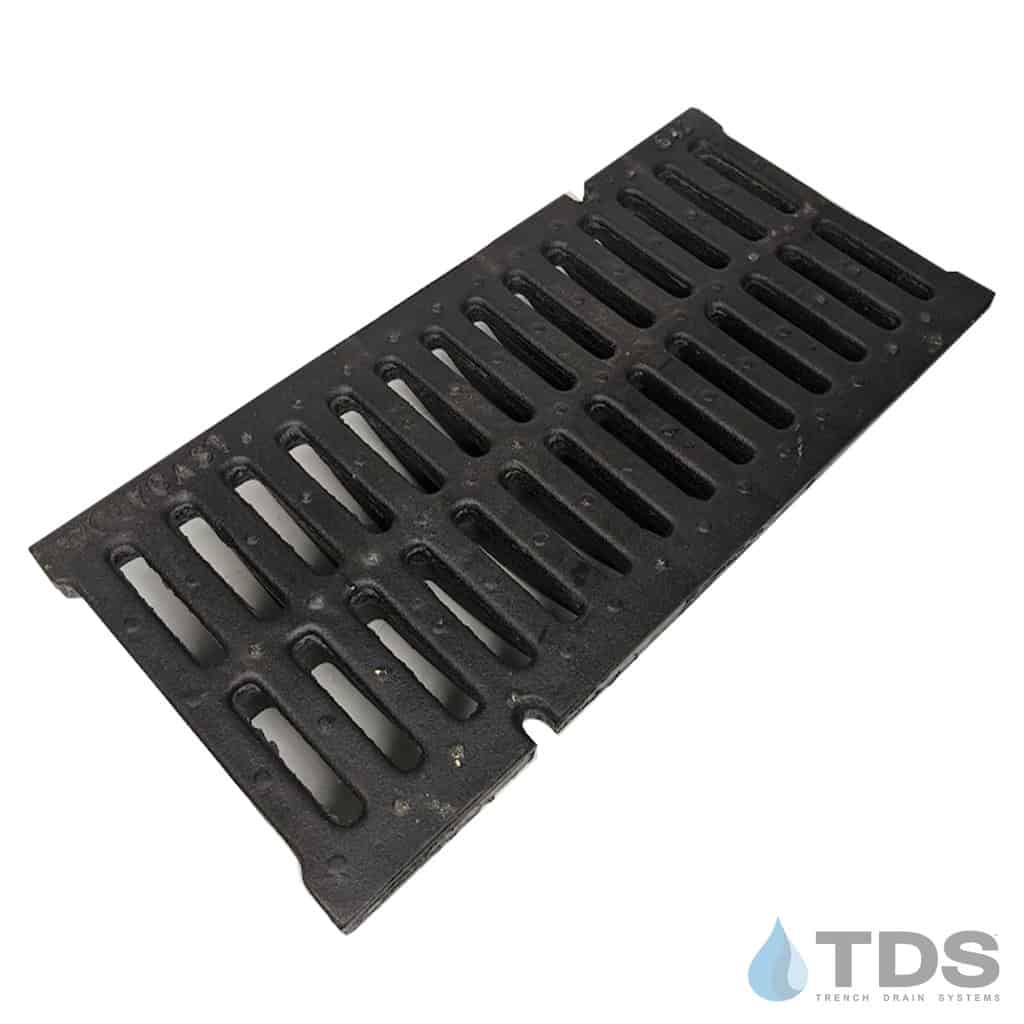

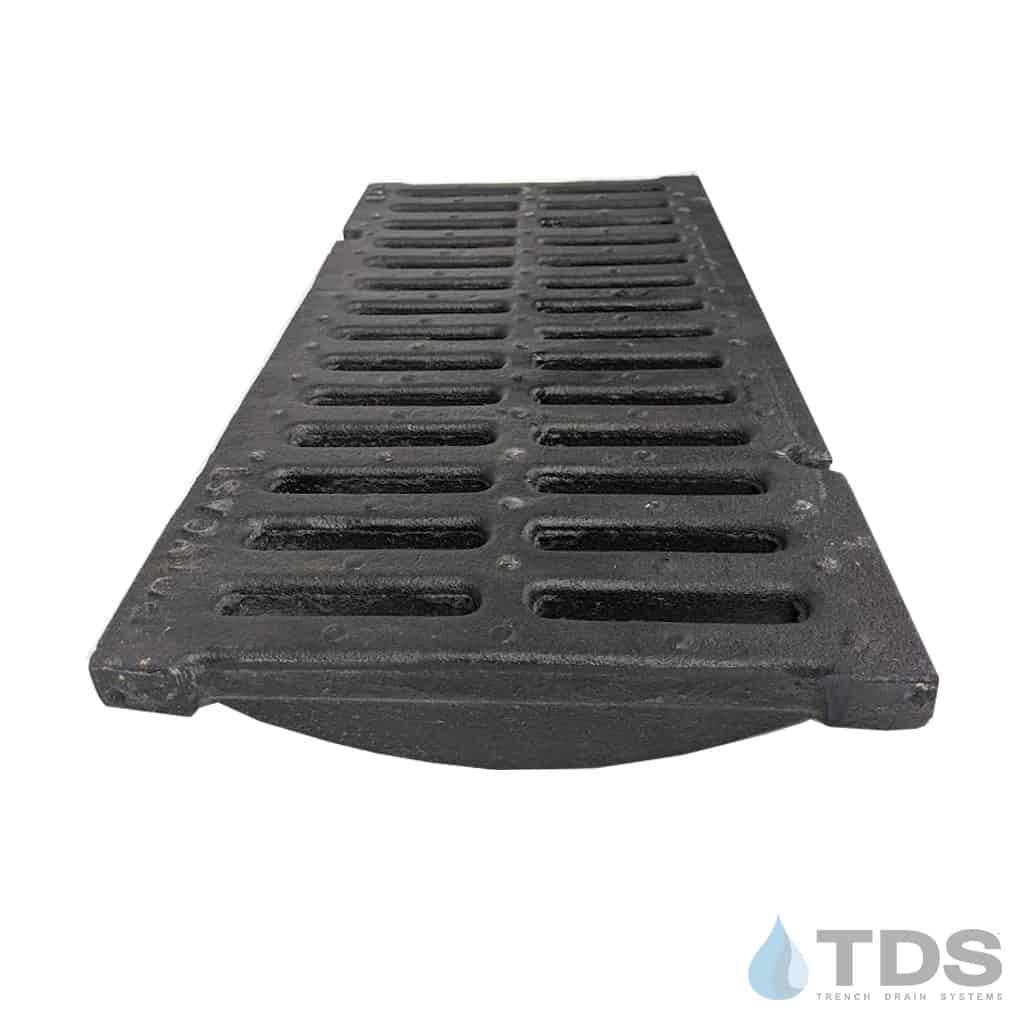

This heavy-duty slotted ductile iron grate is for use with POLYCAST®651/751 12-inch Catch Basins. Made in the USA. It has two (2) bolt-down holes (bolts not included).

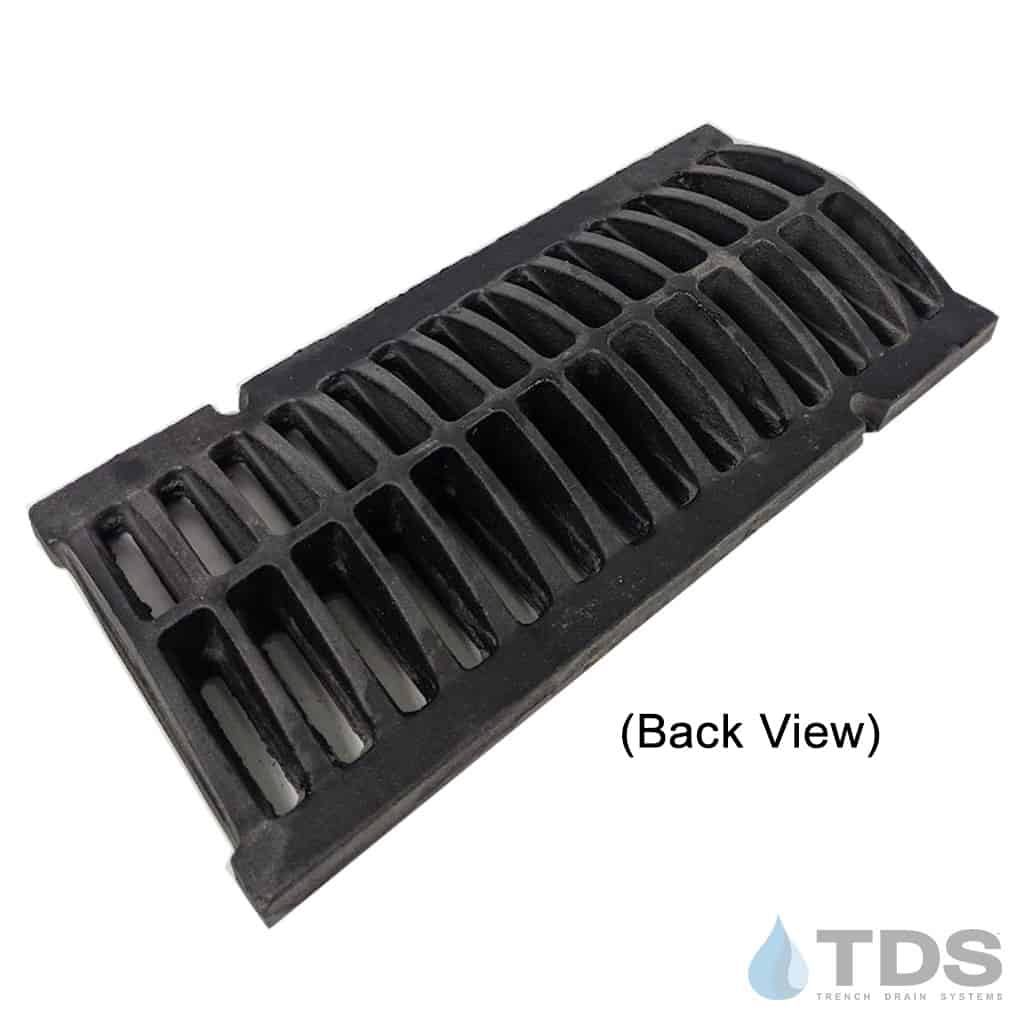

Actual Dimensions: 10-3/4" x 22-3/4" x 1-1/8" (not including the reinforcement fins on the bottom of the grate)
Open Area: 32 sq inches per linear foot. Slot Size: 5/8" wide
Meets Load Class E rating requirements, ideal for any high-traffic, heavy load applications such as:
